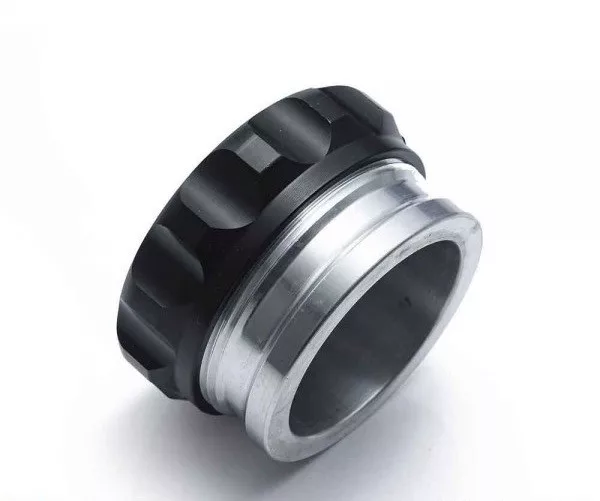

EPMAN weld-on aluminum fuel filler neck, black, 2.5" (63.5mm)
6061-T6 aluminum weld-on fuel filler neck with a black screw cap and rubber sealing ring. 2.5" (63.5mm) size option in a non-vented design for custom fuel and fabricated metal tanks.
Net price: 12 €
Key Features & Benefits – EPMAN weld-on aluminum fuel filler neck, black, 2.5" (63.5mm)
The EPMAN weld-on aluminum fuel filler neck, black, 2.5" (63.5mm) is made to be welded into a tank wall so you can position the fill point to match your layout. It suits fuel and other fabricated metal tanks where a sealed screw-cap closure is needed.
The body is 6061-T6 aluminum, sealed by a screw cap with a rubber sealing ring. The cap has a knurled edge for grip, and the unit is a non-vented design.
When is this useful?
It fits builds where you want a compact weld-in fill point and need the neck size to match your hose or tube routing, with predictable packaging around the cap.
Technical specs
- Product code: EPYXG200M25BK
- Material: 6061-T6 aluminum
- Design: weld-on filler neck, screw cap, rubber sealing ring
- Type: non-vented
- Color: black cap
- Neck OD: 63.5 mm (2.5")
- Neck ID: 45.0 mm
- Length including cap: 35 mm
Selection & installation tips
- Hose/tube match: Match the 63.5 mm neck OD to your hose/tube and clamp choice.
- Flow check: Compare the 45.0 mm neck ID to your filler tube to avoid an unwanted restriction.
- Packaging: Confirm clearance for the 35 mm length including cap so the cap stays accessible.
- Venting plan: Because it is non-vented, plan tank venting separately within your system design.
- Weld fit-up: Test-fit the neck orientation so routing does not preload the weld and the cap remains easy to open.
Before welding, verify your hose/tube size, mounting clearance, and venting strategy, then compare them to the listed OD/ID and the length including cap.
