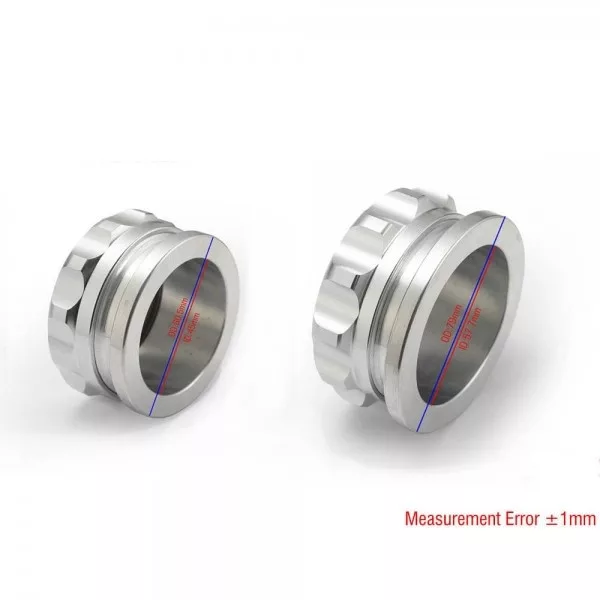

Key Features & Benefits – EPMAN weld-on aluminum fuel filler neck, silver, 3.0" (76mm)
The EPMAN weld-on aluminum fuel filler neck, silver, 3.0" (76mm) is made to be welded into a tank wall so you can place the fill point where your layout needs it. It can be used on custom fuel tanks, water tanks, coolant reservoirs, and other fabricated metal tanks.
The body is 6061-T6 aluminum, sealed by a screw cap with a rubber sealing ring. The cap has a knurled edge for grip, and the unit is a non-vented design.
When is this useful?
It suits builds where you want a sealed weld-in fill point with predictable cap access, while matching the plumbing to the 3.0" (76mm) size option.
Technical specs
- Product code: EPYXG200M30SL
- Material: 6061-T6 aluminum
- Design: weld-on filler neck, screw cap, rubber sealing ring
- Type: non-vented
- Color: silver cap
- Size option: 3.0" (76mm)
Selection & installation tips
- Connection check: Measure your hose/tube and clamp range, then match it to the 3.0" (76mm) size option.
- Packaging: Confirm clearance around the cap so it remains easy to open once installed.
- Venting plan: Because it is non-vented, plan tank venting separately within your system design.
- Material & process: Ensure the receiving tank material and welding process are compatible with aluminum.
- Fit-up: Dry-fit orientation before welding so routing does not preload the joint afterward.
Before welding, verify your hose/tube sizing, cap clearance, and venting strategy, then match them to the selected 3.0" (76mm) size option and the specs listed above.
