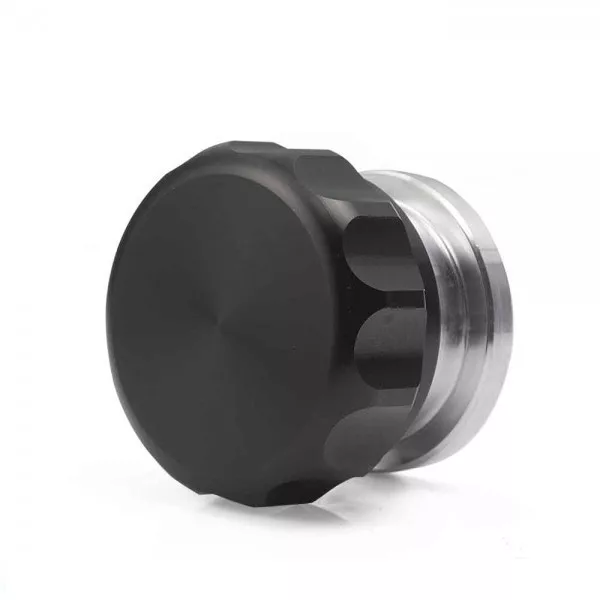

EPMAN weld-on aluminum fuel filler neck, black, 1.5" (38mm)
6061-T6 aluminum weld-on fuel filler neck with a black screw cap and rubber sealing ring. 1.5" (38mm) size option in a non-vented design. Suitable for custom fuel, water and coolant tanks.
Net price: 10 €
Key Features & Benefits – EPMAN weld-on aluminum fuel filler neck, black, 1.5" (38mm)
The EPMAN weld-on aluminum fuel filler neck, black, 1.5" (38mm) is a weld-in filler neck that lets you place the fill point where your tank layout needs it. It can be used on custom fuel tanks, water tanks, coolant reservoirs, and other fabricated metal tanks.
The body is 6061-T6 aluminum, sealed by a screw cap with a rubber sealing ring. The cap has a knurled edge for grip, and the design is non-vented.
When is this useful?
It suits builds where you want a compact, weld-on fill point with a sealed cap, while keeping cap access predictable in tight packaging around a custom tank.
Technical specs
- Product code: EPYXG200M15BK
- Material: 6061-T6 aluminum
- Design: weld-on filler neck, screw cap, rubber sealing ring
- Type: non-vented
- Color: black cap

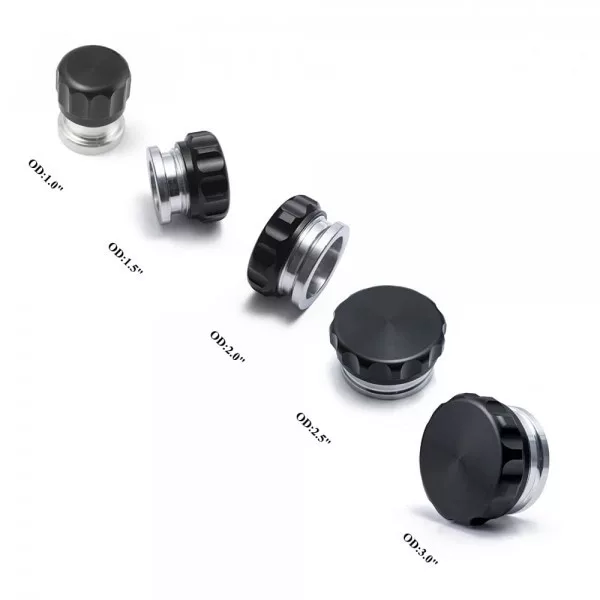

- Size option: 1.5" (38mm)
- Neck OD: 38 mm
- Neck ID: 24.5 mm
- Length including cap: 32 mm
Selection & installation tips
- Hose/tube match: Match the 38 mm neck OD to your hose/tube and clamp choice.
- Flow check: Compare the 24.5 mm neck ID to your filler tube and tank opening to avoid an unwanted restriction.
- Packaging: Confirm clearance for the 32 mm length including cap so the cap stays accessible.
- Venting plan: Because it is non-vented, plan tank venting separately within your system design.
- Weld prep: Clean the weld area and test-fit the neck orientation so routing does not preload the joint.
Before welding, verify your hose/tube size, mounting clearance, and venting strategy, then compare them to the listed OD/ID and the length including cap.
