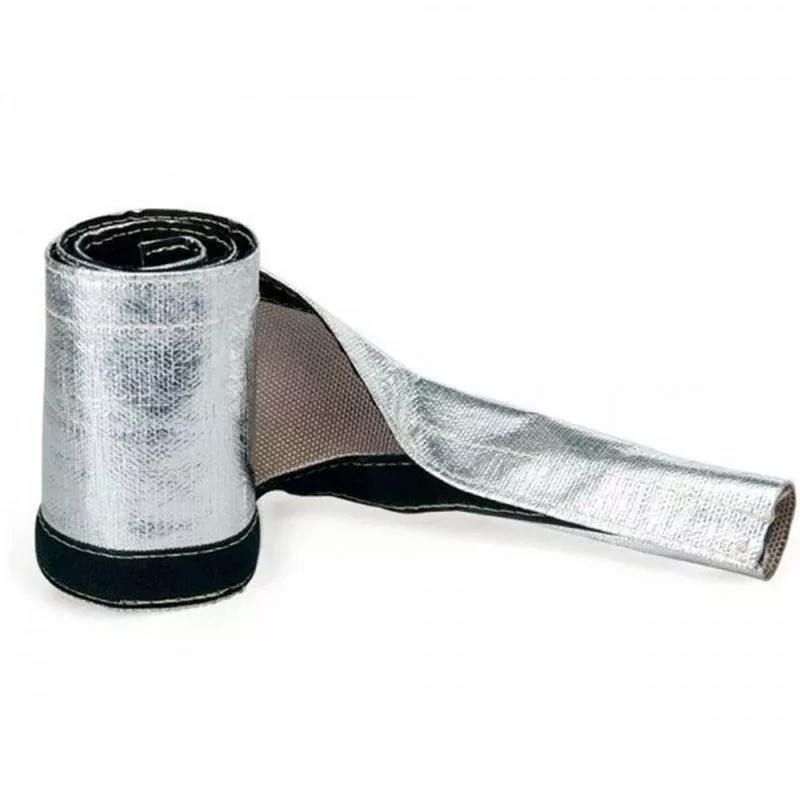

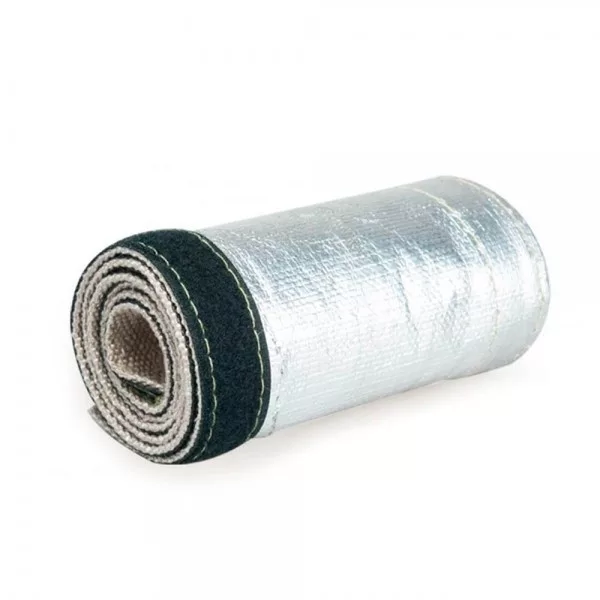

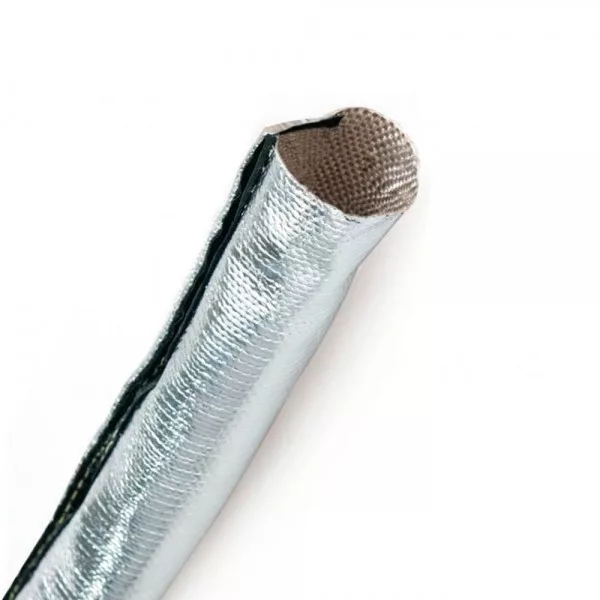

Key Features & Benefits – Aluminized insulated wire/hose heat shield sleeve with hook & loop closure 0.75"
The aluminized insulated wire/hose heat shield sleeve with hook & loop closure 0.75" (heat shield sleeve) is designed to protect the outer surface of wires and hoses routed near heat sources.

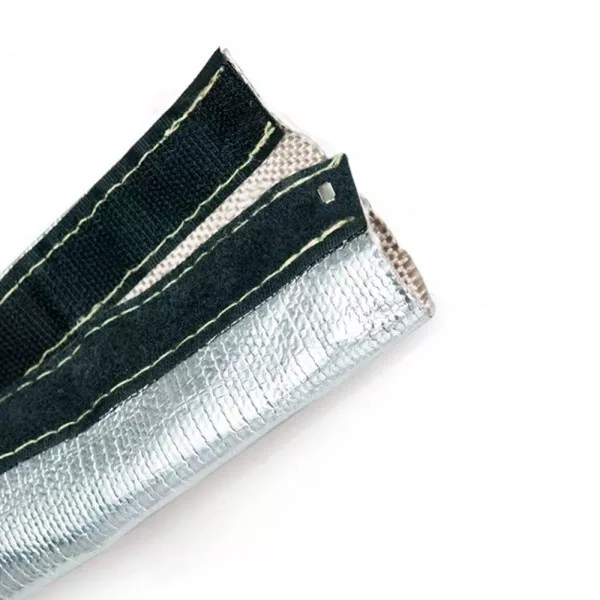

The lengthwise split with hook & loop edges allows a quick wrap-around fit without disconnecting the harness or line. The 0.75" (19.05 mm) inner diameter is functionally suited to bundles whose outside diameter fits within that ID, and the 6 ft (182 cm) length helps cover longer runs.
When is this useful?
It is useful when you need heat shielding over a longer section while keeping servicing simple, since the sleeve can be opened and re-closed during maintenance.
Technical specs
- Design: Lengthwise split sleeve with hook & loop closure
- Inner diameter: 0.75" (19.05 mm)
- Length: 6 ft (182 cm)
- Surface: Aluminized outer layer

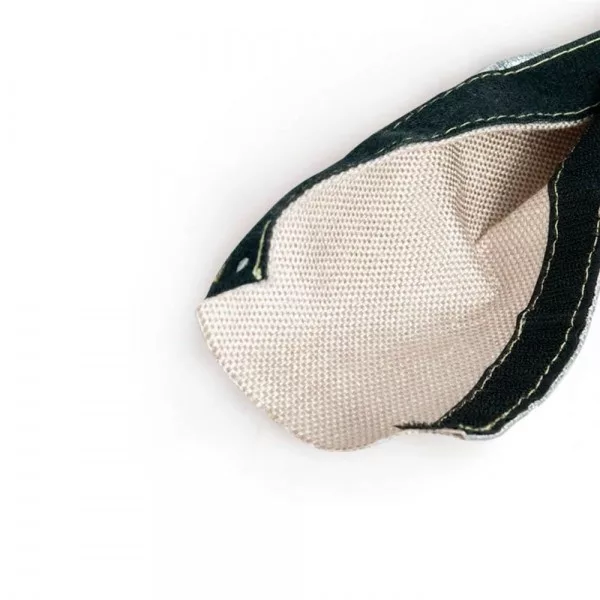

- Construction: Insulated
Selection & installation tips
- Diameter check: Measure the bundle OD at several points and leave a little clearance for vibration and movement.
- Coverage planning: Place the 6 ft length so the hottest zone is fully covered, not just the middle of the run.
- Orientation: Keep the aluminized side facing outward toward the heat source for reflective shielding.
- End retention: Secure the ends so the sleeve cannot creep, open, or rotate under vibration.
- Routing: Avoid sharp edges and constant rubbing; add extra mechanical protection at abrasion points.
Before installation, verify bundle OD, required coverage length, and clearances, then match them to the 0.75" ID and 6 ft length listed above.
