Key Features & Benefits – Universal cone air filter 80mm

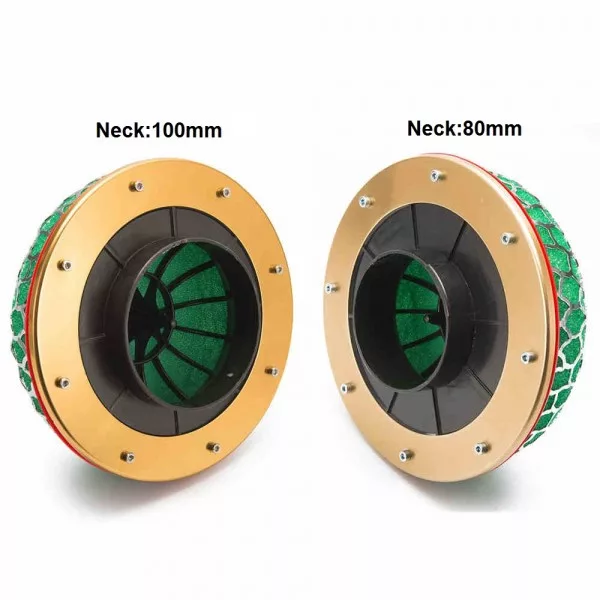

The Universal mushroom air filter 80mm is a dry-type direct intake filter designed to clean incoming air for the intake system. It uses an 80 mm inlet neck and typically clamps to aftermarket intake piping with a hose clamp.

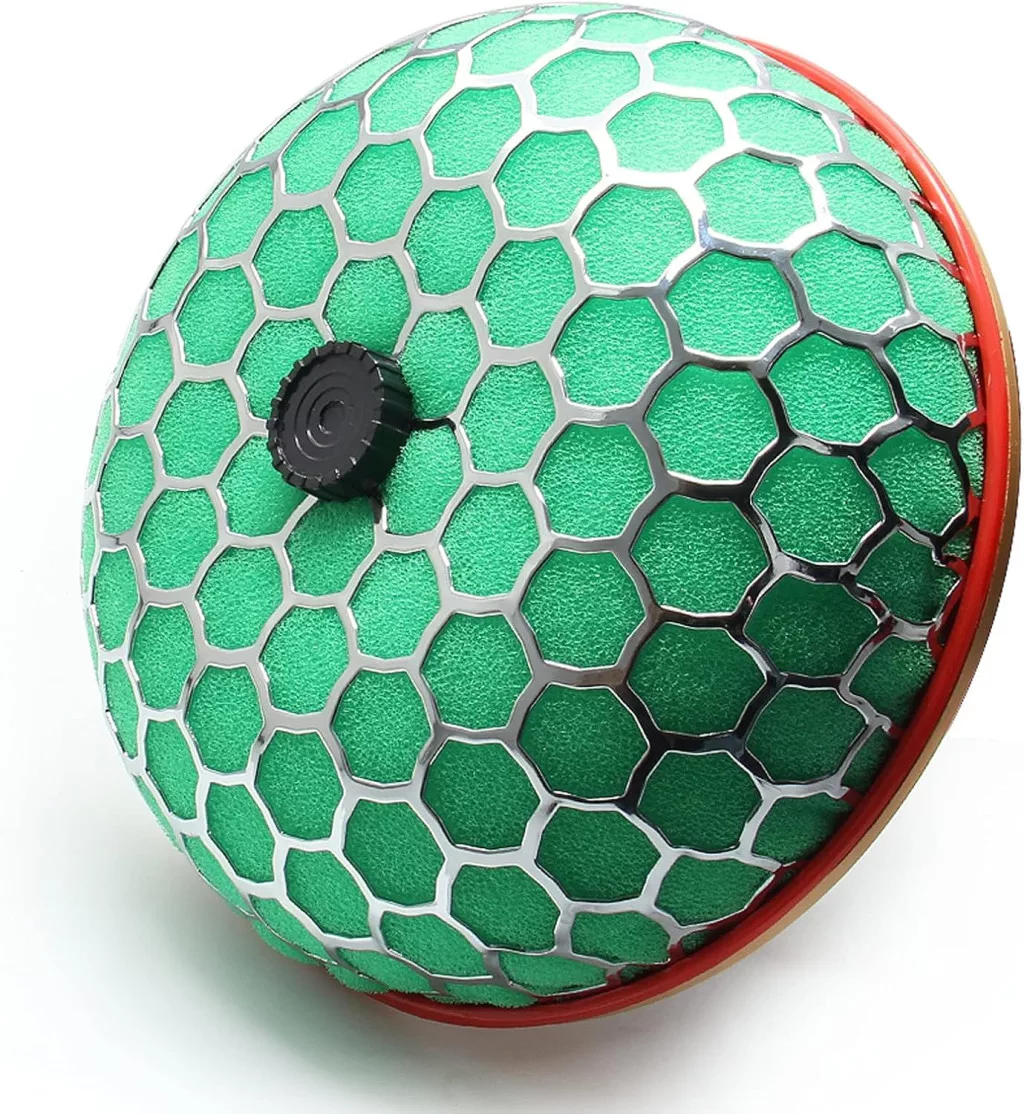

It features a 3-layer, replaceable foam element and runs without oiling. The 200 mm outer diameter and 90 mm overall thickness with neck help you plan packaging and clearance.
When is this useful?
It fits custom or modified intake setups where the stock airbox is replaced by a clamp-on cone filter and you want a serviceable element that can be cleaned and replaced.
Technical specs
- Type: Dry direct intake filter

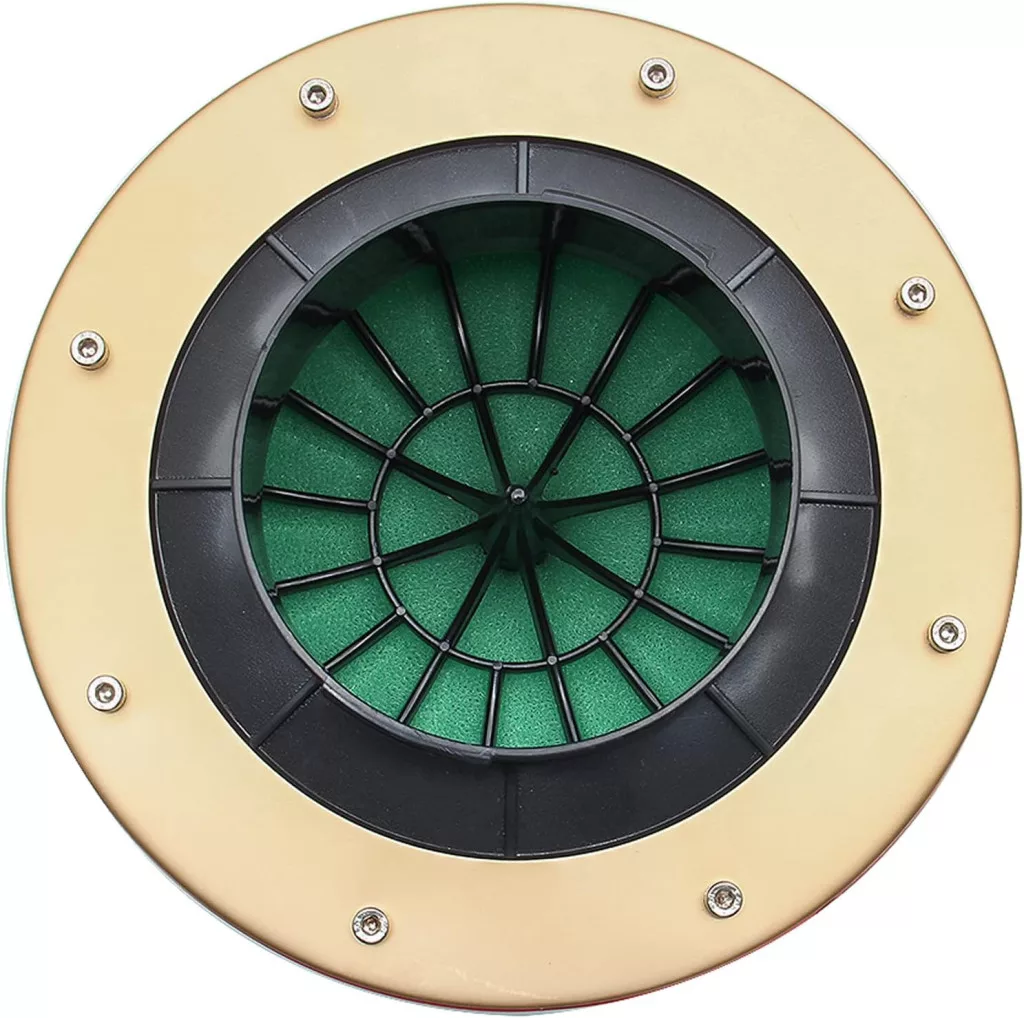

- Inlet neck diameter: 80 mm

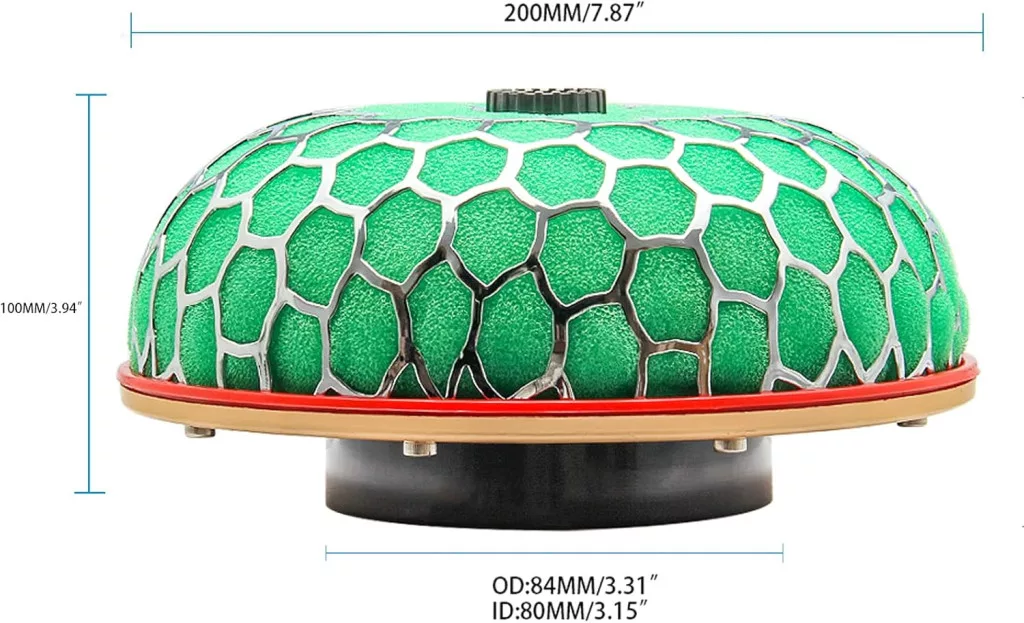

- Outer diameter: 200 mm
- Overall thickness with neck: 90 mm
- Filter element: 3-layer foam, replaceable
- Maintenance: Easy to clean
- Weight: 540 g/pc
- Part number: TK-AF80
Selection & installation tips
- Inlet size check: measure your intake pipe outer diameter and match it to the 80 mm inlet.
- Clearance: confirm the 200 mm outer diameter and 90 mm thickness fit your available space and hood clearance.
- Clamping: choose a clamp that matches the neck size and tighten it so the filter cannot rotate on the pipe.
- Heat exposure: position the filter away from strong heat sources and keep clear airflow space around the element.
- Service routine: inspect the element condition and refit only after it is fully dry after cleaning.
Before installation, verify inlet diameter and packaging space, then compare your measurements to the 80 mm, 200 mm and 90 mm values listed above.
