Key Features & Benefits – Universal cone air filter 100mm

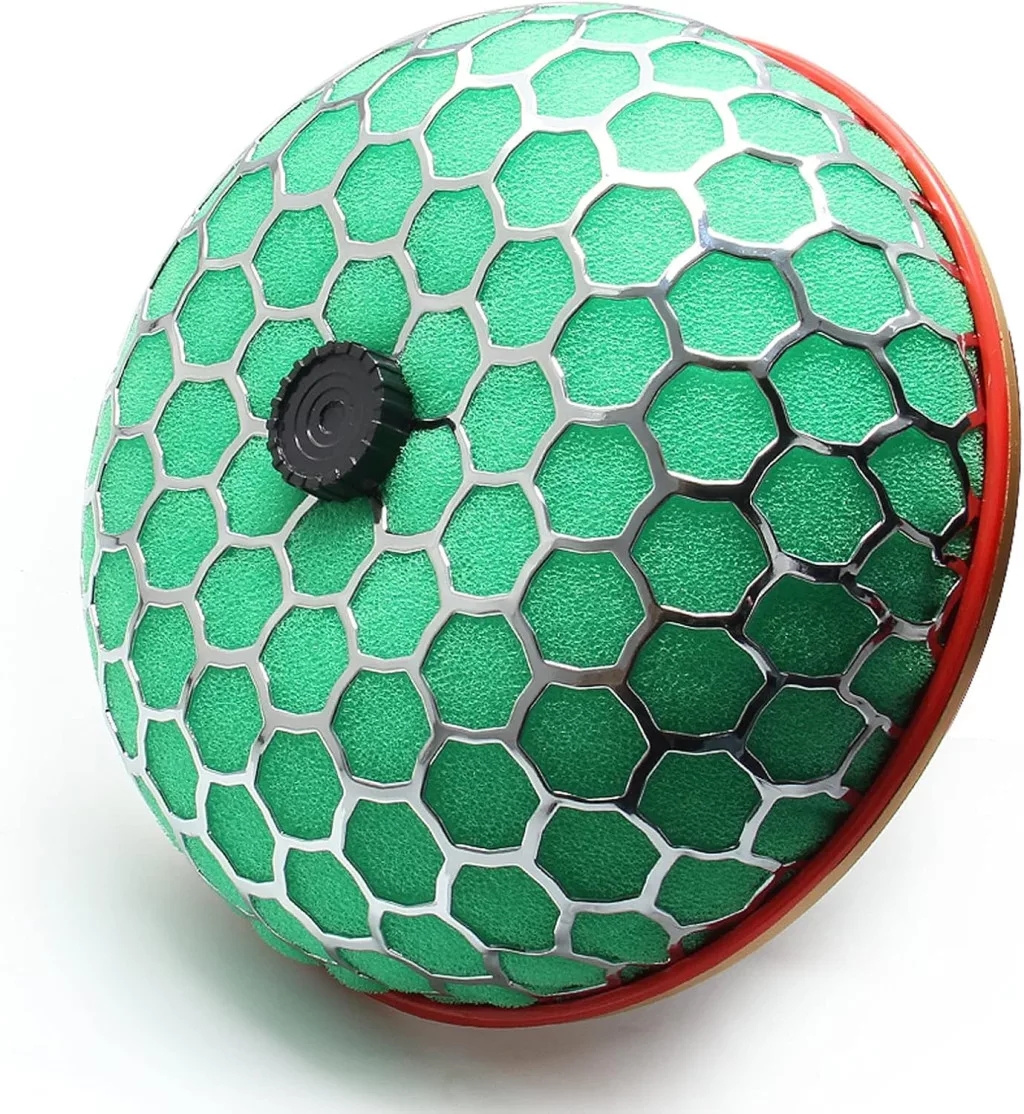

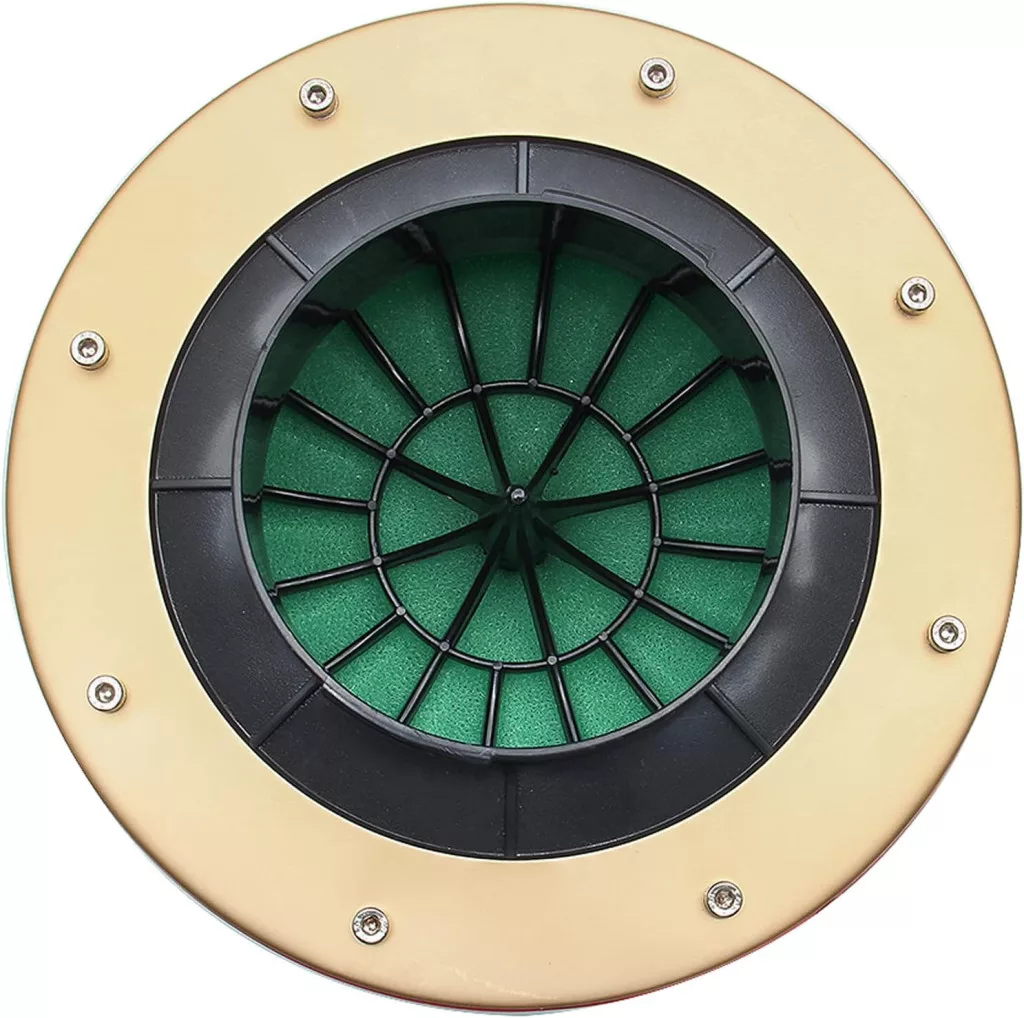

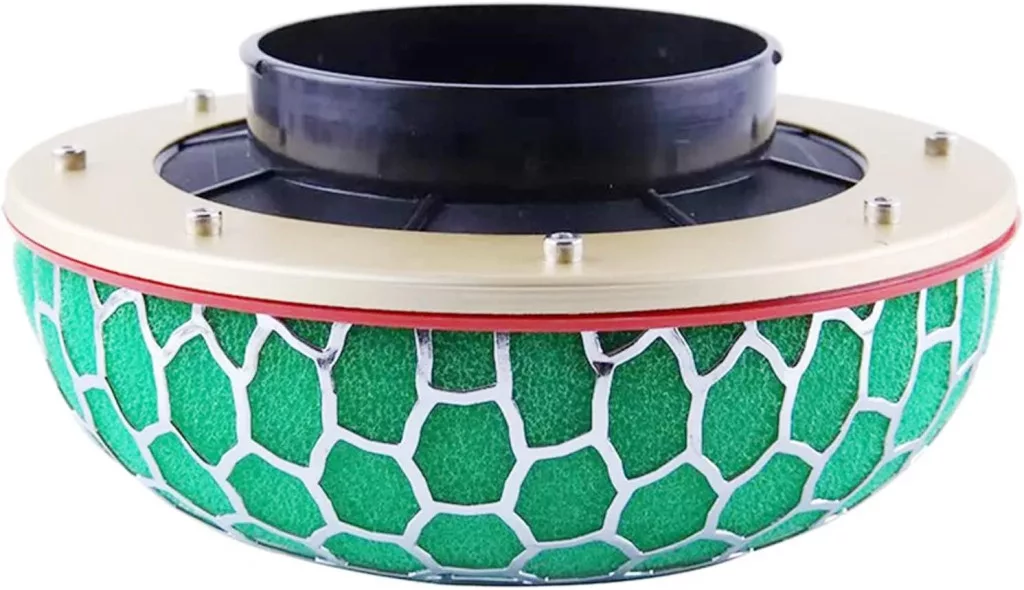

The universal cone air filter 100mm is a dry direct intake filter designed to clean the incoming air for the intake system. Its 100 mm inlet neck is intended for clamp-on installation on aftermarket intake piping.
It uses a 3-layer, replaceable foam element and is designed to run without oiling. The 200 mm outer diameter and 90 mm overall thickness with neck help you plan clearance and placement.
When is this useful?
It fits NA and turbo setups where the stock airbox is replaced by a clamp-on cone filter and you want a serviceable element that can be cleaned and replaced.
Technical specs
- Type: Dry direct intake filter

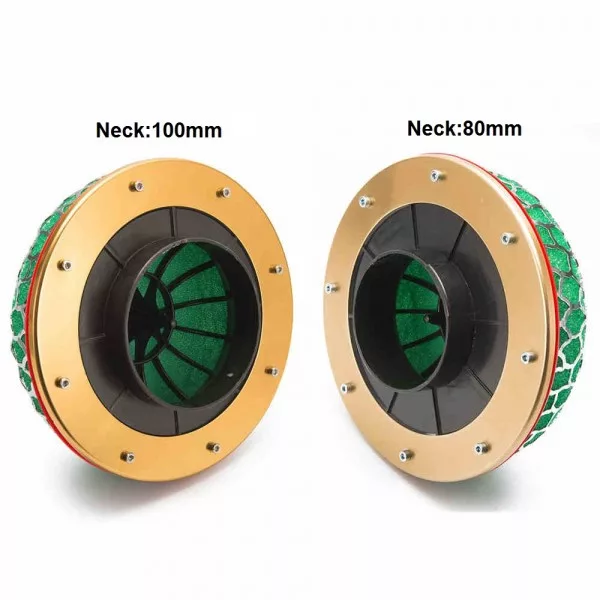

- Inlet neck diameter: 100 mm
- Outer diameter: 200 mm
- Overall thickness with neck: 90 mm
- Filter element: 3-layer foam, replaceable
- Maintenance: Easy to clean
- Part number: TK-AF100
Selection & installation tips
- Inlet size check: measure your intake pipe outer diameter and match it to the 100 mm inlet.
- Clearance: confirm the 200 mm outer diameter and 90 mm thickness fit your available space.
- Clamping: choose a clamp that matches the neck size and tighten it so the filter cannot rotate on the pipe.
- Placement: keep free airflow space around the element and avoid positioning next to strong heat sources.
- Cleaning: refit only after the element is fully dry, and check condition regularly.
Before installation, verify inlet diameter and packaging space, then compare your measurements to the 100 mm, 200 mm and 90 mm values listed above.
