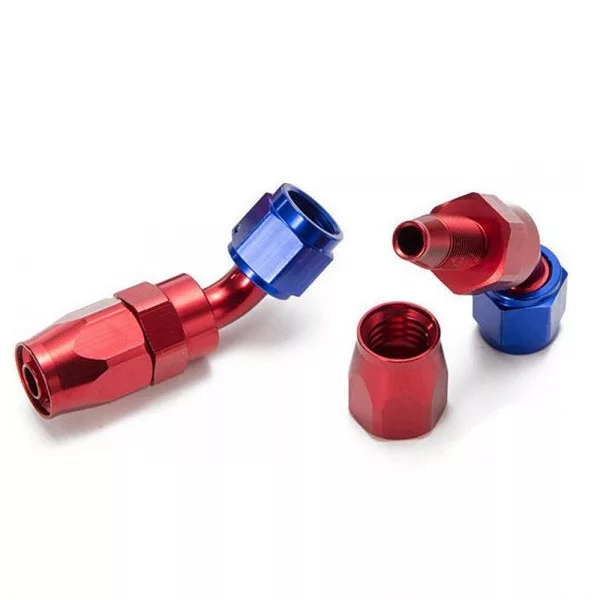

Key Features & Benefits – AN4 45 degree swivel hose end fitting
The AN4 45 degree swivel hose end fitting is made for AN4 / -4AN setups and works with CPE, stainless braided or nylon braided hose; it is not suitable for PTFE hose, rubber hose or E85 use. The 45 degree angle provides a moderate change of direction, while the swivel design helps with fitting alignment during installation.
It has an aluminum body and a female-to-male layout for oil, fuel, water, fluid, air, gas and coolant lines. Maximum working pressure is 68.95 bar (1000 psi), and the working temperature range is -53 °C to +122 °C.
When is this useful?
This version is useful when space is limited and you need a gentle change in direction without moving all the way to a 90 degree turn. It works well in engine bay layouts where the hose should leave the connection in a smoother arc.
Technical specs
- Part number: AN4-45A
- Size: AN4 / -4AN
- Angle: 45 degree
- Design: swivel hose end fitting
- Material: aluminum
- Color: blue and red
- Layout: female to male
- Compatible hose: CPE, stainless braided and nylon braided hose
- Not compatible with: PTFE hose, rubber hose, E85
- Maximum working pressure: 68.95 bar (1000 psi)
- Working temperature: -53 °C to +122 °C (-65 °F to +252 °F)
- Application: oil, fuel, water, fluid, air, gas and coolant lines

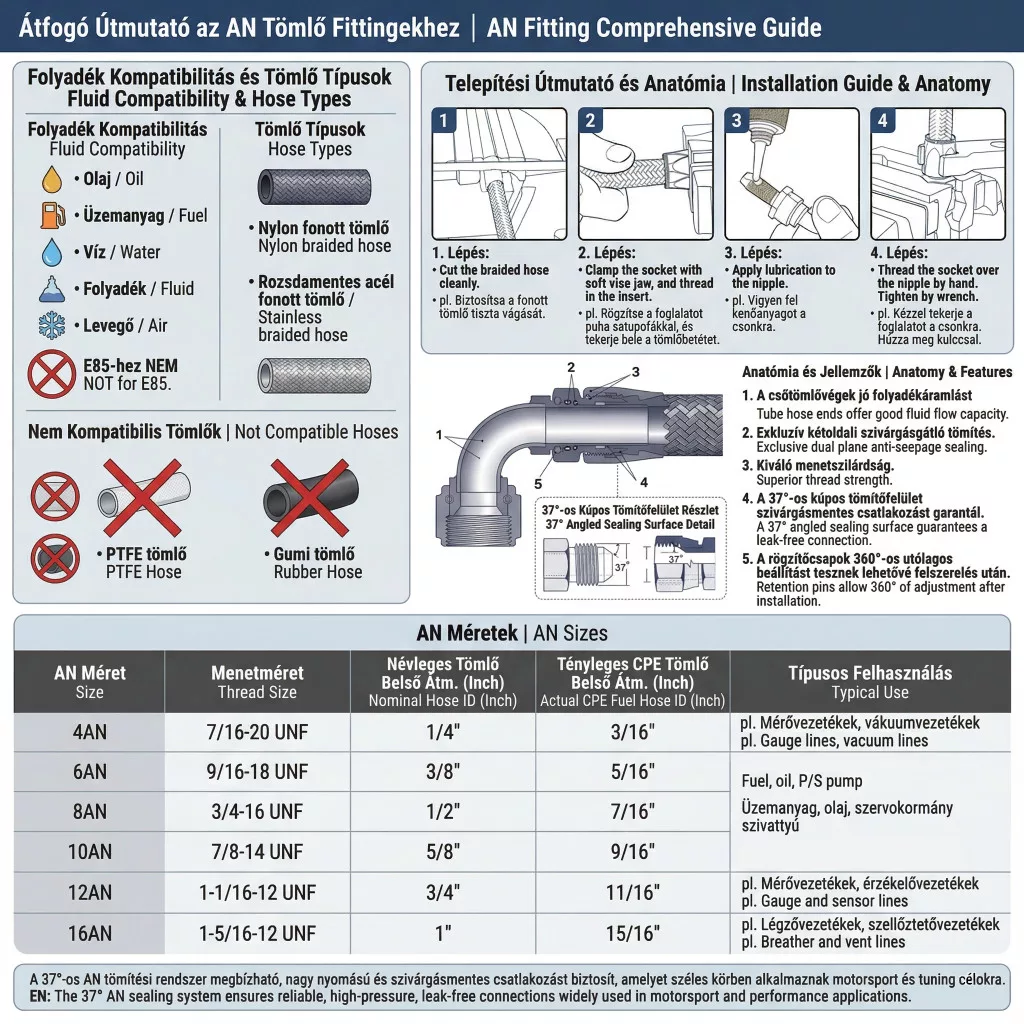

Selection & installation tips
- Hose type: Check that the system uses CPE, stainless braided or nylon braided hose, because this fitting is not intended for PTFE or rubber hose.
- Fuel compatibility: Choose it for systems that do not run E85.
- Angle choice: The 45 degree design is the right choice when a mild direction change is needed and you want to reduce unnecessary hose stress.
- System size: Make sure the matching components are built around AN4 / -4AN size.
- Operating range: Compare your system pressure and temperature with the listed limits.
Before installation, verify hose type, AN4 size, required angle, and the pressure and temperature range, then compare them with the listed details.
