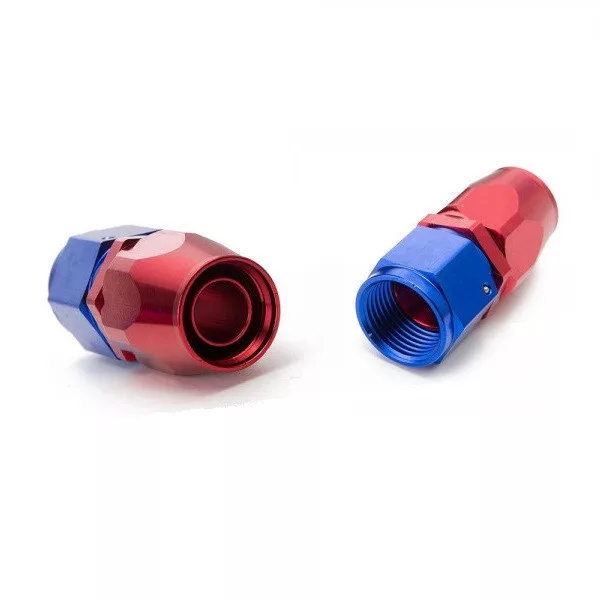

Key Features & Benefits – AN6 0 degree swivel hose end fitting
The AN6 0 degree swivel hose end fitting is made for AN6 / -6AN setups and works with CPE, stainless braided or nylon braided hose; it is not suitable for PTFE hose, rubber hose or E85 use. The 0 degree angle suits straight line routing, while the swivel design helps with fitting alignment during installation.
It has an aluminum body and a female-to-male layout for oil, fuel, water, fluid, air, gas and coolant lines. Maximum working pressure is 68.95 bar (1000 psi), and the working temperature range is -53 °C to +122 °C.
When is this useful?
This version is useful when you want the hose to continue in a straight path without changing direction at the connection point. It works well where installation height is limited and a clean, simple hose route is preferred.
Technical specs
- Part number: AN6-0A
- Size: AN6 / -6AN
- Angle: 0 degree
- Design: swivel hose end fitting
- Material: aluminum
- Color: blue and red
- Layout: female to male
- Compatible hose: CPE, stainless braided and nylon braided hose
- Not compatible with: PTFE hose, rubber hose, E85
- Maximum working pressure: 68.95 bar (1000 psi)
- Working temperature: -53 °C to +122 °C (-65 °F to +252 °F)
- Application: oil, fuel, water, fluid, air, gas and coolant lines

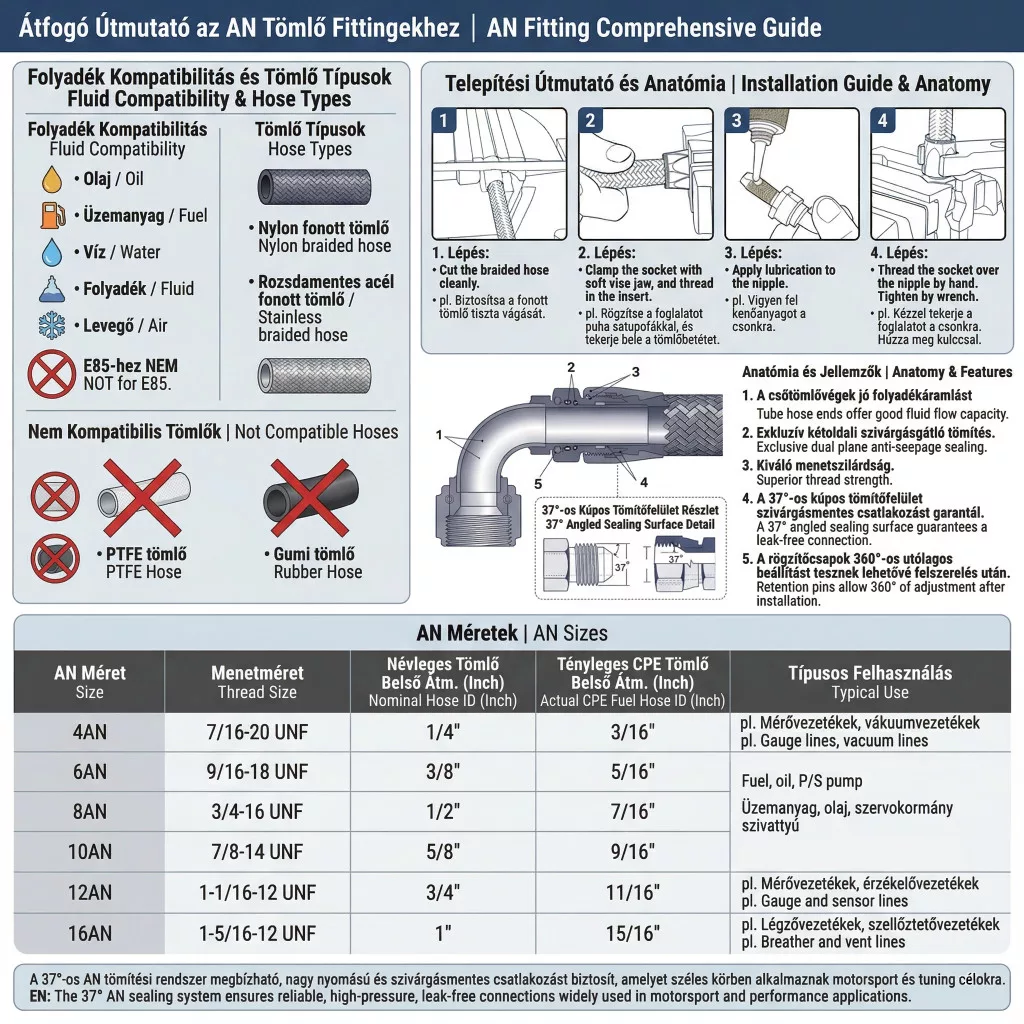

Selection & installation tips
- Hose type: Check that the system uses CPE, stainless braided or nylon braided hose, because this fitting is not intended for PTFE or rubber hose.
- Fuel compatibility: Choose it for systems that do not run E85.
- Angle choice: The 0 degree design is the right choice when the hose can leave the connection in a straight path without an unnecessary bend.
- System size: Make sure the matching components are built around AN6 / -6AN size.
- Operating range: Compare your system pressure and temperature with the listed limits.
Before installation, verify hose type, AN6 size, required angle, and the pressure and temperature range, then compare them with the listed details.
