Key Features & Benefits – AN10 120 degree swivel hose end fitting

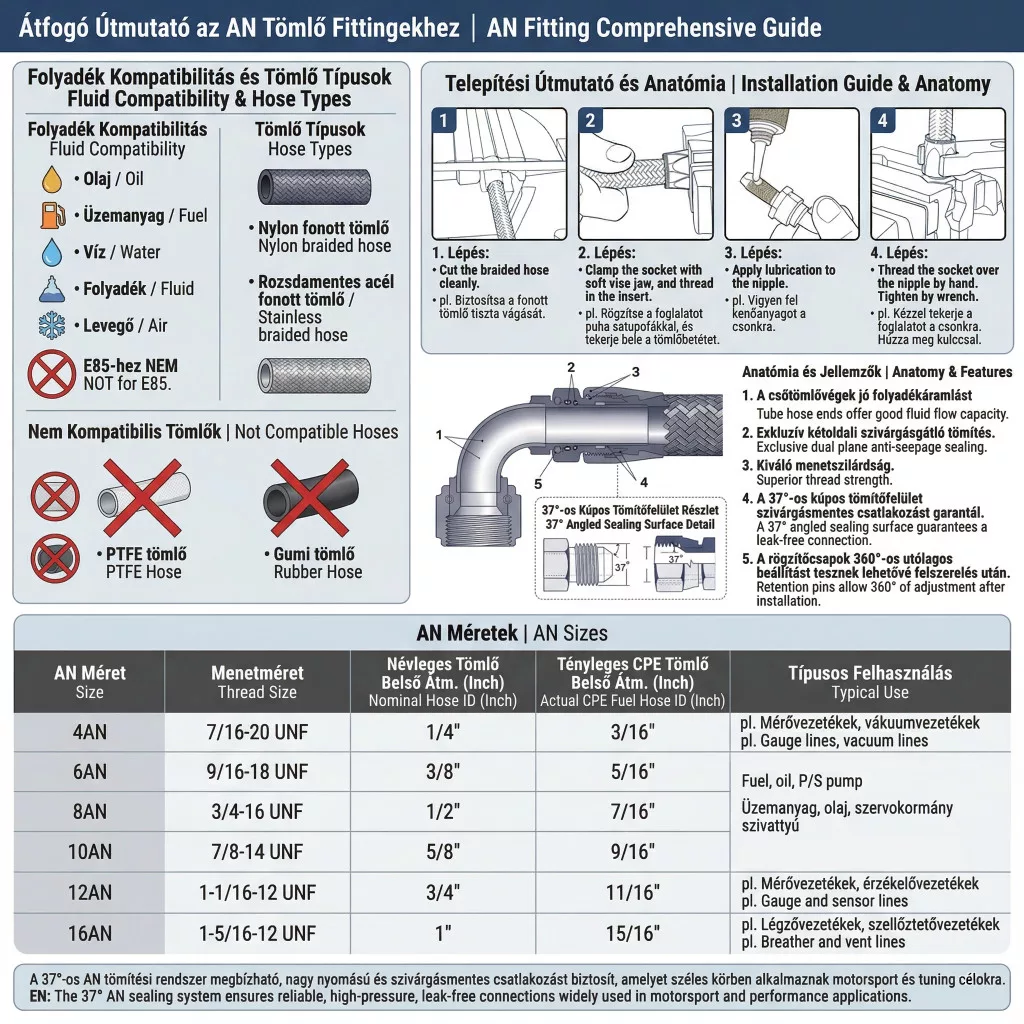

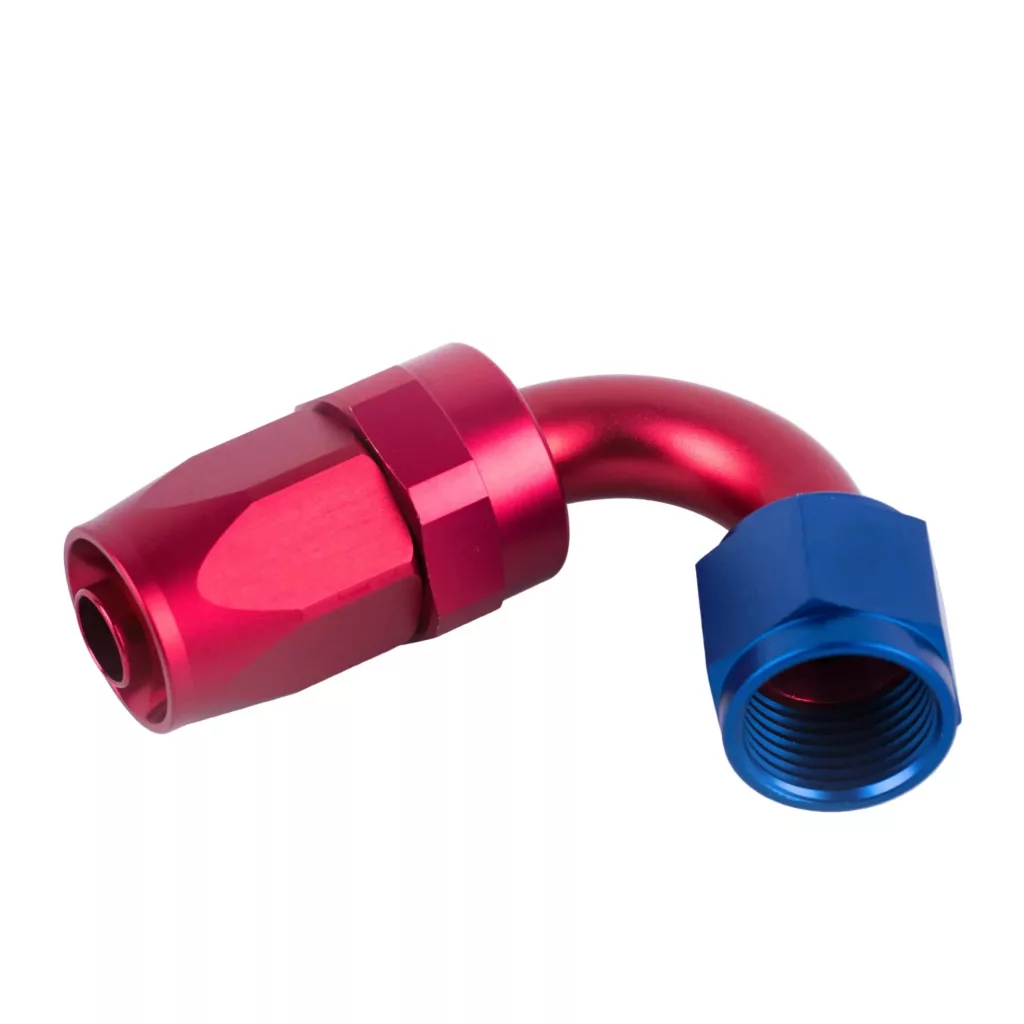

The AN10 120 degree swivel hose end fitting is made for AN10 / -10AN setups and works with CPE, stainless braided or nylon braided hose; it is not suitable for PTFE hose, rubber hose or E85 use. The 120 degree angle suits a partially returning hose route, while the swivel design helps with fitting alignment during installation.
It has an aluminum body and a female-to-male layout for oil, fuel, water, fluid, air, gas and coolant lines. Maximum working pressure is 68.95 bar (1000 psi), and the working temperature range is -53 °C to +122 °C.
When is this useful?
This version is useful when the hose needs to head back toward the original direction without making a full 180 degree return. It can be a practical choice when a compact detour helps the line clear surrounding hardware.
Technical specs
- Part number: AN10-120A
- Size: AN10 / -10AN
- Angle: 120 degree
- Design: swivel hose end fitting
- Material: aluminum
- Color: blue and red
- Layout: female to male
- Compatible hose: CPE, stainless braided and nylon braided hose
- Not compatible with: PTFE hose, rubber hose, E85
- Maximum working pressure: 68.95 bar (1000 psi)
- Working temperature: -53 °C to +122 °C (-65 °F to +252 °F)
- Application: oil, fuel, water, fluid, air, gas and coolant lines
Selection & installation tips
- Hose type: Check that the system uses CPE, stainless braided or nylon braided hose, because this fitting is not intended for PTFE or rubber hose.
- Fuel compatibility: Choose it for systems that do not run E85.
- Angle choice: The 120 degree design is the right choice when the line needs a partially returning path and 90 degree does not create the right route.
- System size: Make sure the matching components are built around AN10 / -10AN size.
- Operating range: Compare your system pressure and temperature with the listed limits.
Before installation, verify hose type, AN10 size, required angle, and the pressure and temperature range, then compare them with the listed details.
