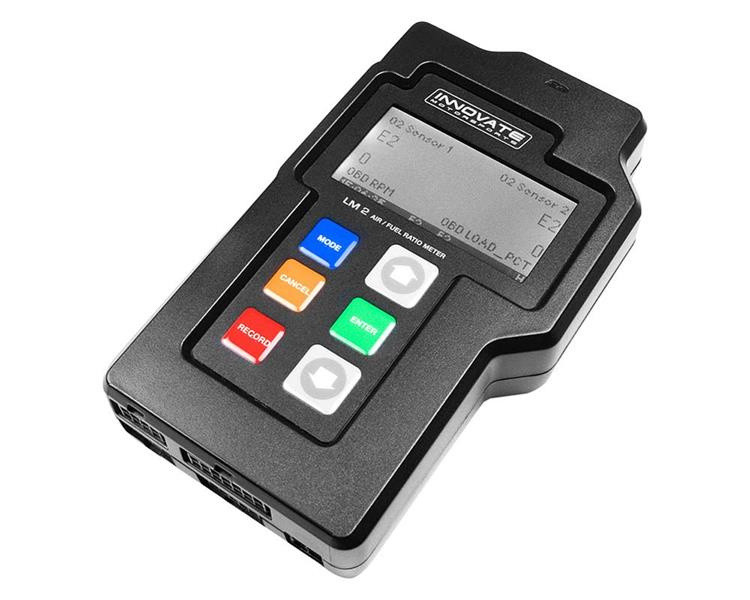

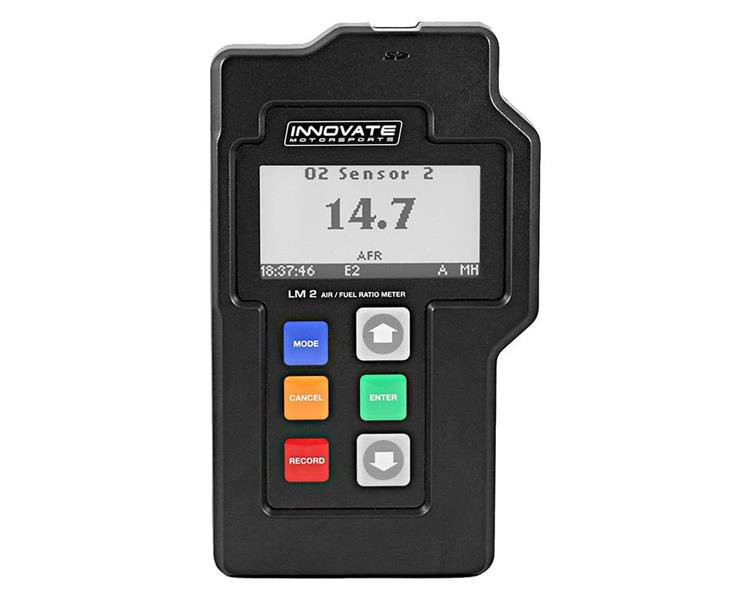

Innovate 3806 LM-2 32-channel datalogger with software with huge possibilities thanks to which it is a complete tool necessary for tuning engines (both high performance and e.g. gas tuning).
Displays the composition of the mixture based on the digital signals coming from the probe.
Parameters:
- Read and record up to 16 channels from the OBD connector
- Reading and clearing errors via the OBD connector
- Log in to the SD card
- Playing back recorded data on the device or laptop.
- Built-in input for engine revs reading.
- 4 analog inputs.
- Fully digital controller.
- The fastest response time on the market.
- Cooperation: Broadband probe Bosch or NTK
- Fuels: most fuels - gasoline, CNG, methanol, ethanol and others.
- Measuring range: 7.35 - 22.4 AFR
- Accuracy: 0.1 AFR
- 2 0-5V outputs freely configurable.
- USB laptop output
- Free LogWorks 3 program

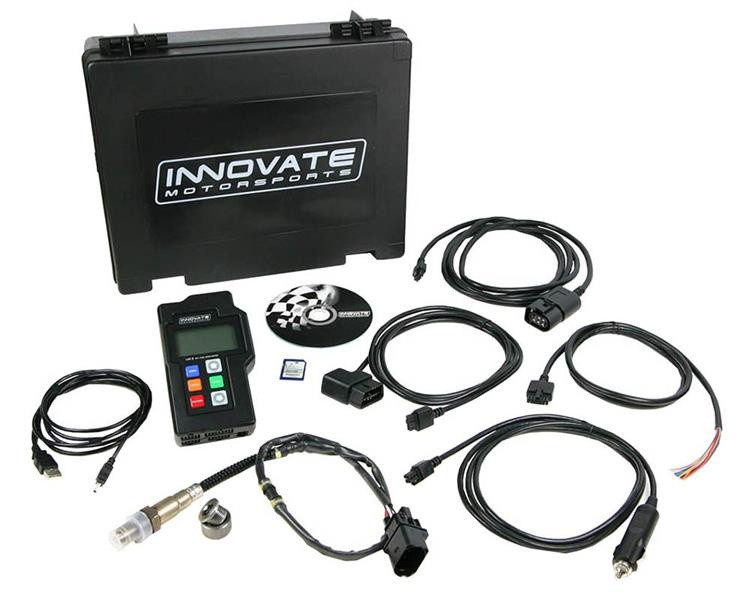

Included:
- LM-2 device
- Lambda probe
- computer connection cables
- cables for connecting to the OBD socket
- SD memory card
- Welding sleeve with thread and end cap

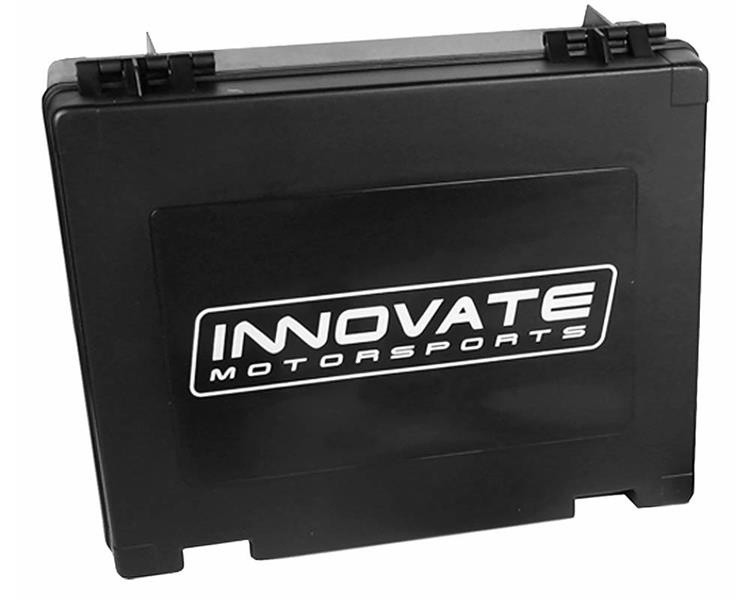

- device case
- CD software
- user manual
Warning! The probe is not covered by the warranty.
