Key Features & Benefits – KET 52mm VDO style oil pressure gauge

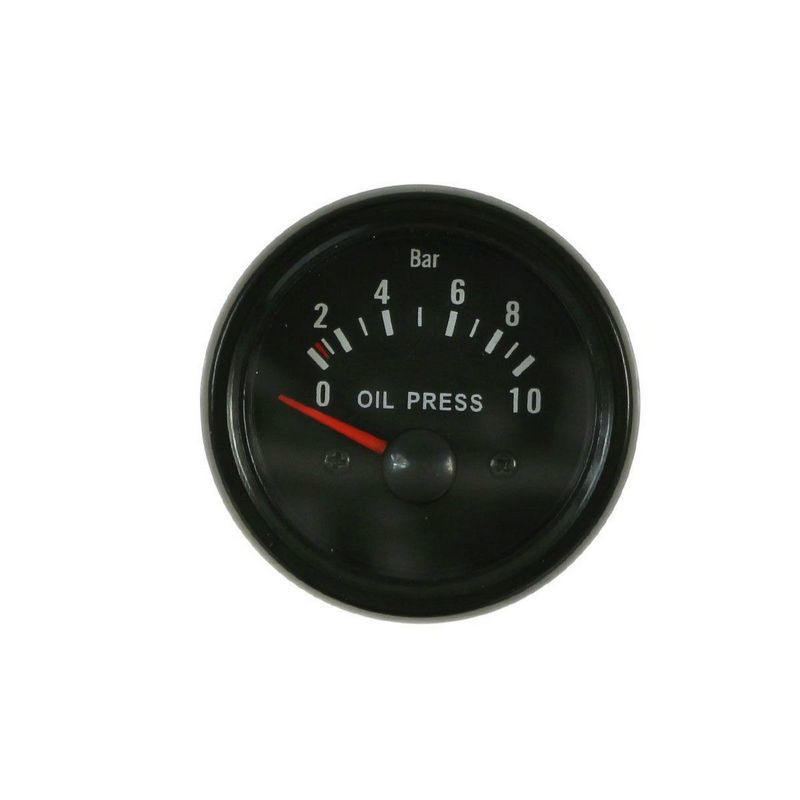

The KET 52mm VDO style oil pressure gauge fits standard 52mm cutouts and gauge pods. The 0–10 bar scale helps you track oil pressure changes, while the black dial and white backlighting keep it usable in low light.
The set includes an oil pressure sensor and a user manual for the install. The VDO style look suits classic interiors when you want extra monitoring without a modern, flashy face.
When is this useful?
When oil pressure shifts with load or temperature, the 0–10 bar display helps you notice patterns quickly. It is practical for track days, spirited driving, or engine break-in when oil pressure feedback matters.
Technical specs
- Type: Oil pressure gauge
- Diameter: 52mm
- Scale: 0–10 bar
- Scale unit: bar
- Dial: Black
- Backlighting: White
- Design: VDO style
- Brand: KET

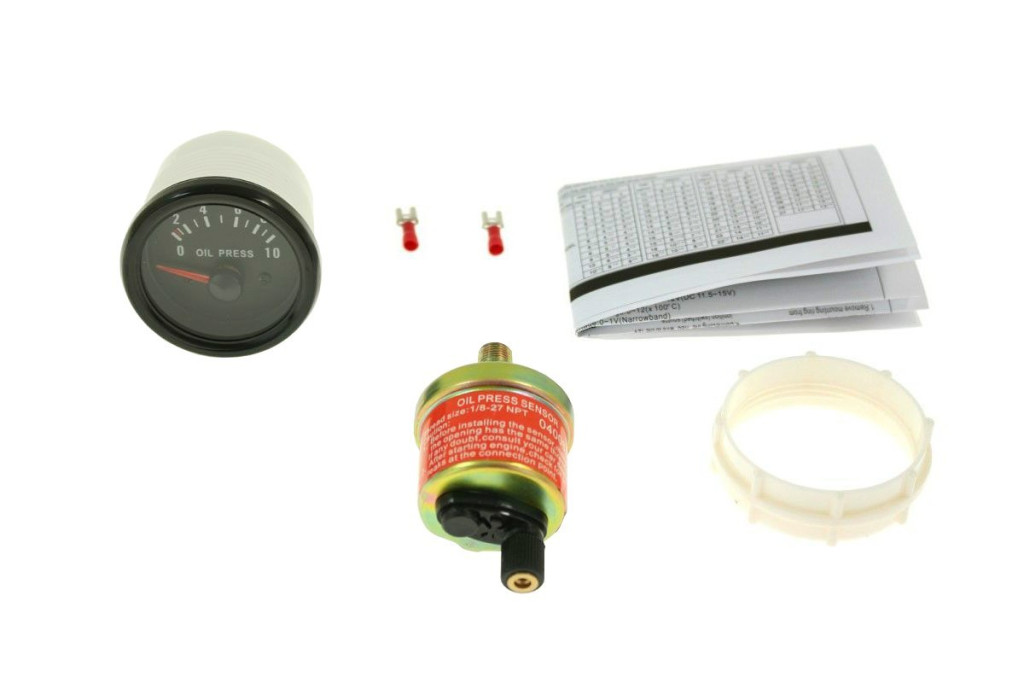

- In the box: Gauge, user manual, oil pressure sensor
Selection & installation tips
- Mounting size: Confirm your gauge location and holder are made for a 52mm gauge and that the fixing method matches your setup.
- Range check: Make sure the 0–10 bar scale fits what you want to monitor on your engine.
- Sensor connection: Compare the sensor thread and sealing method to your engine’s oil take-off point and use a suitable adapter if needed.
- Wiring: Keep the sensor signal wire and the backlight power separated, and secure connectors against vibration.
- Leak inspection: After first start, check around the sensor and sealing points, then observe the reading under operating conditions.
Before installation, verify the 52mm mounting location, the 0–10 bar range, and the sensor thread and sealing method. Compare the final connection and routing to your engine’s take-off point and the included instructions.
