Key Features & Benefits – EPMAN racing in-line fuel filter AN6 purple

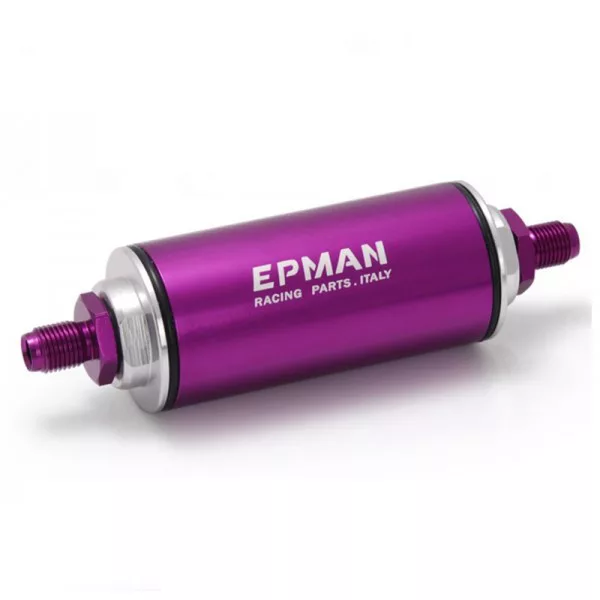

The EPMAN racing in-line fuel filter AN6 purple is an external fuel filter designed for AN6 fuel plumbing. The purple anodised housing is made from 6061 aluminium, while the internal element is a Stainless Steel (100 Micron) filter.

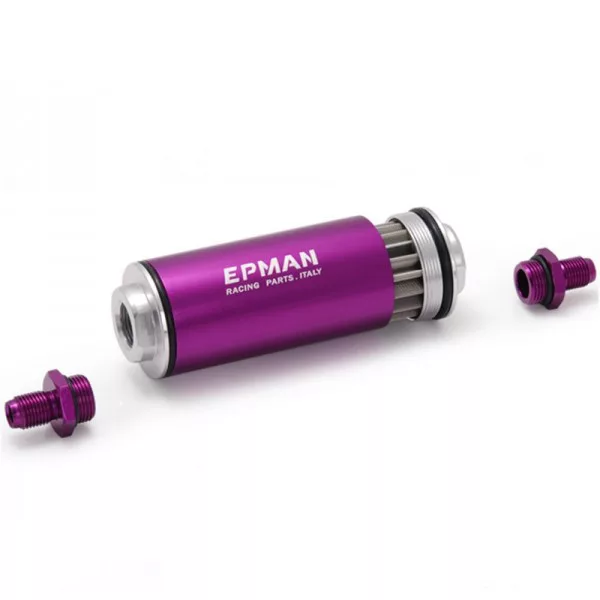

The filter element is cleanable, which makes the design easier to maintain in motorsport and custom fuel system builds. Included AN6 fittings are part of the package, and the Tansky part number is EP-OF06-PU.
When is this useful?
This layout is useful when you need a serviceable in-line fuel filter for an AN6 fuel system and want a metal housing with a stainless steel micro-mesh element.
Technical specs
- Part number: EP-OF06-PU
- Product type: universal external in-line fuel filter
- Connection size: AN6
- Filter element: Stainless Steel (100 Micron) filter
- Housing material: anodised 6061 aluminium
- Colour: purple

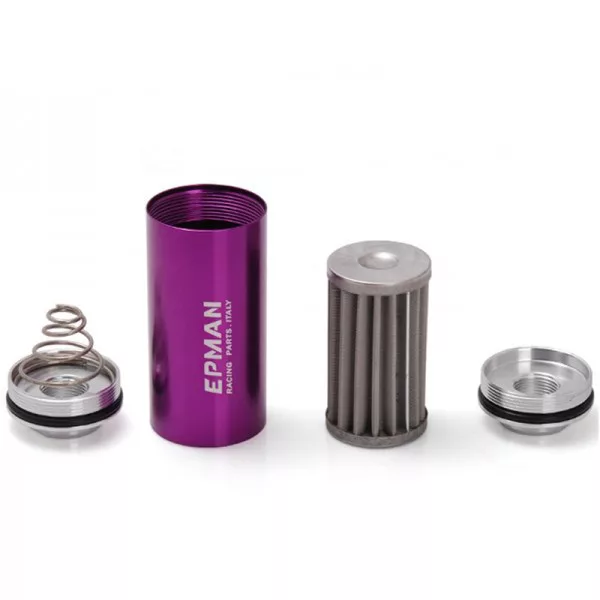

- Serviceability: cleanable filter element
- Included: AN6 fittings

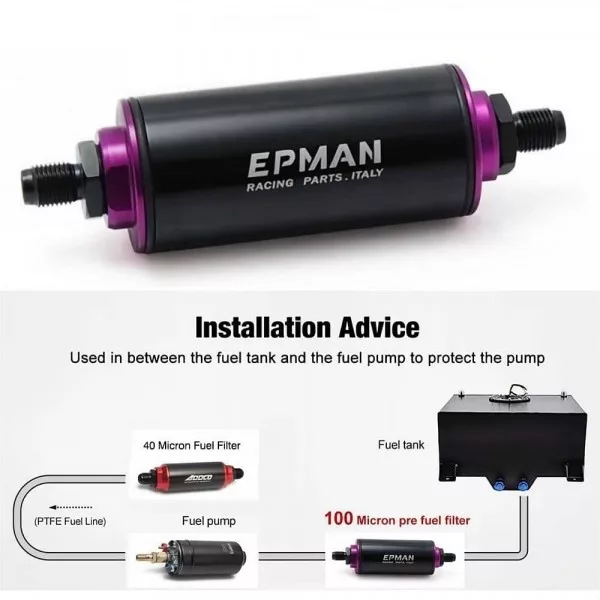

Selection & installation tips
- Connection size: confirm that both sides of the system require AN6 fittings.
- Filtration role: check whether a 100 micron element matches the intended filtration stage in the system.
- Mounting location: choose a position where the housing can still be opened and cleaned later.
- Line routing: avoid tight hose bends and confirm that the fittings sit without side load.
- Sealing check: inspect the housing and fittings for leak-free sealing after assembly.
Before installation, verify the connection size, filtration requirement, mounting space and service access, then compare them with the listed technical details.
