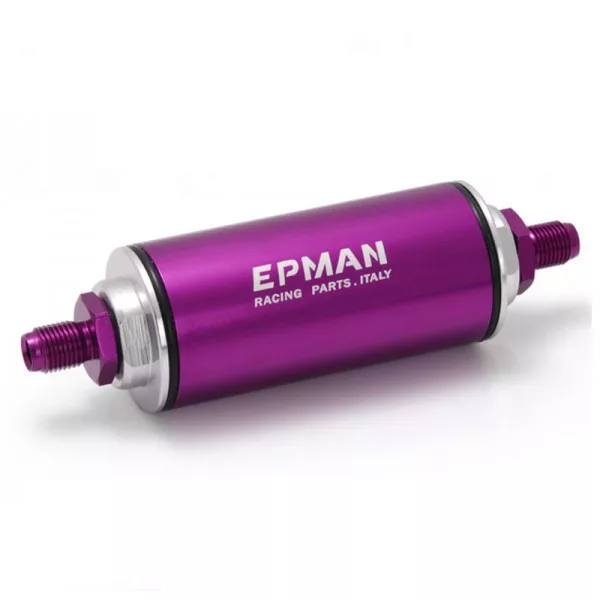

Key Features & Benefits – EPMAN racing in-line fuel filter 8.6 mm purple

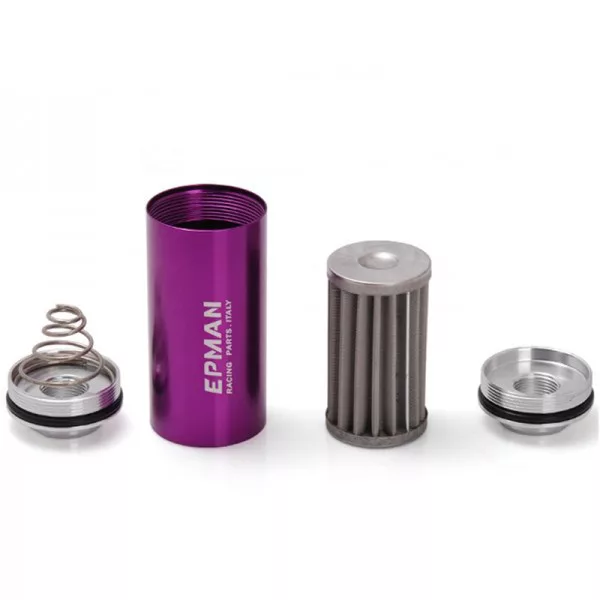

The EPMAN racing in-line fuel filter 8.6 mm purple is an external fuel filter designed for 8.6 mm fuel line connections. The purple anodised housing is made from 6061 aluminium, while the internal element is a Stainless Steel (100 Micron) filter.
The filter element is cleanable, which makes the design easier to maintain in universal and custom fuel system builds. Included 8.6 mm fittings are part of the package, and the Tansky part number is EP-OF86-PU.
When is this useful?
This layout is useful when you need a serviceable in-line fuel filter for 8.6 mm fuel line connections and want a metal housing with a stainless steel micro-mesh element.
Technical specs
- Part number: EP-OF86-PU
- Product type: universal external in-line fuel filter
- Connection size: 8.6 mm
- Filter element: Stainless Steel (100 Micron) filter
- Housing material: anodised 6061 aluminium
- Colour: purple
- Serviceability: cleanable filter element

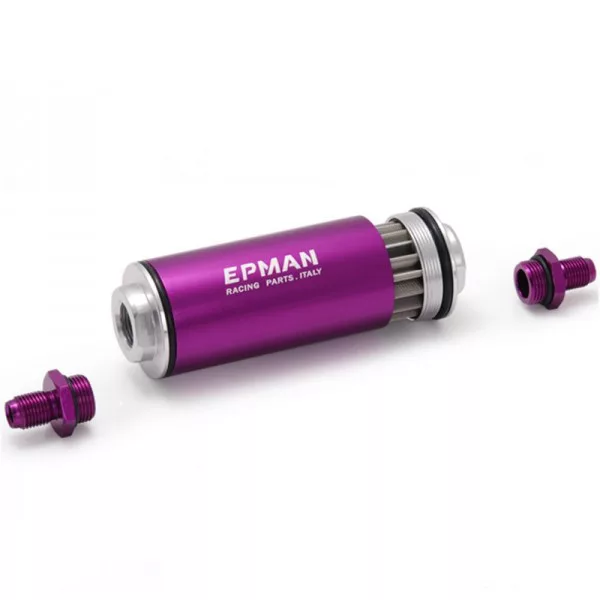

- Included: 8.6 mm fittings
Selection & installation tips
- Connection size: confirm that the system matches 8.6 mm fittings.
- Filtration role: check whether a 100 micron element matches the intended filtration stage in the system.

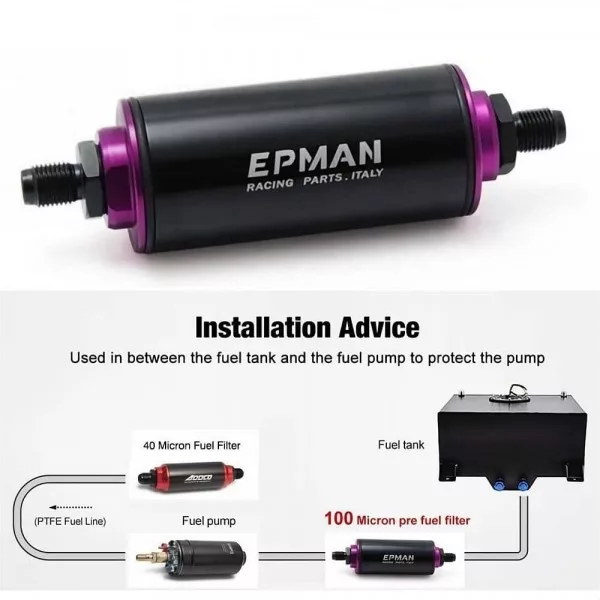

- Mounting location: choose a position where the housing can still be opened and cleaned later.
- Hose routing: check that the hose path stays smooth and the connection can be secured properly.
- Sealing check: inspect the housing and fittings for leak-free sealing after assembly.
Before installation, verify the connection size, filtration requirement, mounting space and service access, then compare them with the listed technical details.
