Epman 5.0-Inch 127 mm Black Intercooler Quick-Release Clamp Kit with Locking Pin
The Epman 5.0-inch black intercooler quick-release clamp kit includes a solid billet 6061 aluminum clamp body, two weld-on aluminum ferrules, double O-ring sealing, a union sleeve and a removable locking pin. The pin-retained design allows the pipe connection to be separated without removing fastening bolts.
Key Features & Benefits – Epman 5.0-inch black intercooler quick-release clamp kit
The Epman 5.0-inch black intercooler quick-release clamp kit creates a weld-on connection with double O-ring sealing for custom charge-pipe systems. The 5.0-inch (127 mm) nominal size uses two aluminum ferrules that must be welded to the pipe ends.
The outer clamp body is made from solid billet 6061 aluminum with a black anodized finish. The kit includes two weld-on ferrules, O-rings, a union sleeve and a removable locking pin.
When is this useful?

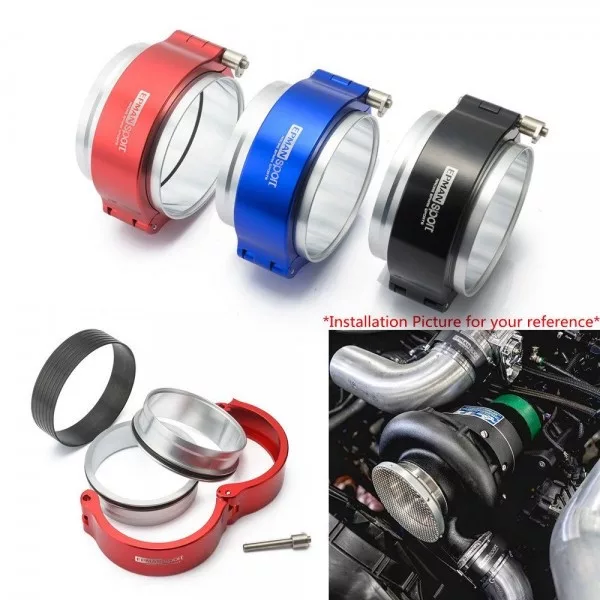

The pin-retained design creates a removable connection point in custom turbo and intercooler piping. Pulling out the locking pin releases the clamp body, allowing the pipe section to be separated without removing fastening bolts.
Technical specs
- Part number: EPSS127KB-BK
- Product type: weld-on intercooler quick-release clamp kit

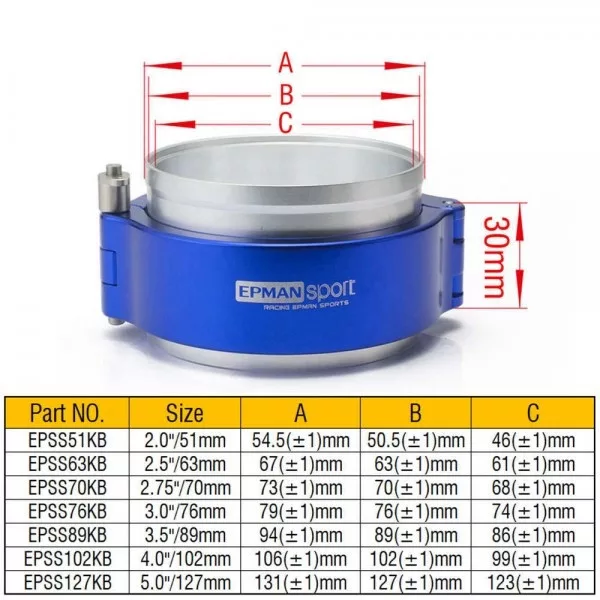

- Nominal size: 5.0 inches, 127 mm
- Clamp material: solid billet 6061 aluminum
- Colour and finish: black anodized
- Fastening: removable locking pin

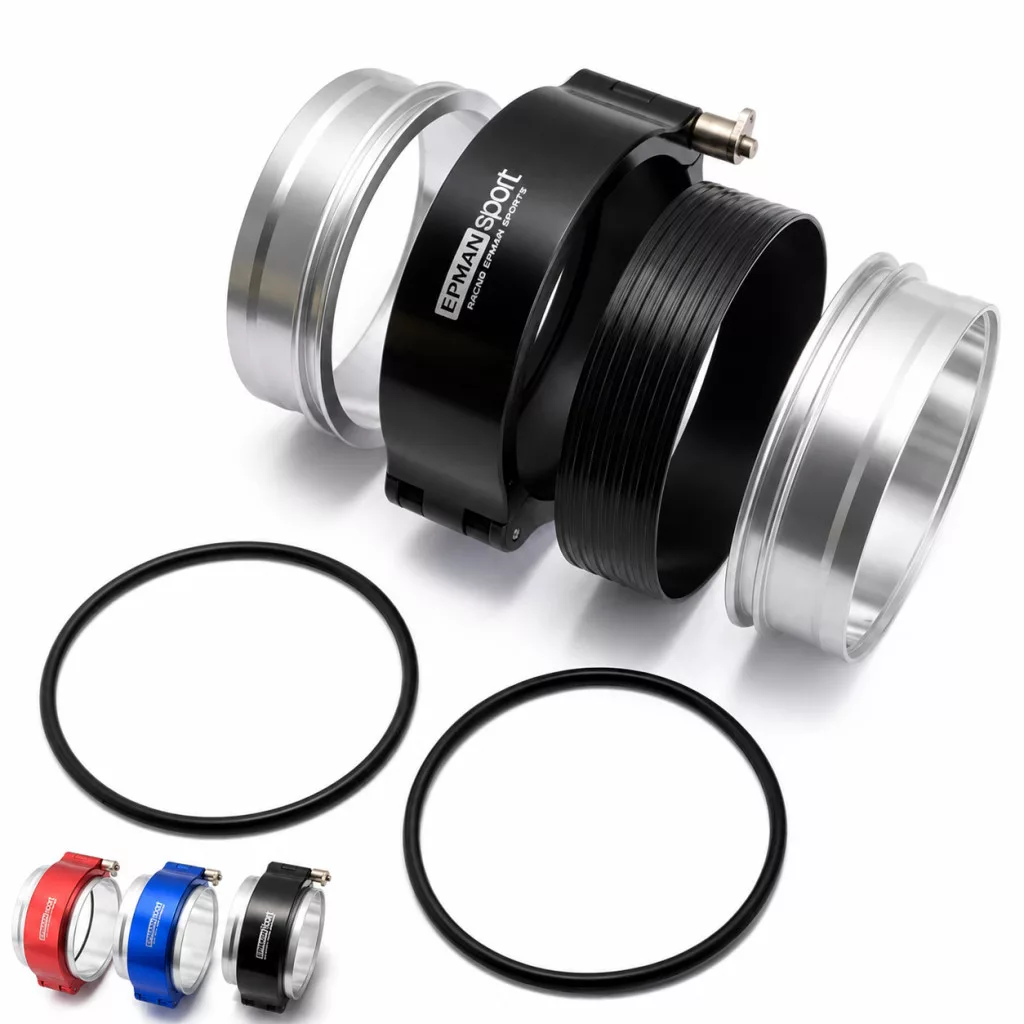

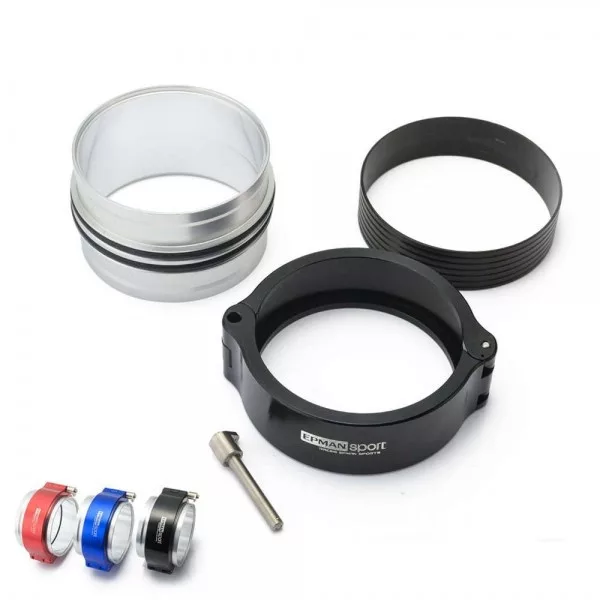

- Kit contents: clamp body, two aluminum weld ferrules with O-rings, union sleeve and locking pin
- Burst pressure rating: 800 psi, 55.2 bar
- Temperature resistance: up to 400°F, 204°C
Selection & installation tips
- Pipe size: measure the actual outside diameter and test-fit the 127 mm ferrules before welding.
- Pipe material: the supplied ferrules are aluminum, so verify compatibility between the tubing material and the selected welding process.
- Seals: remove the O-rings before welding and reinstall them only after the components have fully cooled and been cleaned.
- Alignment: position both ferrules concentrically on deburred pipe ends without assembly preload before completing the welds.
- Pin access: retain enough clearance to withdraw the locking pin fully and remove the clamp body.
Before installation, verify the actual pipe diameter, compatibility between the tubing and weld-on ferrules, the condition of the O-rings and access to the locking pin, then compare these points with the listed technical details.
Net price: 18 €
