Epman 2.5-Inch 63 mm Blue Intercooler Quick-Release Clamp Kit with Locking Pin
The Epman 2.5-inch blue intercooler quick-release clamp kit includes a solid 6061 aluminum clamp body, two weld-on aluminum ferrules, double O-ring sealing, a union sleeve and a removable locking pin. The pin-retained design allows the pipe connection to be separated without removing fastening bolts.
Key Features & Benefits – Epman 2.5-inch blue intercooler quick-release clamp kit with locking pin
The Epman 2.5-inch blue intercooler quick-release clamp kit with locking pin creates a weld-on, double O-ring connection for custom charge-pipe systems. The 63 mm (2.5-inch) nominal pipe size uses two aluminum ferrules that must be welded to the pipe ends.

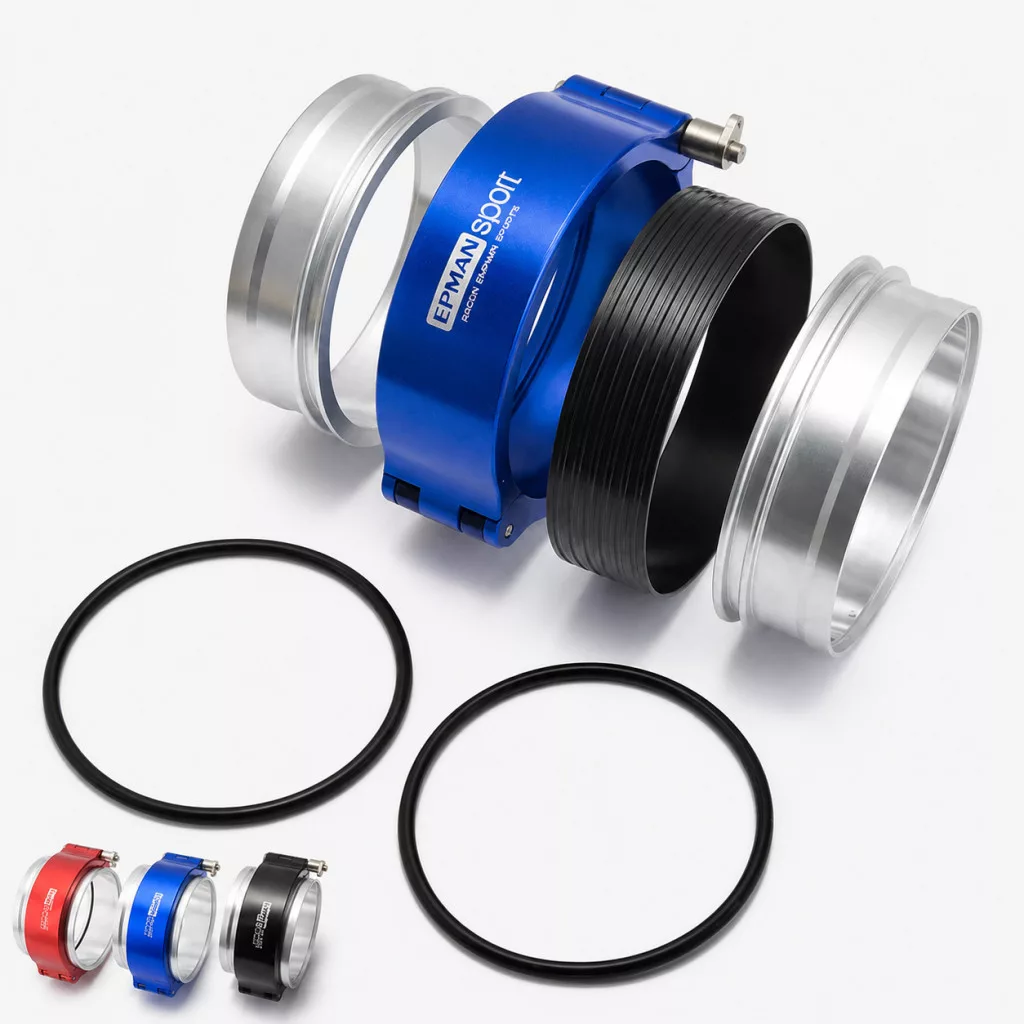

The outer clamp body is made from solid 6061 aluminum with a blue anodized finish. The kit includes two weld-on ferrules, O-rings, a union sleeve and a removable locking pin.
When is this useful?
The pin-retained design creates a removable connection point in custom turbo and intercooler piping. Pulling out the locking pin releases the clamp body, allowing the pipe section to be separated without removing fastening bolts.
Technical specs
- Part number: EPSS63KB-BL
- Product type: weld-on intercooler quick-release clamp kit

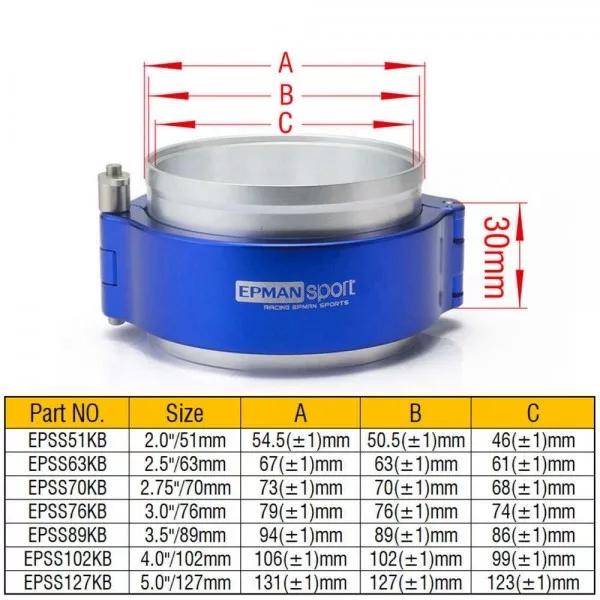

- Nominal pipe size: 2.5 inches, 63 mm
- Clamp body material: 6061 aluminum
- Colour and finish: blue anodized
- Fastening: removable locking pin

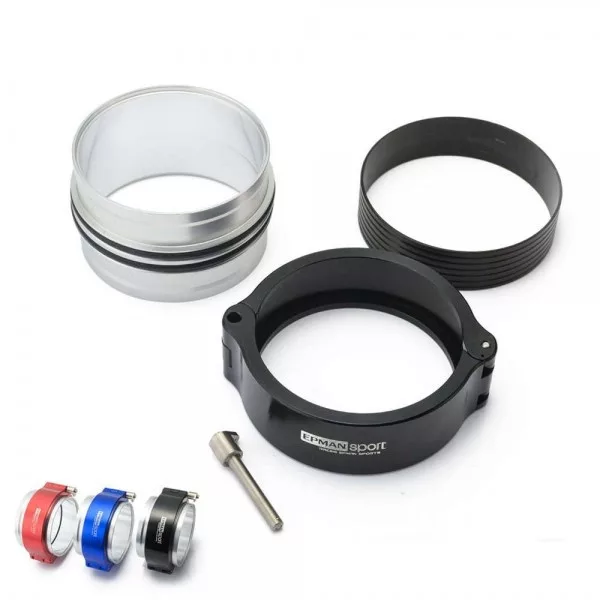

- Kit contents: clamp body, two weld-on aluminum ferrules, O-rings, union sleeve and locking pin
Selection & installation tips
- Pipe size: measure the actual outside diameter and test-fit the 63 mm ferrules before welding.
- Pipe material: verify that the tubing material and selected welding process are compatible with the aluminum ferrules.
- Seals: remove the O-rings before welding and reinstall them only after the components have fully cooled and been cleaned.
- Alignment: position both ferrules concentrically on deburred pipe ends without assembly preload before completing the welds.
- Pin access: retain enough clearance to withdraw the locking pin fully and remove the clamp body.
Before installation, verify the actual outside pipe diameter, compatibility between the tubing and weld-on ferrules, the condition of the O-rings and access to the locking pin, then compare these points with the listed technical details.
Net price: 18 €
