Key Features & Benefits – DEPO RACING WA 4in1 60mm 4-in-1 gauge

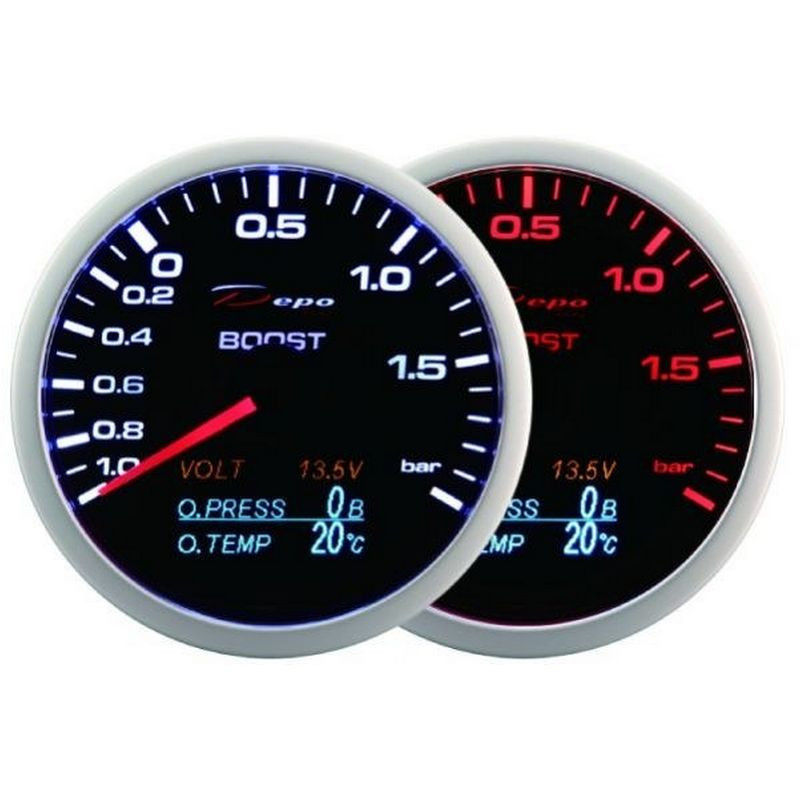

The DEPO RACING WA 4in1 60mm 4-in-1 gauge is a 60 mm instrument that combines boost, oil temperature, voltage, and oil pressure in a single display. It fits builds where space is limited but you still want multiple core readings in one location.
It performs automatic calibration at start-up and uses a Super White/Amber backlight mode. The smoked lens design keeps a clean look when the gauge is not lit.
When is this useful?
This is useful on turbo setups when you want to monitor boost together with key oil-side readings and system voltage, while only using one 60 mm gauge position. During a build or setup work it speeds up checks because you are not distributing the same information across multiple separate gauges.
Technical specs
- Diameter: 60 mm
- Functions: boost, voltage, oil pressure, oil temperature
- Start-up: automatic calibration
- Backlight: Super White/Amber
- Lens: smoked

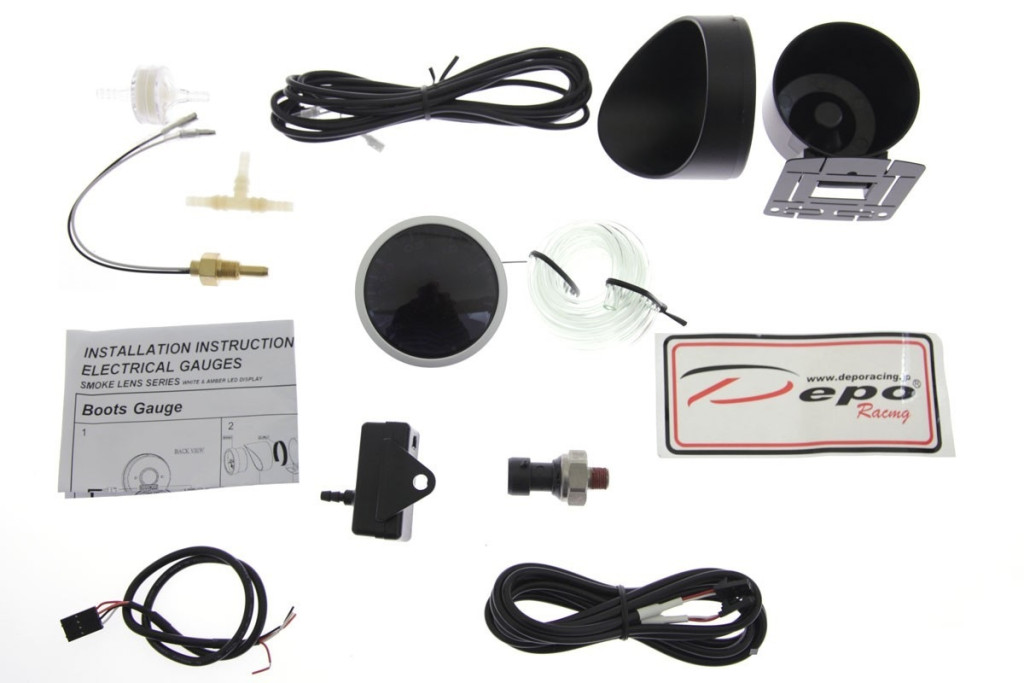

- Kit: gauge, sensors, wires, manual, sticker
Selection & installation tips

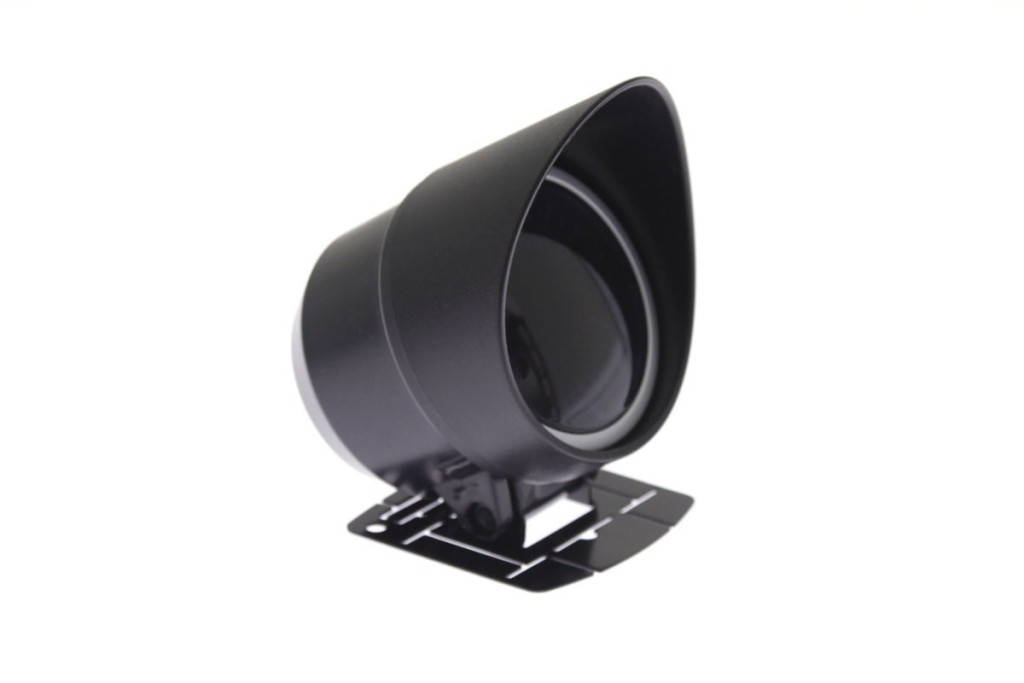

- Mounting space: plan a 60 mm pod or opening and confirm rear clearance for wiring.
- Sensor placement: for oil pressure and oil temp, plan sensor locations (adapter, distribution block, oil gallery) with service access in mind.
- Boost line routing: choose a suitable boost reference point and route the line away from heat and sharp edges.
- Electrical wiring: use stable power and ground points, and secure the loom against vibration and chafing.
- Post-start check: after calibration completes, confirm each reading responds to operating conditions as expected.
Before installation, match the 60 mm fitment, sensor locations, and routing paths to your exact vehicle layout, then compare your plan to the technical specs above to ensure each function can be connected and mounted correctly.
