Key Features & Benefits – DEPO RACING CSM 52mm mechanical boost pressure gauge 0 to 3 bar

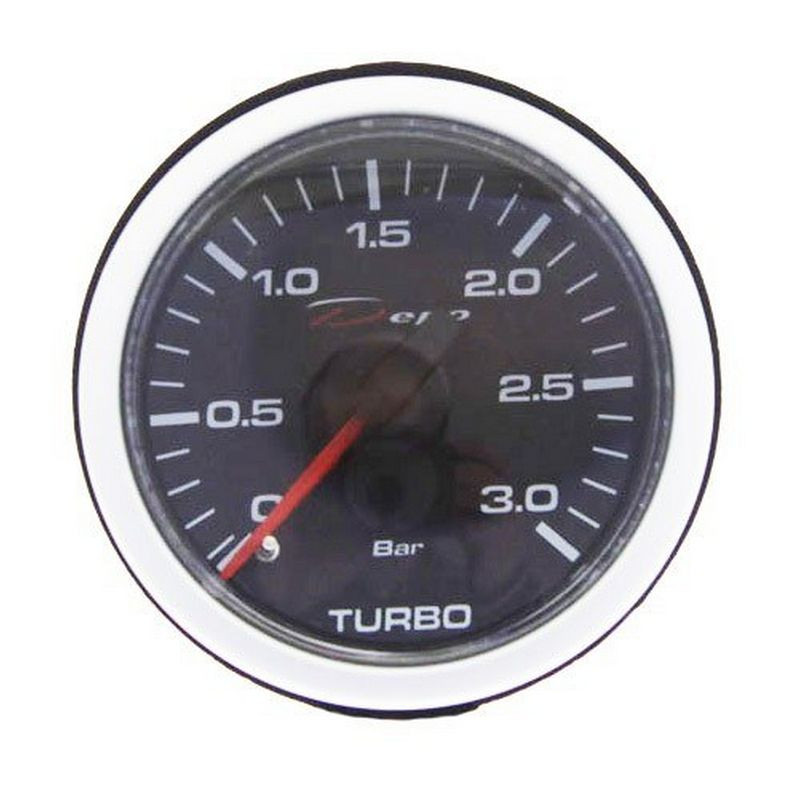

The DEPO RACING CSM 52mm mechanical boost pressure gauge 0 to 3 bar is built for monitoring boost pressure in a 52 mm format with a 0–3 bar scale. The gauge uses a Japanese stepper-motor needle drive to support accurate indication.
It features an effective start procedure with automatic calibration at every start-up. The gauge is illuminated in white, and the backlight is powered by a separate cable so the gauge can run with or without backlight, while the 35 mm mounting depth helps when space is limited.
When is this useful?
It is useful when you want to track boost behavior across load and RPM and quickly notice if boost build-up or steady-state pressure differs from what you normally see.
Technical specs
- Brand / series: DEPO RACING CSM
- Type: Mechanical boost pressure gauge
- Measuring range: 0 to 3 bar
- Diameter: 52 mm
- Mounting depth: 35 mm
- Illumination: White
- Function: Automatic calibration at every start-up
- Feature: Japanese stepper-motor needle drive
- Part number: DP-ZE-002

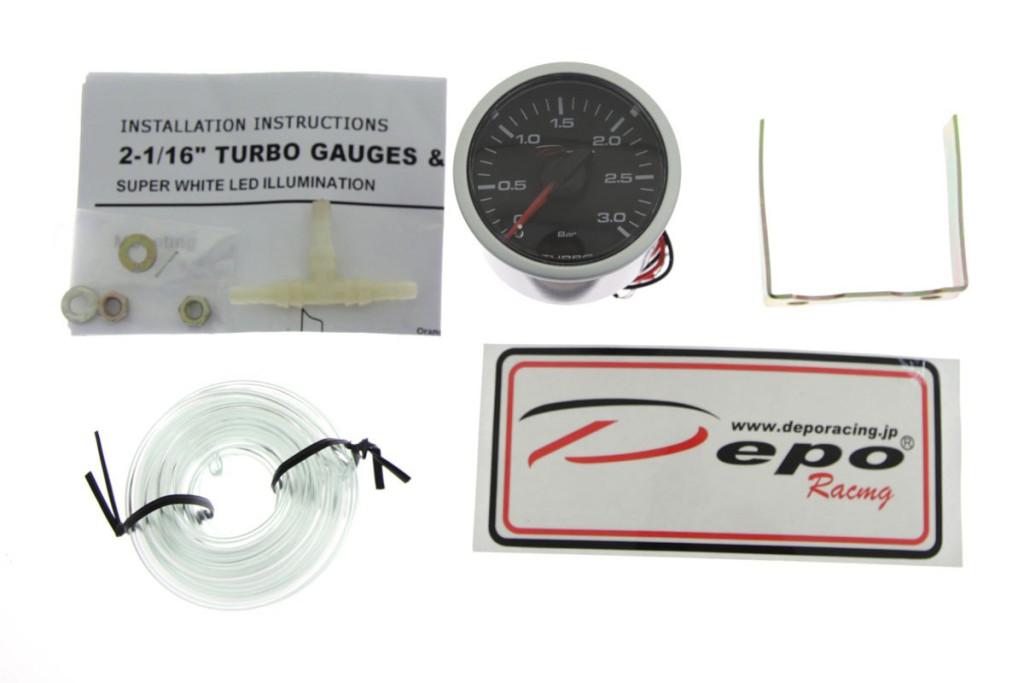

- Kit includes: Gauge; sensor; wiring; instruction; sticker; box
Selection & installation tips
- Fit check: Confirm a 52 mm opening and at least 35 mm clearance behind the mounting point.
- Pressure connection: Match the pressure signal source and connection method to your setup, using leak-free joints.
- Backlight wiring: The white backlight uses a separate power cable, so plan wiring so the gauge can be used with or without illumination.
- Readability: Place the gauge where the scale is easy to read and glare is minimized from your driving position.
- Start-up check: After installation, observe the start-up calibration and then confirm stable readings during a short loaded test.
Before installation, verify mounting clearance, pressure connection approach, and wiring route, then match them to the specs above for a clean fit.
