ADDCO Gauge 52mm - Turbo Boost Pressure

Key Features & Benefits – ADDCO 52mm boost gauge

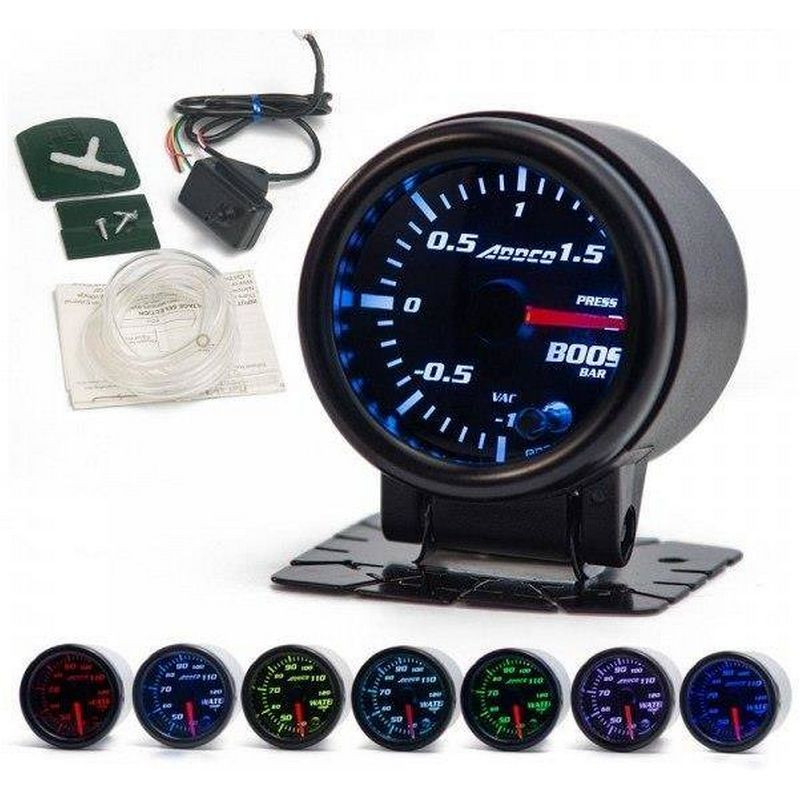

The ADDCO 52mm boost gauge is a 52 mm turbo pressure gauge that reads from -1 bar to 2.0 bar. Its universal 52 mm size fits vehicles that use a 52 mm gauge pod or a matching gauge opening.

A 7-color LED backlight (red, blue, yellow, cyan, green, purple, white) and a smoked lens support clear visibility. Color switching is done via a built-in control button, and the power supply is DC 10–15 V (12 V).

When is this useful?

It is useful when you want quick feedback on vacuum and boost during setup, troubleshooting, or load checks, where a fast and clear cockpit reference helps decision-making.

Technical specs

• Size: 52 mm (2")
• Range: -1 bar to 2.0 bar
• Power supply: DC 10–15 V (12 V)
• Max current draw: 0.3 A
• Backlight: 7 colors (red, blue, yellow, cyan, green, purple, white)
• Construction: black housing, smoked lens
• In the box: boost gauge, boost sensor, mounting bracket and gauge cup/cover, English user manual

Selection & installation tips

• Mounting size: confirm your pod/opening is 52 mm and choose a position with clear line-of-sight from the driver seat.
• Pressure reference: take the signal from a stable vacuum/boost source and route the line to avoid kinks and sharp bends.

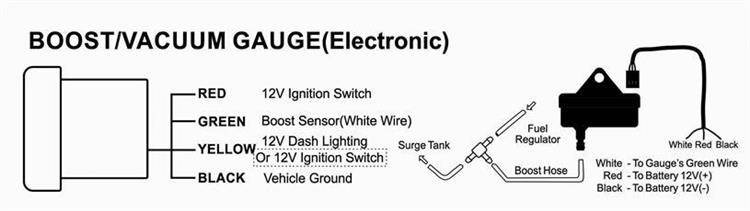

• Wiring: use a solid power and ground connection and secure the loom so it cannot rub or pull under vibration.
• Sensor & bracket mounting: mount the boost sensor and bracket on a stable surface so the setup stays fixed under load.
• Backlight setup: set the LED color with the control button so readability remains good in both day and night conditions.

Before final installation, verify the 52 mm mounting point, the pressure reference connection, and the electrical hookup, then compare your setup to the technical specs above to keep measurement and mounting stable.
