Key Features & Benefits – 180 degree aluminum intercooler pipe 63 mm 450 mm

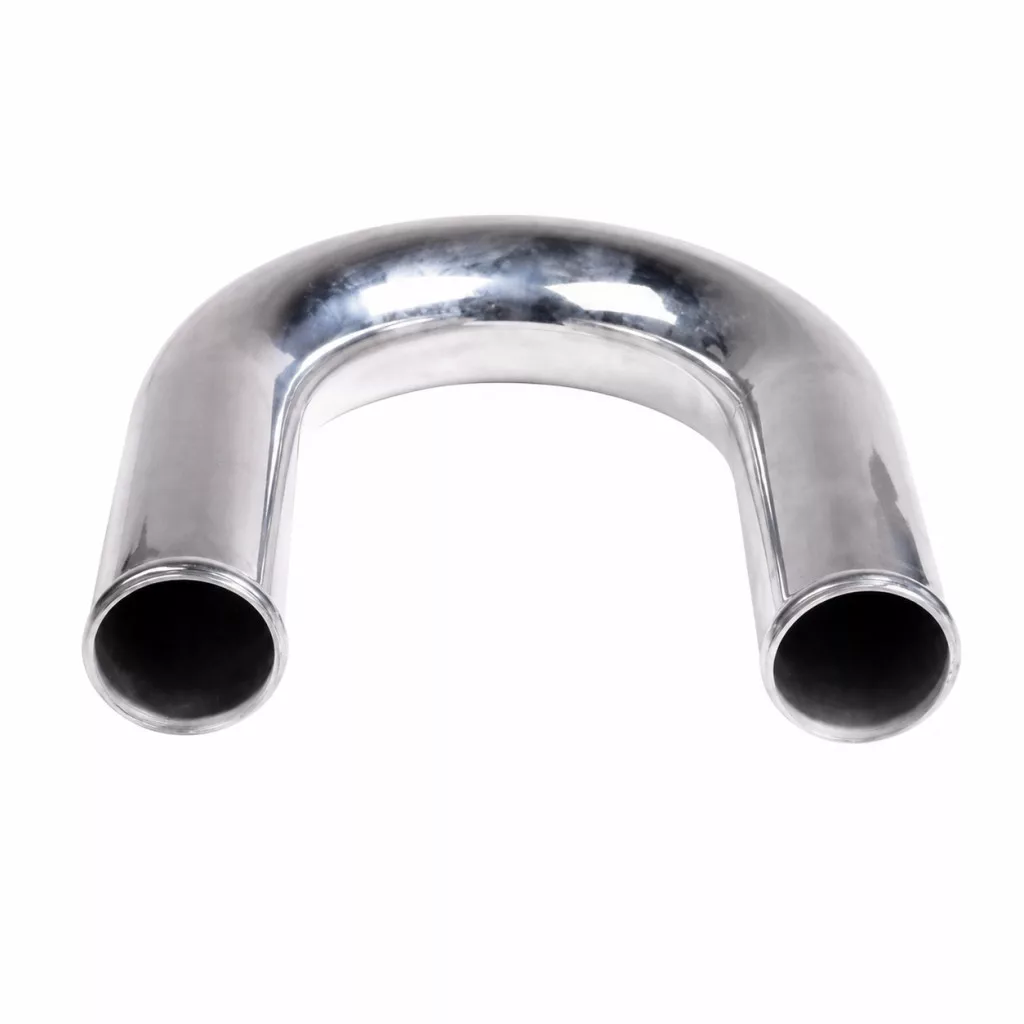

The 180 degree aluminum intercooler pipe 63 mm, 450 mm is a 63 mm (2.5") outer diameter, 450 mm long tube section with a 180 degree bend for custom intercooler, intake and cooling system piping. It suits universal applications where the setup is built around 63 mm pipe size and the routing needs a U-shaped return.
The aluminum construction, 1.8 mm wall thickness and polished surface give you a practical base for custom pipe routing or for replacing an existing section. The 450 mm length works well in layouts where both the bend and the available installation space matter.
When is this useful?
This size is useful in custom setups where 63 mm pipe diameter is required and the route needs a 180 degree return to reverse direction in a tighter section of the system.
Technical specs
- Product type: 180 degree aluminum intercooler pipe
- Material: aluminum
- Outer diameter: 63 mm (2.5")
- Length: 450 mm
- Shape: 180 degree pipe
- Wall thickness: 1.8 mm
- Surface: polished
Selection & installation tips
- Pipe size: check that the silicone coupler and clamp match the 63 mm outer diameter.
- Bend clearance: measure whether the full 180 degree bend fits the available space in your planned pipe route.
- Installed length: confirm that the 450 mm overall length matches the distance between connection points.
- Routing: verify that a full 180 degree return is the right layout choice instead of using two separate bent sections.
Before installation, verify the required outer diameter, the space needed for the 180 degree bend, the overall length, and the sizes of the connecting parts, then compare them with the listed details.
