Key Features & Benefits – 45 degree aluminum intercooler pipe 76 mm 450 mm

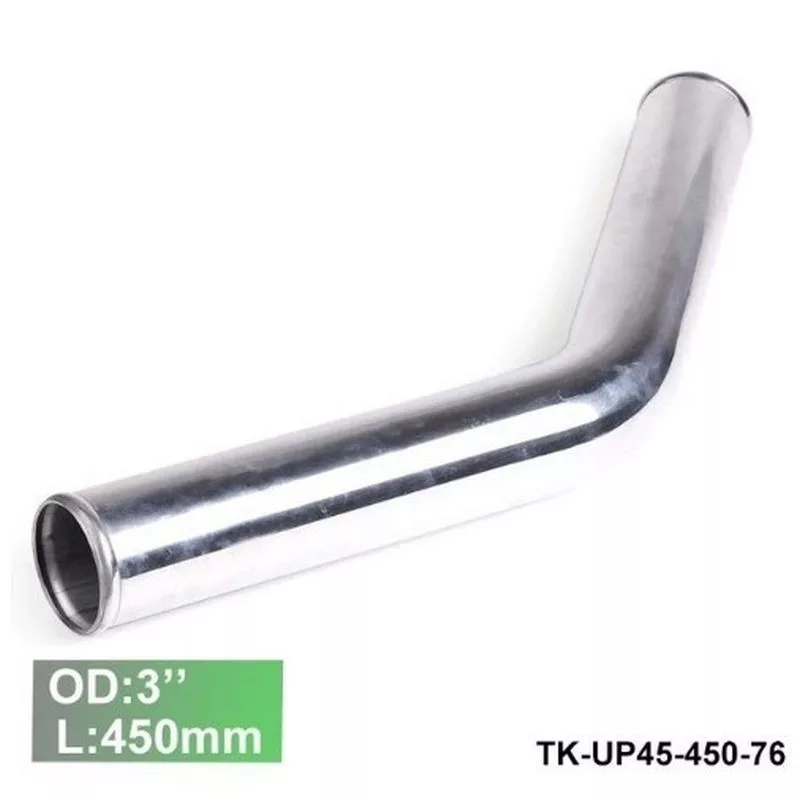

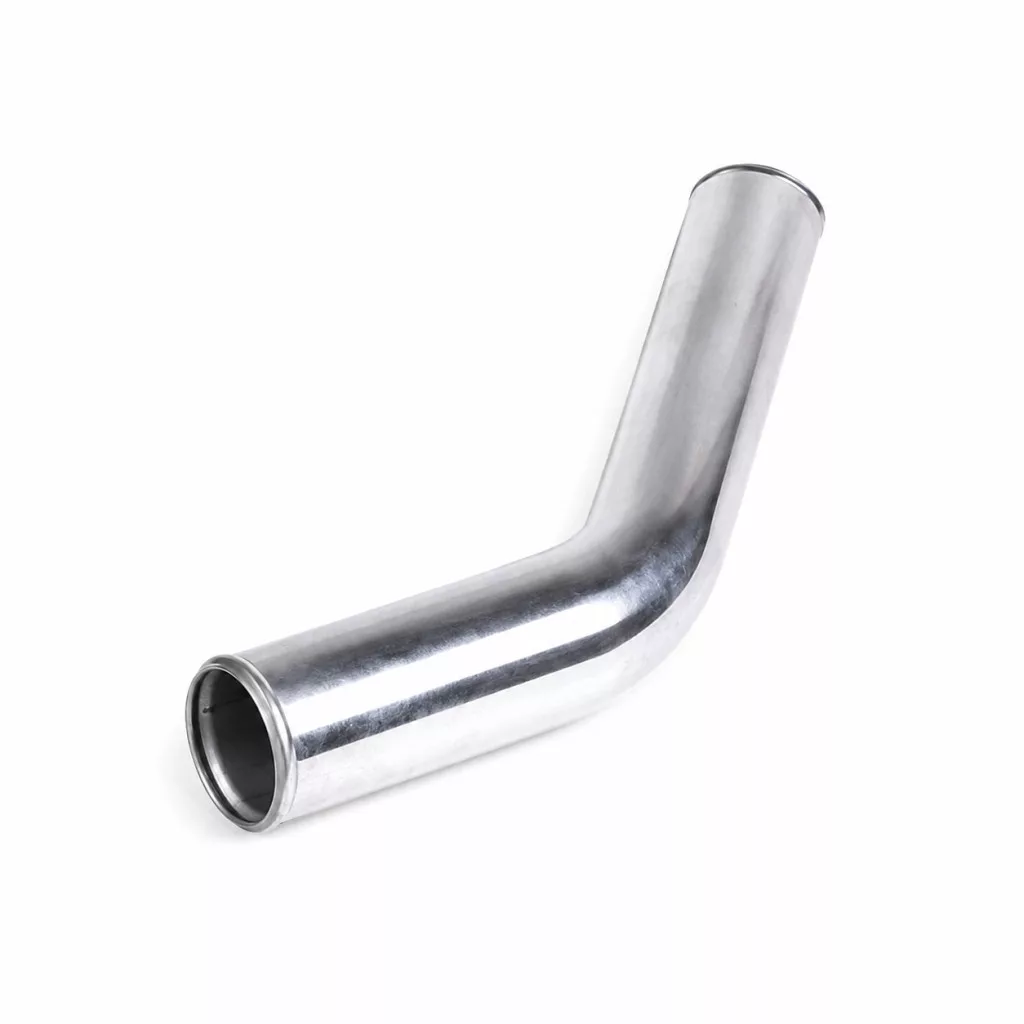

The 45 degree aluminum intercooler pipe 76 mm, 450 mm is a 76 mm (3") outer diameter, 450 mm long tube section with a 45 degree bend for custom intercooler, intake and cooling system piping. It suits universal applications where the setup is built around 76 mm pipe size and the routing needs a 45 degree change in direction.

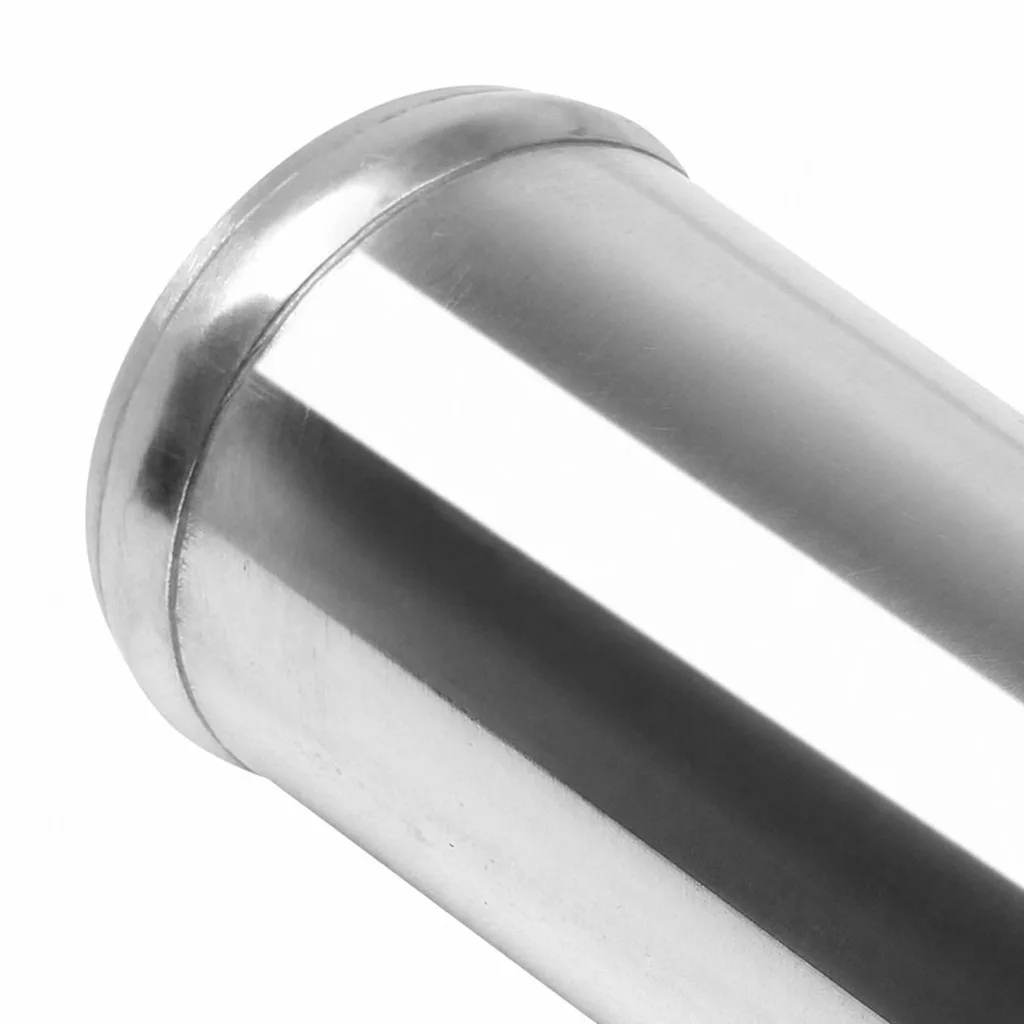

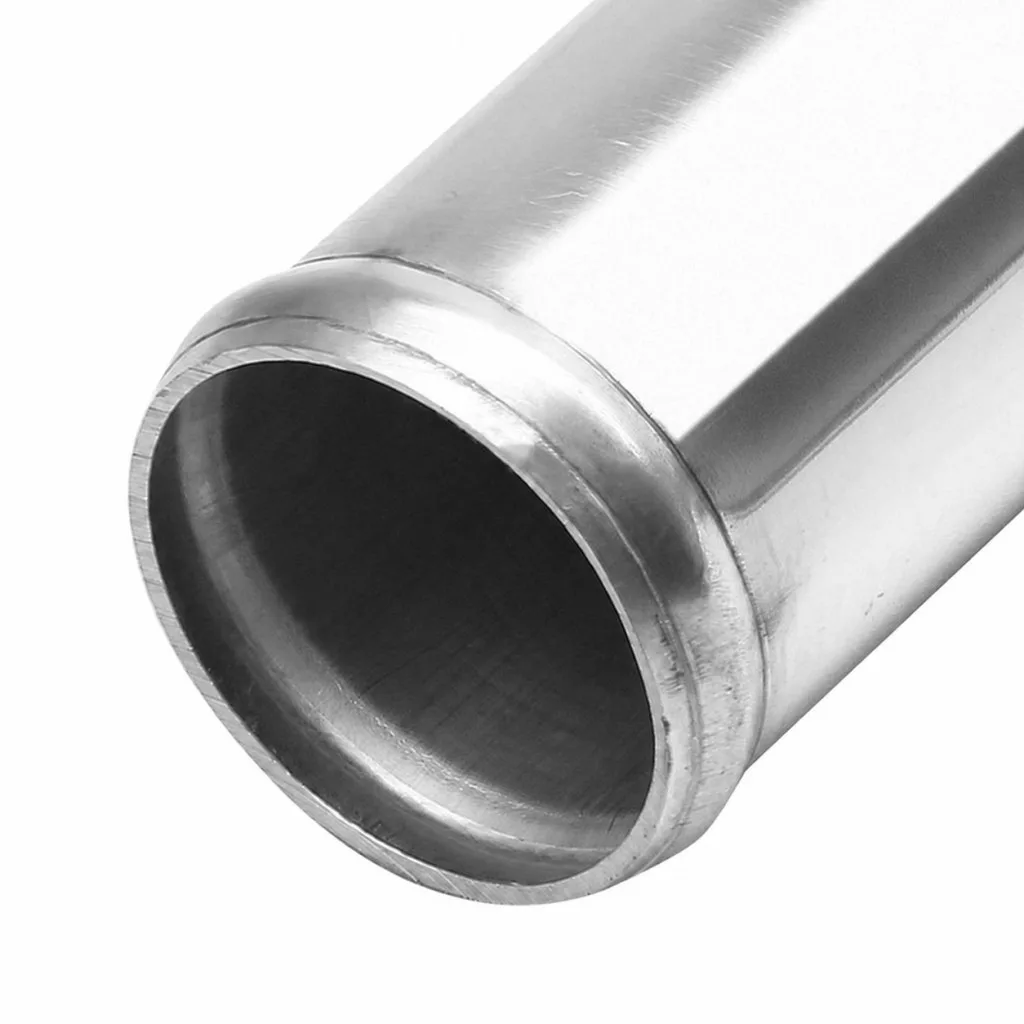

The T6061 aluminum construction, 1.8 mm wall thickness and bead-rolled ends make it a practical choice for stable coupler and clamp connections. The polished surface gives a clean finish, while the 450 mm length works well in many custom routing layouts.
When is this useful?
This size is useful in custom setups where 76 mm pipe diameter is required and the route needs a 45 degree bend instead of a straight section between connected components.
Technical specs
- Product type: 45 degree aluminum intercooler pipe
- Material: T6061 aluminum
- Outer diameter: 76 mm (3")
- Length: 450 mm
- Shape: 45 degree pipe
- Wall thickness: 1.8 mm
- Surface: polished
- End design: bead-rolled ends
Selection & installation tips
- Pipe size: check that the silicone coupler and clamp match the 76 mm outer diameter.
- Bend direction: confirm that the 45 degree bend matches the actual routing direction in your setup.
- Installed length: measure whether the 450 mm overall length fits the available space between connection points.
- End design: check that your chosen coupler and clamp seat correctly on the bead-rolled ends.
Before installation, verify the required outer diameter, the space needed for the 45 degree change in direction, the overall length, and the sizes of the connecting parts, then compare them with the listed details.
