Key Features & Benefits – 180 degree aluminum intercooler pipe 57 mm 600 mm

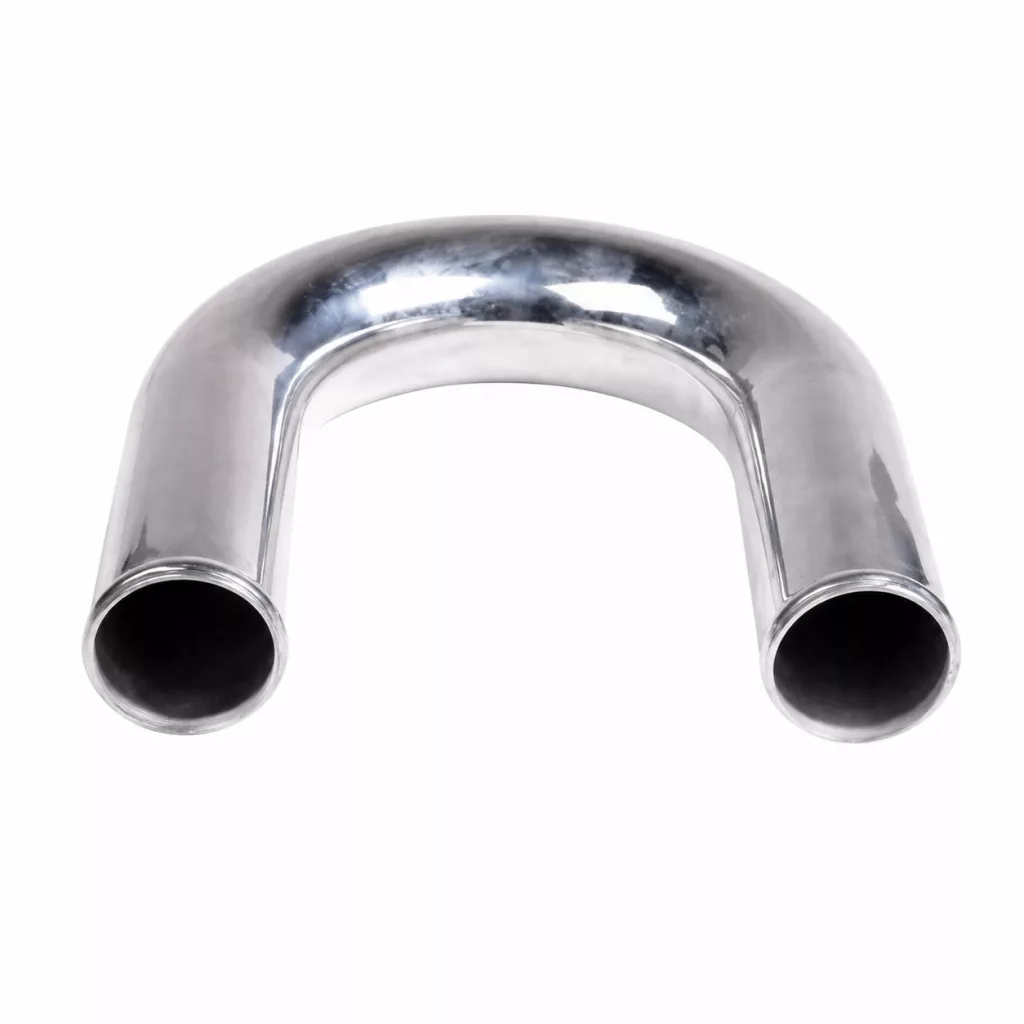

The 180 degree aluminum intercooler pipe 57 mm 600 mm is a 57 mm (2.25") outer diameter, 600 mm long tube section with a 180 degree bend for custom intercooler, intake and cooling system piping. It suits universal applications where the setup is built around 57 mm pipe size and the routing needs a U-shaped return.
The T6061 aluminum, 1.8 mm wall thickness, polished surface and bead-rolled ends make it a practical choice for stable coupler and clamp connections. The 600 mm length is useful when you want to cover both the bend and a longer pipe section with one part.
When is this useful?
This size is useful in custom setups where 57 mm pipe diameter is required and the route needs a 180 degree return to bring the pipe back toward the next connection point in a tighter layout.
Technical specs
- Product type: 180 degree aluminum intercooler pipe
- Material: T6061 aluminum
- Outer diameter: 57 mm (2.25")
- Length: 600 mm
- Shape: 180 degree pipe
- Wall thickness: 1.8 mm
- Surface: polished

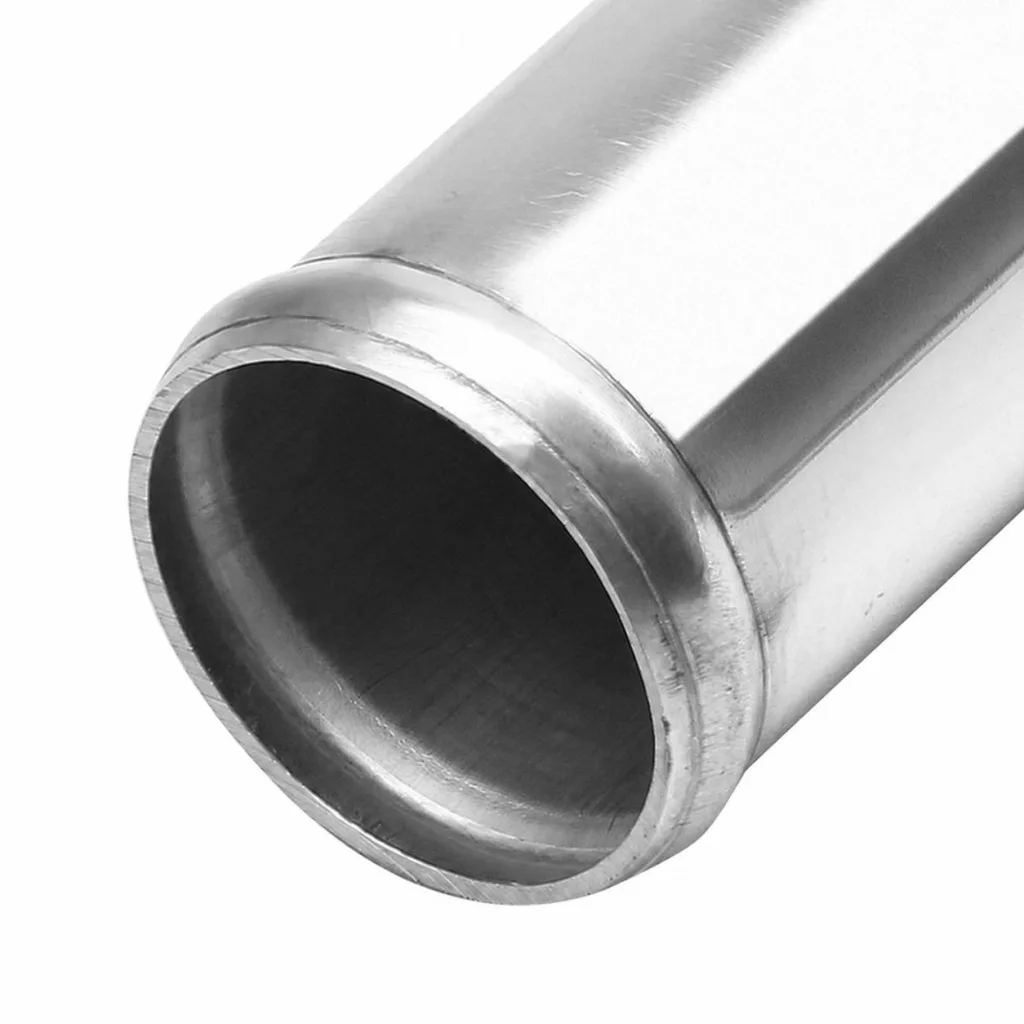

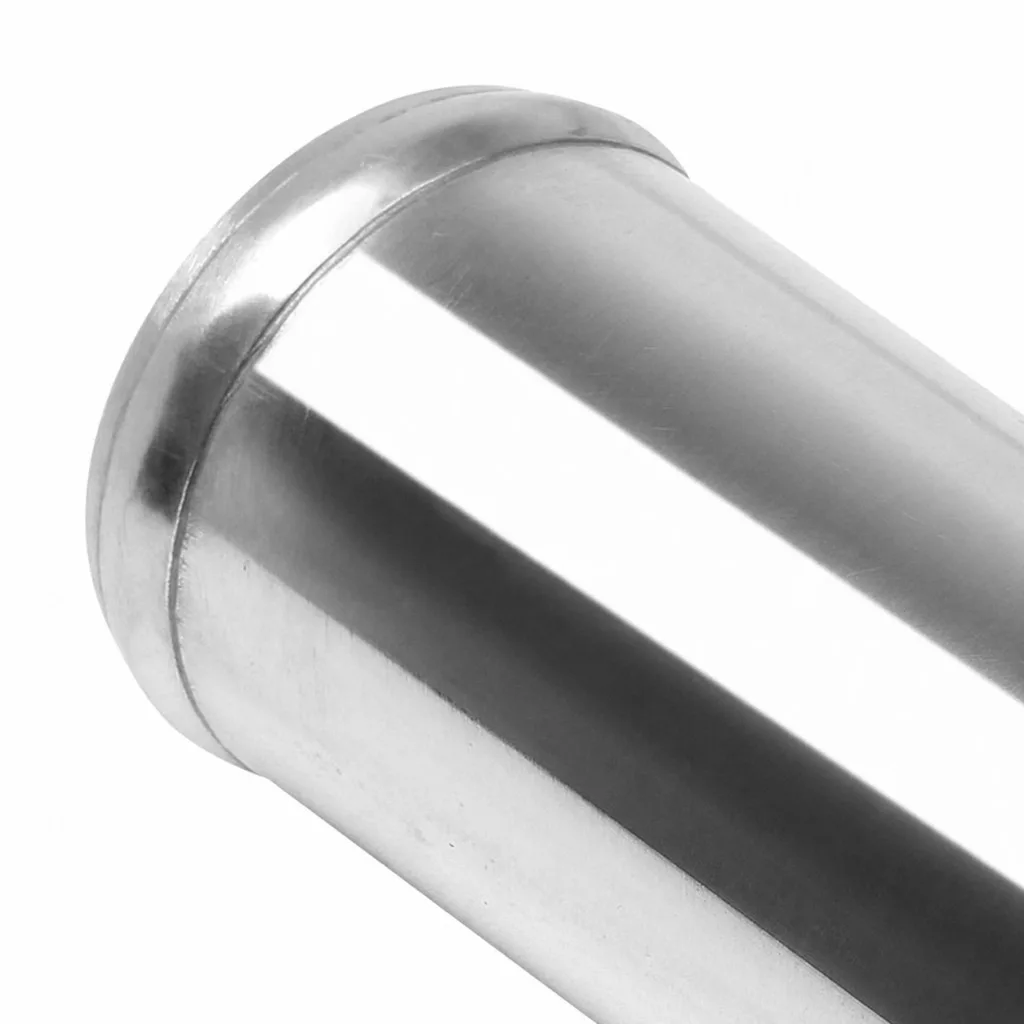

- End design: bead-rolled ends
Selection & installation tips
- Pipe size: check that the silicone coupler and clamp match the 57 mm outer diameter.
- Bend clearance: measure whether the full 180 degree bend fits the available space in your planned pipe route.
- Installed length: confirm that the 600 mm overall length matches the distance between connection points.
- Routing: verify that a full 180 degree return is the right layout choice instead of using two separate bent sections.
Before installation, verify the required outer diameter, the space needed for the 180 degree bend, the overall length, and the sizes of the connecting parts, then compare them with the listed details.
