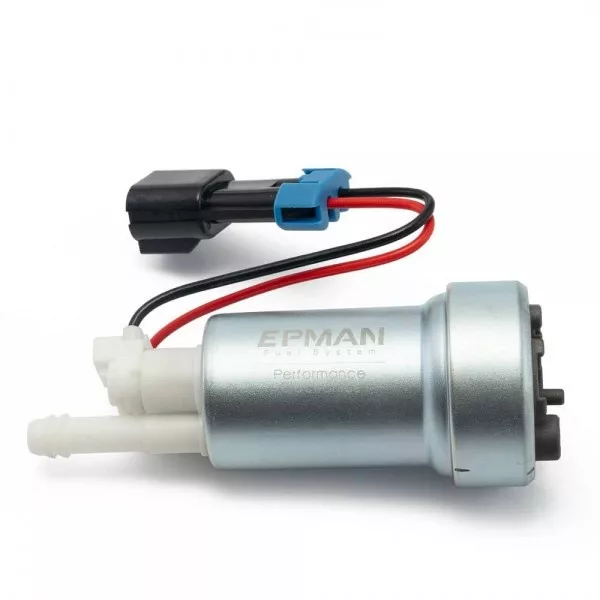

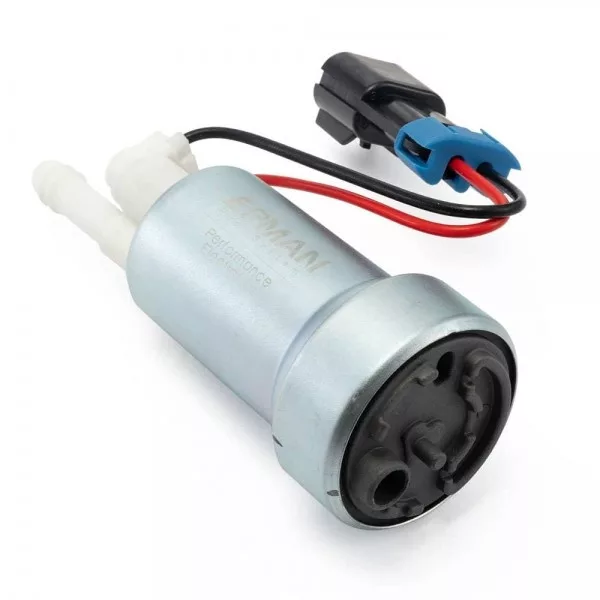

Key Features & Benefits – Universal in-tank EFI fuel pump (450 LPH), E85/gasoline, 12V – with install kit
Universal in-tank EFI fuel pump (450 LPH), E85/gasoline, 12V – with install kit is intended for in-tank installations where an EFI setup needs higher fuel delivery and E85-capable compatibility.
It is listed to operate across 35–87 psi total fuel pressure, and the included install kit supports common module/plumbing adaptations; the product description notes that wiring, fuel lines, and the fuel module may require modification.
When is this useful?
Useful for higher-demand EFI builds running gasoline or E85 blends where the stock in-tank module becomes a restriction and consistent fuel delivery under load is the goal.
Technical specs
- Type: in-tank EFI fuel pump
- Fuel compatibility: gasoline, E85/ethanol blends
- Rated category: 450 LPH
- Listed performance: 465 LPH at 40 psi and 13.5V
- Listed current draw: 14.1A at 40 psi and 13.5V
- Operating pressure listing: 35–87 psi
- Outlet size: 10 mm (3/8")
- Upper body diameter: 39 mm
- Lower body diameter: 50 mm
- Identifier: EP-RYB267
- Reference: TIA485-2 / F90000267

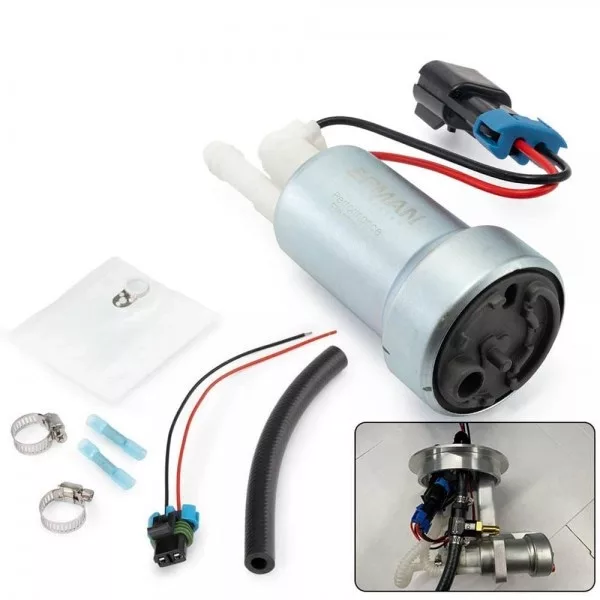

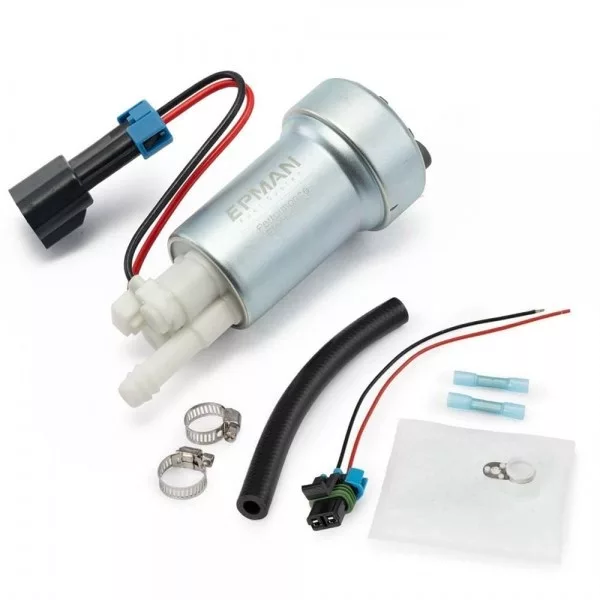

- In the box (install kit): fuel strainer, fuel hose, harness pigtail, 2× clamps, 2× wire connectors (as pictured)
Selection & installation tips
- Confirm your fuel module has clearance for the 39/50 mm body and that the pump can be retained securely.
- Match the outlet plumbing to the 10 mm (3/8") outlet using suitable hose and clamps.
- Plan for possible modifications as noted: wiring, fuel lines, and the module may need changes to fit and function correctly.
- Check voltage at the pump under load—listed flow is specified at 13.5V, and lower voltage can reduce real-world delivery.
- For E85 use, verify the rest of the fuel system (hoses, seals, filters, regulator) is also ethanol-compatible.
Before fitting, self-verify module space, outlet size, pressure requirements, and electrical supply against the specifications listed above to ensure safe system compatibility.
