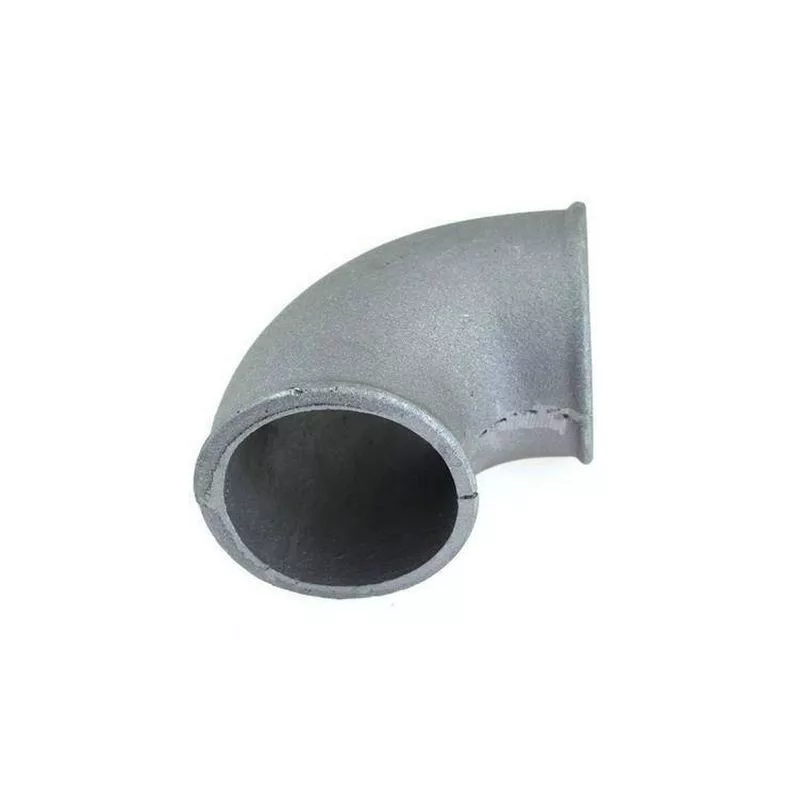

Key Features & Benefits – Tight radius cast aluminium elbow 90 degree, 63 mm
The tight radius cast aluminium elbow 90 degree, 63 mm is a universal part designed for space-saving pipe routing. With a 63 mm outer diameter and a 90 degree bend, it suits builds where clearance is limited.
Made from cast aluminium with an excellent weld-friendly base material, it’s a practical choice for custom intake, turbocharger and intercooler connections. Because it’s universal, final fit depends on your routing, joining method and end preparation.
When is this useful?
If you need a compact 90° turn in turbo or intercooler piping, this elbow helps you create a clean direction change where a larger-radius bend would clash with surrounding components.
Technical specs
- Material: Cast aluminium
- Outer diameter: 63 mm
- Angle: 90 degree
- Radius: Tight, space-saving design
- Weldability: Excellent weld-friendly material
- Applications: Intake systems, turbocharger and intercooler connections
- Part number: EP-EP-102
Selection & installation tips
- Diameter match: confirm your connections are designed around a 63 mm outer diameter.
- Clearance check: validate the tight-radius bend clears nearby parts and points the outlet in the intended direction.
- Welding prep: clean the weld area and mock up the routing before final welding.
- Joining length: ensure there’s enough straight section for secure coupler-and-clamp joining where applicable.
- Edge finish: inspect the ends and deburr if needed for consistent fit and sealing.
Before installation, verify the 63 mm connection size, the 90 degree routing requirement and your joining method, then compare them to the specs listed above to confirm a clear match.
