Key Features & Benefits – Carbon style switch panel with start button
The Carbon style switch panel with start button is a universal switch panel for 12V systems, built for convenient control of starting and multiple accessory circuits. It can be used to control items like LED lights, fog lights, or interior lighting when you want a compact, easy-to-read control point.

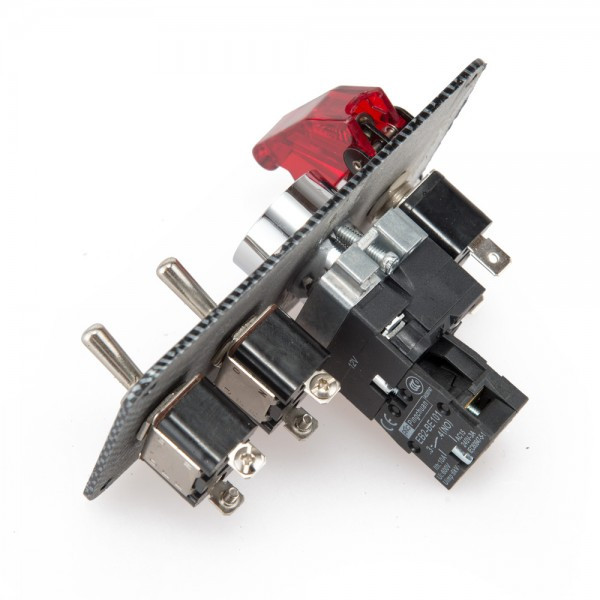

The face includes a push start button, plus 1 flip-up covered switch and 2 toggle switches. It uses an aluminum and plastic construction with a carbon style front; rated at 30A, with an electrical life of up to 50,000 operations, and a 15 x 6.5 cm overall size.
When is this useful?
This is useful for race cars, RVs, and tuning projects when you want a single panel to manage start/ignition-style control and several accessories, keeping wiring organized and switches clearly separated.
Technical specs
- System: universal 12V
- Rated current: 30A
- Electrical life: up to 50,000 operations
- Size: 15 x 6.5 cm
- Material: aluminum and plastic, carbon style front
- Mounting: pre-drilled mounting holes

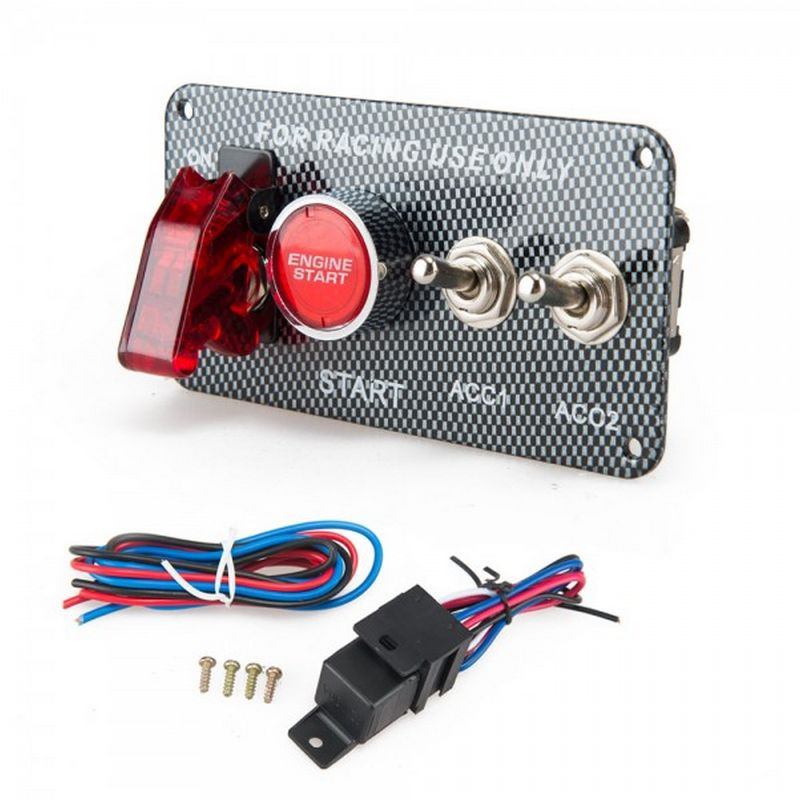

- In the box: panel, wiring, relay, screws
Selection & installation tips
- Mounting space: confirm room for a 15 x 6.5 cm panel and leave clearance behind for connectors, wire bend radius, and the relay.
- 12V compatibility: verify your vehicle is 12V and your planned loads are suitable for the panel’s 30A rating.
- Circuit planning: decide which accessories go on the two toggles and which circuit should be isolated via the flip-up covered switch.
- Relay and protection: use the included relay for higher loads and protect each circuit with fusing matched to the accessory and wiring.
- Wiring routing: secure the harness against vibration and abrasion and keep it away from heat sources for stable long-term contacts.
Before installation, self-check 12V system fit, available mounting space for the 15 x 6.5 cm panel, and that your loads and circuit protection align with the 30A rating, then compare your plan to the technical specs listed above.
