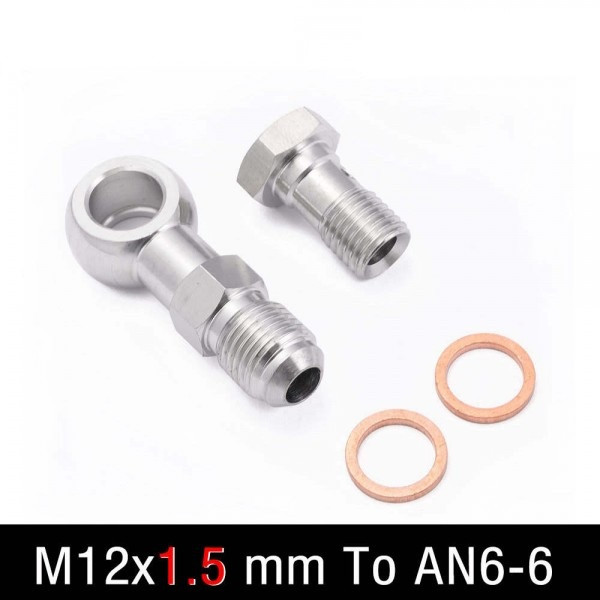

Key Features & Benefits – Stainless steel M12x1.5 to AN6 banjo bolt kit with 12 mm bore
The stainless steel M12x1.5 to AN6 banjo bolt kit with 12 mm bore is a universal adapter solution for brake systems and other fluid lines when you need an M12x1.5 banjo connection converted to an AN6 line. Stainless steel construction suits durable installations, and CNC machining supports consistent fitment.
Functionally, it can be used for brake systems, clutch lines, turbo oil lines, oil pressure plumbing and cooling connections when the banjo layout and AN6 routing match your setup. The 12 mm internal bore is a key check point for expected flow.
When is this useful?
It is useful when your build uses AN6 hose routing and you want a consistent connection on an M12x1.5 port, for example in a brake or clutch application.
Technical specs
- Product type: Banjo bolt kit / adapter
- Thread: M12x1.5
- Connection: AN6
- Material: Stainless steel
- Colour: Silver

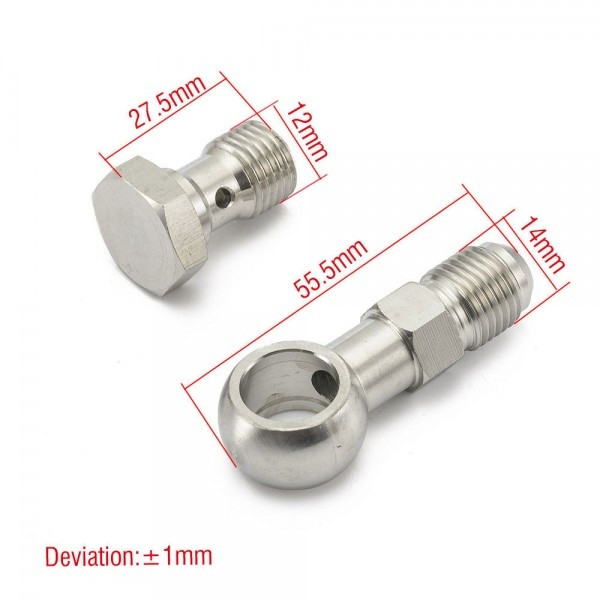

- Internal bore: 12 mm (0.47")

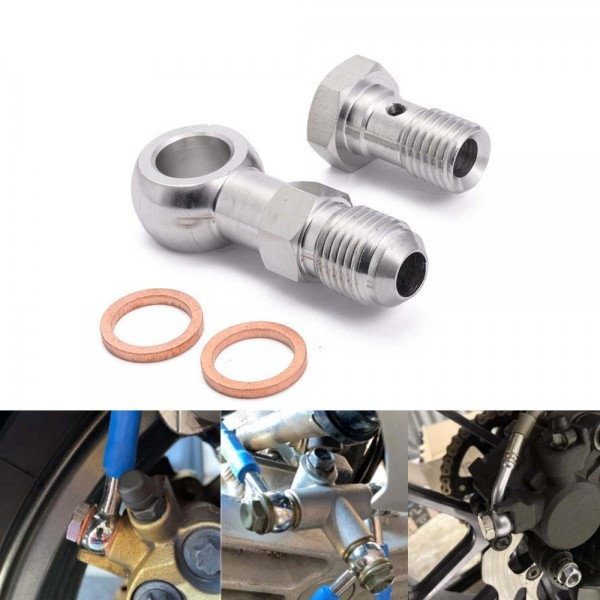

- Applications: Brake system; clutch line; turbo oil line; oil pressure plumbing; cooling system

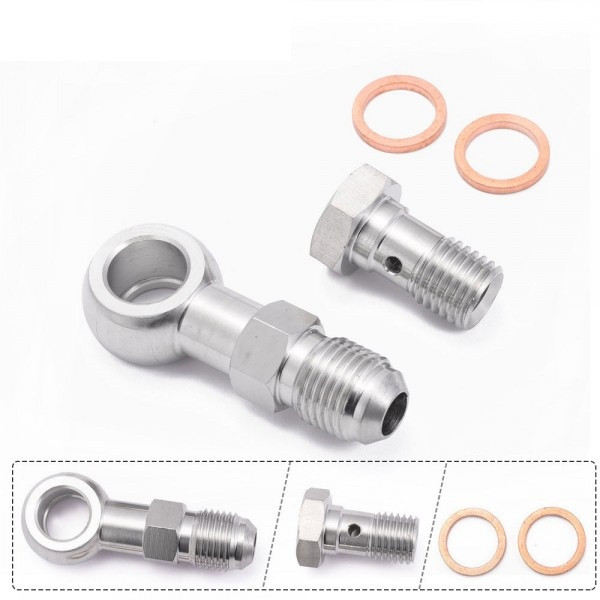

- Package includes: 1x banjo bolt hose fitting; 1x bolt; 2x washers
- Part number: EPCGQ240
Selection & installation tips
- Thread check: Confirm the receiving port is M12x1.5 and there is enough thread engagement for a secure seat.
- Bore & flow: Compare the 12 mm bore with your system requirements, especially if higher flow is expected.
- Banjo eye & washers: Verify banjo eye sizing and use the two washers to seal on both sides of the banjo eye.
- AN6 match: Confirm your hose and fittings are AN6 and the connection geometry works with your routing.
- Leak check: After assembly, inspect the joint under operating pressure and re-check the area after initial use.
Before installation, verify thread, banjo eye and washer sizing, and AN6 fit, then match them to the technical specs above for a reliable connection.
