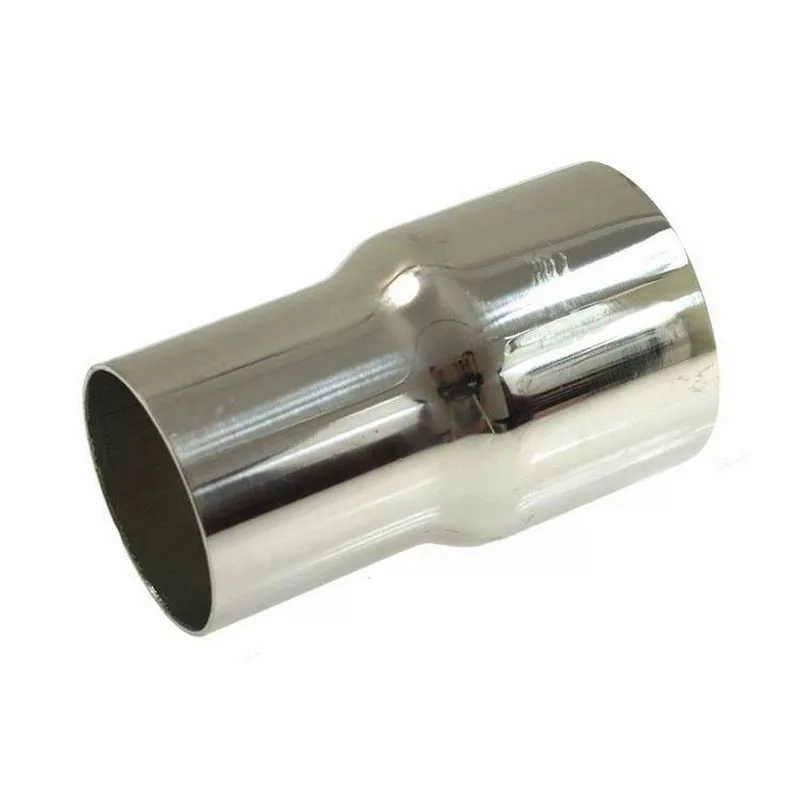

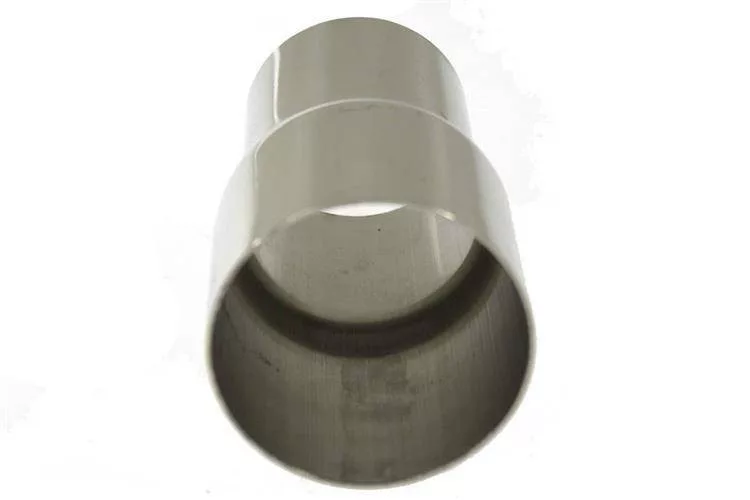

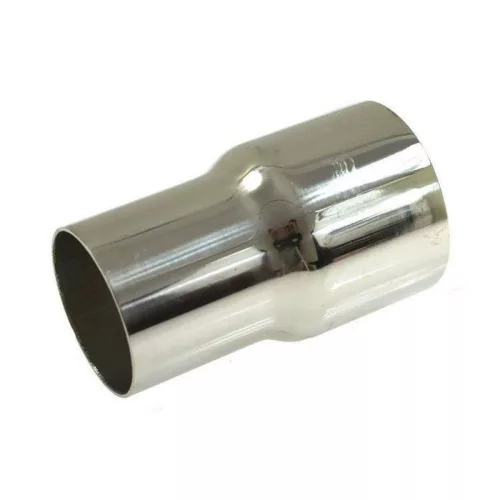

Stainless Steel Exhaust Pipe Reducer - Diameter 2"- 3"mm (51-76mm) - Lenght 125mm
304SS stainless steel pipe reducer for 51–76 mm diameter transition with 125 mm overall length, for universal use in exhaust and intake piping. A practical choice when you need a clean step between two different tube sizes in a compact space.
Net price: 5 €
Key Features & Benefits – Stainless steel exhaust pipe reducer 51–76 mm
The Stainless steel exhaust pipe reducer 51–76 mm is a universal transition piece for intake and exhaust piping, providing a connection between 51–76 mm diameter (2"–3") tube sizes.
Made from 304SS stainless steel for corrosion resistance, with a 125 mm length that suits compact installations where you plan the final fit by trimming and positioning the joining sections.
When is this useful?
It is useful when you need to step from 51 mm to 76 mm (or the other way around) and want a stable, sealed connection using your preferred clamped or welded joint method.
Technical specs
- Type: Pipe reducer / transition
- Diameter range: 51–76 mm (2"–3")
- Length: 125 mm
- Material: 304SS stainless steel
- Application: intake and exhaust systems
Selection & installation tips
- Size definition: confirm whether your mating tubes require OD or ID matching, then plan the correct fit.
- Overlap planning: mark insertion depth on both sides so you keep enough overlap for clamps or welding.
- Joint method: decide clamped vs welded joints first and prep the tube ends accordingly.
- Routing alignment: dry-fit to confirm axes and nearby bends so the reducer is not installed under stress.
- Clearance check: verify surrounding clearance so heat expansion and vibration cannot cause contact.
Before final assembly, measure the mating tube diameters, plan overlap and joint type, then compare those requirements to the 51–76 mm and 125 mm specs above to ensure the reducer fits your system as intended.
