Stainless Steel Elbow 90 Degree - 63mm

Key Features & Benefits – stainless steel elbow 90 degree 63mm

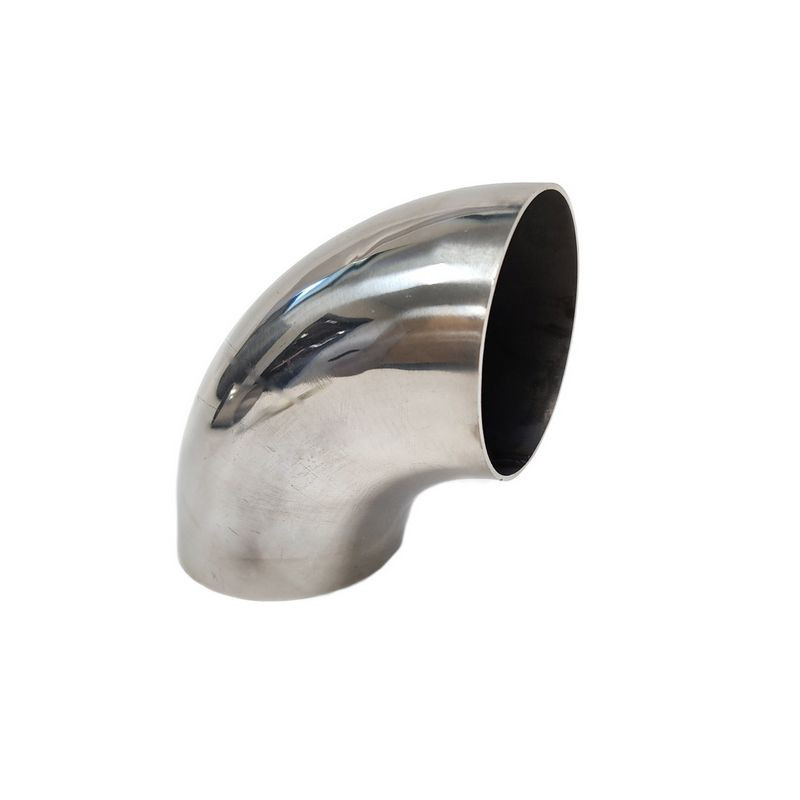

The stainless steel elbow 90 degree 63mm is a weld-on bend designed to create a clean, accurate 90-degree change of direction in custom pipework. It is functionally intended for 63mm outer diameter tubing, so checking mating tube dimensions before fabrication helps ensure proper fit-up.

Made from 304 stainless steel with a 1.5mm wall and a polished surface, it suits intake and exhaust builds where routing and packaging require a tight, predictable turn. With welded joints, it allows you to position and tack the assembly before final welding.

When is this useful?

Use it when you need a precise 90-degree turn in 63mm tubing and want a weldable section that can be test-fitted, aligned and trimmed as part of a custom intake or exhaust layout.

Technical specs

• Material: 304 stainless steel
• Design: 90-degree elbow
• Outer diameter: 63mm
• Wall thickness: 1.5mm
• Surface: polished

Selection & installation tips

• OD check: measure the actual outer diameter of your mating tubes and match it to 63mm for correct fit-up.
• Wall thickness: confirm the tube wall and set welding parameters for around 1.5mm material to reduce burn-through risk.
• Clearance: trial-fit the elbow in place and verify clearance to nearby parts throughout the 90-degree sweep.
• Cut and clocking: mark orientation and cut lines during dry assembly so the turn lands exactly where you need it.
• Weld prep: deburr and clean the edges, then tack in position before final welding to keep alignment stable.

Before installation, verify the 63mm outer diameter match, welding setup for 1.5mm wall material and the space required for the 90-degree turn, then compare these checks to the listed technical specs.
