Key Features & Benefits – Stainless steel elbow 90deg 34 mm

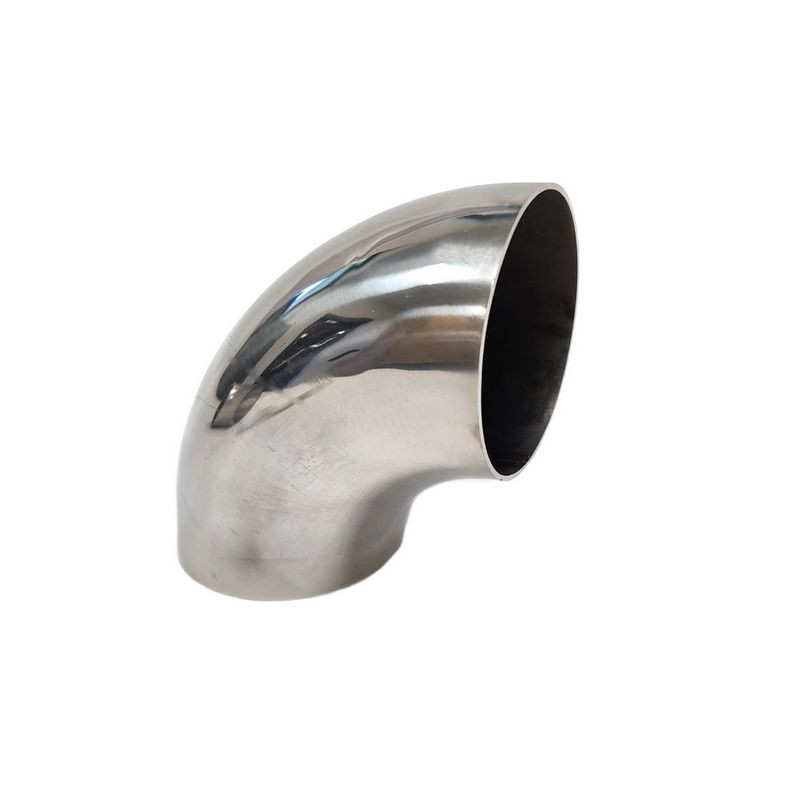

The Stainless steel elbow 90deg 34 mm is a universal 90-degree elbow section made from SS304A2 (304) stainless steel. It is suitable for building intake and exhaust systems.
The 34 mm diameter and 90deg turn are practical when you need a neat direction change in tight packaging, or when connecting straight sections with a predictable bend.
When is this useful?
It fits custom piping work where the layout requires a 90-degree turn and you want to match the ends to your chosen clamps, sleeves, or welding approach.
Technical specs
- Type: 90deg elbow
- Diameter (D): 34 mm
- Angle: 90deg
- Material: SS304A2 (304) stainless steel
- Use: intake and exhaust systems
Selection & installation tips
- Diameter check: measure the mating tube size (OD/ID as relevant) and match it to the 34 mm elbow interface you need.
- Clearance check: confirm nearby component and movement clearance so the bend does not touch or preload the routing.
- Joint plan: decide on welded or clamped joints first, then pick compatible couplers, clamps, or flanges.
- Orientation: dry-fit and rotate the elbow to lock in the correct axis and angle before final joining.
- Joint surfaces: clean the mating areas before assembly so the joint seats properly and the routing stays aligned.
Before final assembly, verify the key dimensions and packaging on your own setup and match your connectors to the specs listed above.
