Key Features & Benefits – stainless steel 90° exhaust elbow 3" / 76 mm

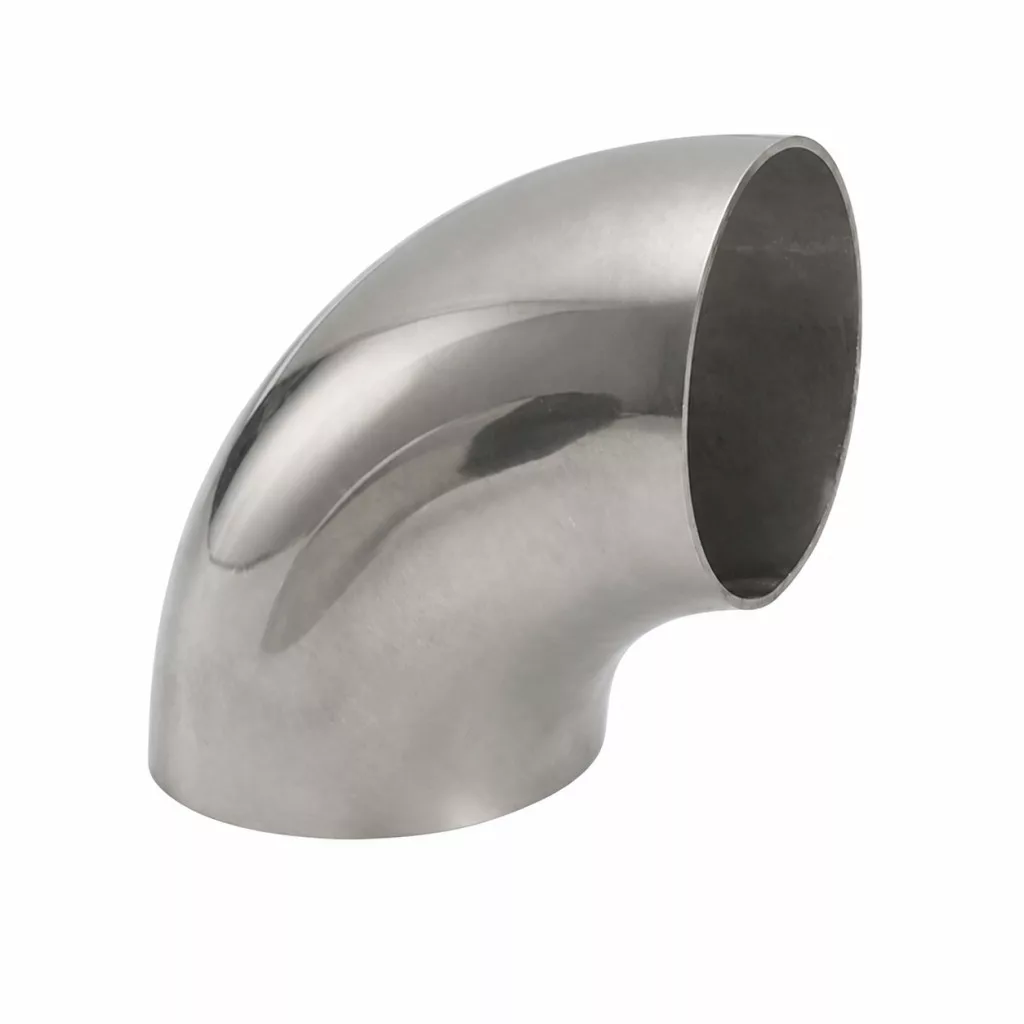

The stainless steel 90° exhaust elbow 3" / 76 mm is a weldable exhaust elbow with 76 mm outer diameter for changing direction in custom exhaust and downpipe sections. Its functional compatibility is tied to 76 mm outer-diameter tubing and a welded connection.
SS304 stainless steel, a 90° bend, and 1.5 mm wall thickness make it suitable for fabricated exhaust routing. A 117 mm elbow height and 79 mm radius help you check packaging space before cutting and welding.
When is this useful?
This is useful when a 76 mm tube section needs a 90° direction change while keeping a clean welded route in a custom exhaust, downpipe, or transition section.

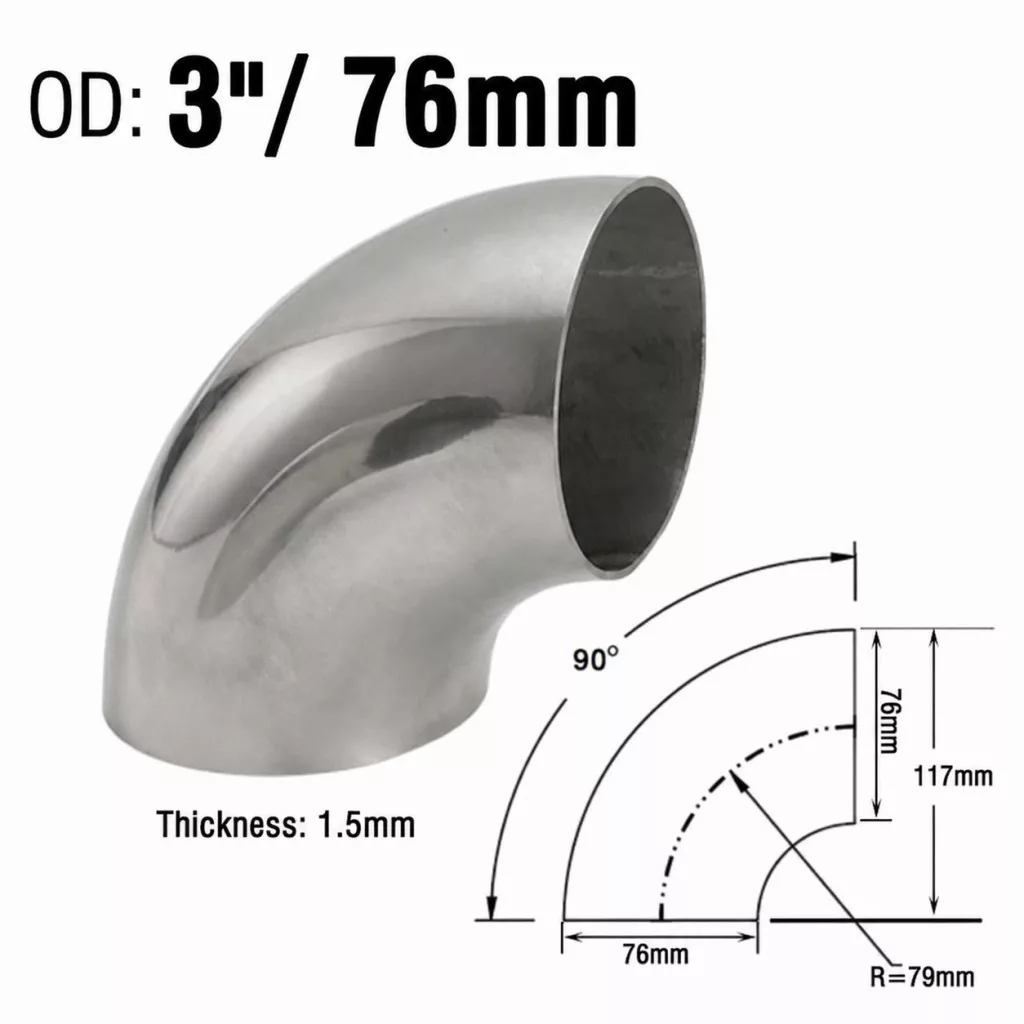

Technical specs
- Material: SS304 stainless steel
- Outer diameter: 3" / 76 mm
- Angle: 90°
- Wall thickness: 1.5 mm
- Elbow height: 117 mm
- Radius: 79 mm
Selection & installation tips
- Tube size: check that the mating tube has a 76 mm outer diameter and that the wall thickness suits the weld you plan to make.
- Clearance: measure the space needed for the 117 mm elbow height and 79 mm radius near the body, subframe, and heat shielding.
- Rotation: set the exact 90° orientation with a dry fit before final welding so the next section lines up correctly.
- Material match: pairing it with stainless tubing and an appropriate welding process helps keep the joint even and consistent.
Before installation, verify tube diameter, available space, and weld layout, then compare them with the listed dimensions and features.
