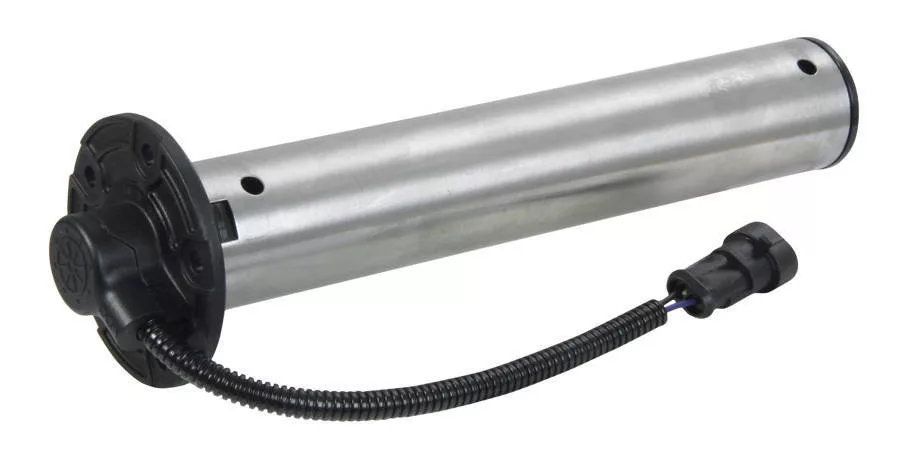

Fuel level sensor VDO
The float is contained in a cylindrical stainless steel housing.
The universaldesign allows the sensor to be installed in almost any tank.
Available in various lengths.
Suitable for gasoline and diesel fuels.
Supplied with mounting kit.
Operating temperature range: -25°C to +65°C
Voltage: 6-24V
Resistance:
- Empty: 81.6 Ohms ± 2.5 Ohms
- Full: 2.5 Ohms ± 1.5 Ohms
