Seat mount universal weld-in FIA V2

Steel Bucket Seat Mount Base – Weld-In Kit

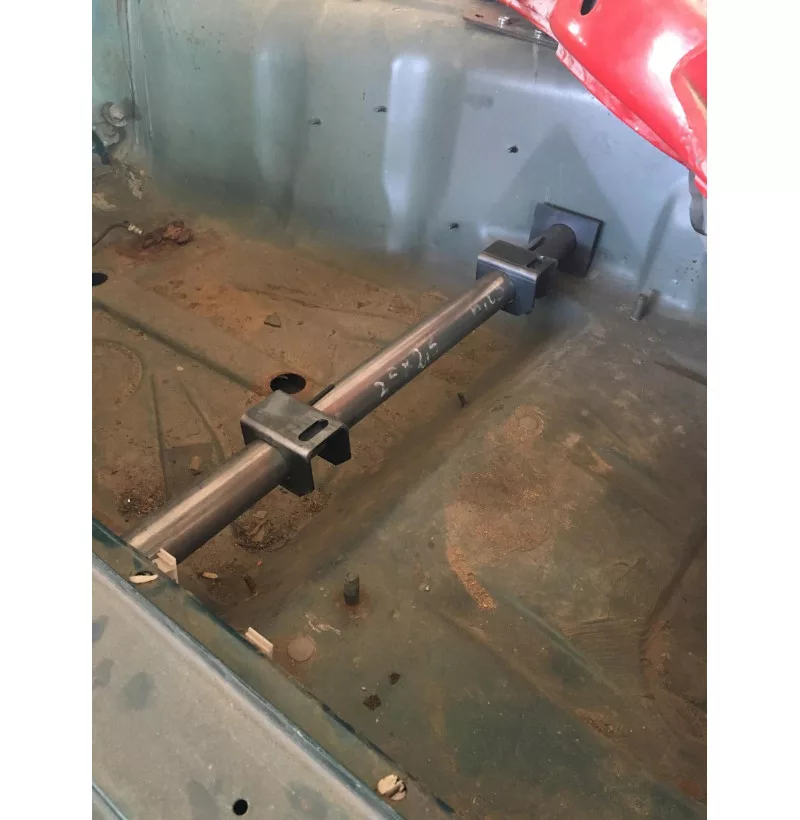

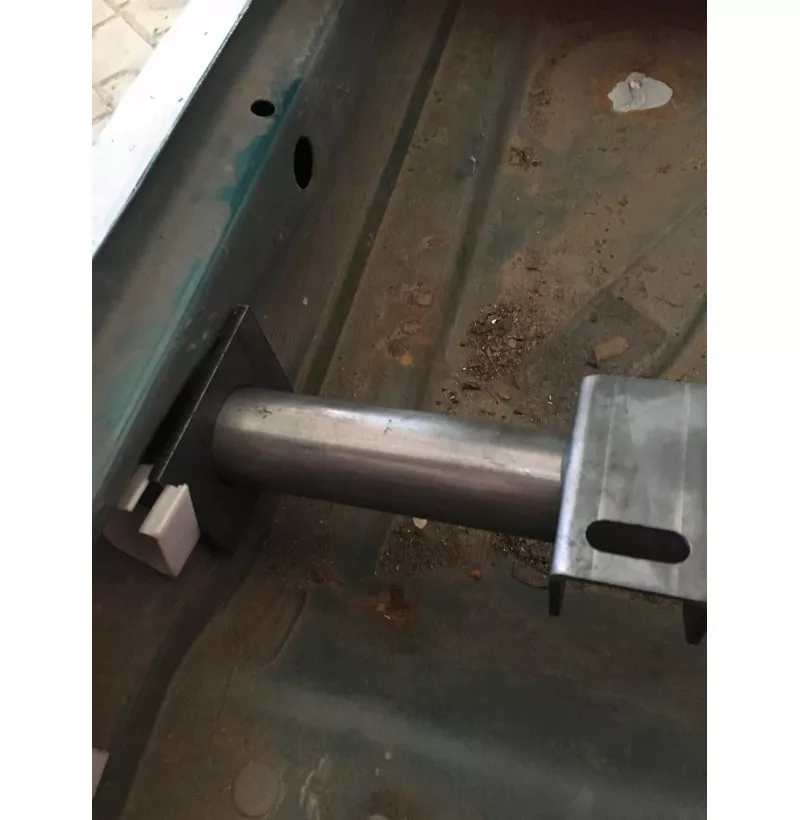

Universal steel base for bucket seat mounting, designed to be cut to size and welded between the door sill and the transmission tunnel of the vehicle. The adjustable design allows easy adaptation to different floor constructions.

The kit includes threaded M8 inserts, which can be welded into the profile after drilling, allowing precise positioning of the seat. The structure provides a strong and secure mounting base for a racing bucket seat.

Ideal for vehicles used in motorsport such as KJS, Drift, Drag Racing (1/4 mile), Rally, Time Attack, and track builds.

The mounts are manufactured in accordance with FIA Appendix J regulations, meeting required motorsport standards.

Specifications:

• main bar length: 60 cm

• tube 38 mm, wall thickness 2.6 mm

• plates 95×60 mm and 80×50 mm, thickness 3 mm

• M8 threaded inserts

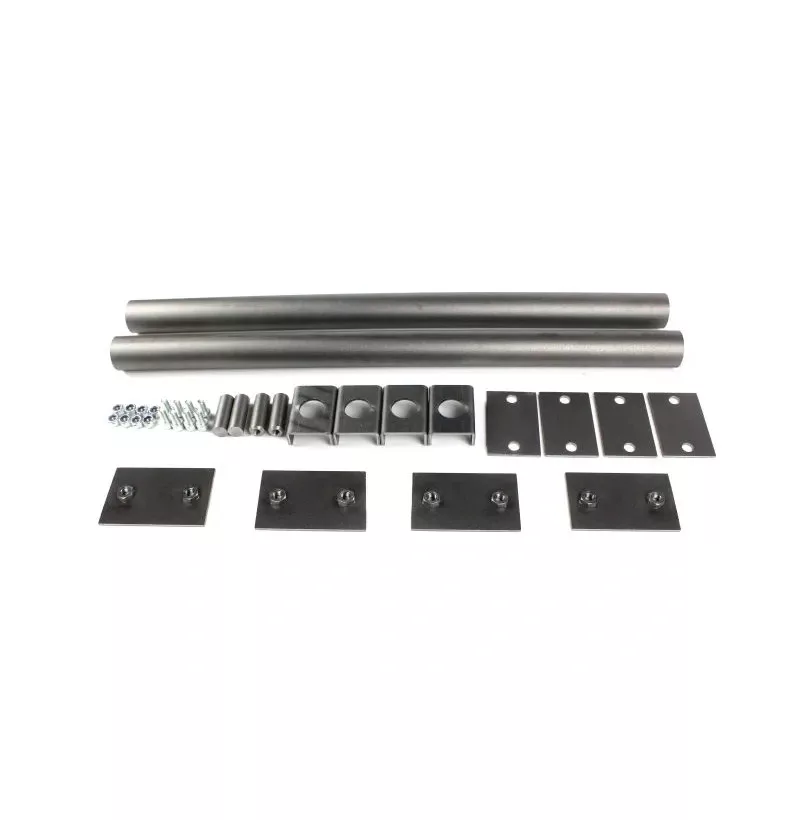

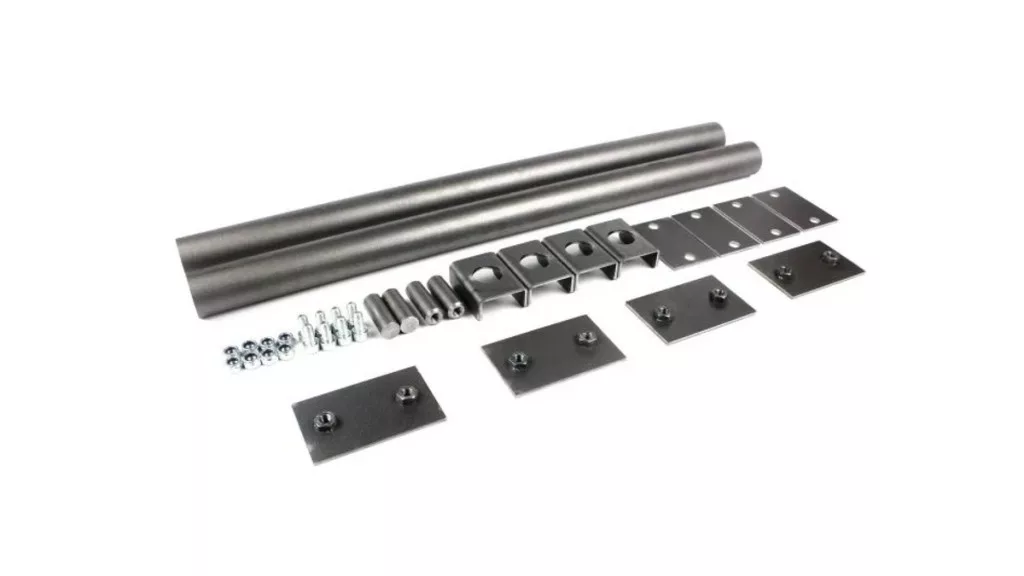

Set includes 2 mounts – complete kit for one seat.
Made in Poland.
