Radium Engineering Fuel Rail 20-0235 – Top-Feed Conversion for Toyota 1JZ-GTE (non-VVT-i)

Lightweight, plug-and-play fuel rail that converts the factory side-feed injector layout to 14 mm top-feed on non-VVT-i 1JZ-GTE engines. Provides ample flow for high-power builds while remaining fully E85 compatible.

Key Features

• CNC-machined 6063/6061 aluminum body, black anodized – low weight, corrosion-resistant, laser-etched branding.

• Large 0.69″ (≈ 17.5 mm) internal bore and three -8 AN ORB ports deliver fuel for 900 hp+ projects.

• Includes two bracket sets (tall & short) allowing use of 34 mm or 48 mm height injectors without manifold mods.

• 14 mm injector seat adapters with O-rings seal the rail to the manifold and prevent pressure loss.

• Chemically resistant to gasoline, E85 and methanol thanks to anodized aluminum and Viton® seals.

• Ports accept Radium pulse dampers, pressure gauges, FPRs and AN fittings (optional accessories).

Engine Compatibility

• Toyota 1JZ-GTE non-VVT-i
  – Supra JZA70 / Soarer JZZ30
  – Chaser / Mark II / Cresta (JZX81, JZX90, JZX100)
  – Swapped 1JZ-GTE engines in other chassis

For 1JZ-GTE VVT-i engines use Radium kit 20-0551.

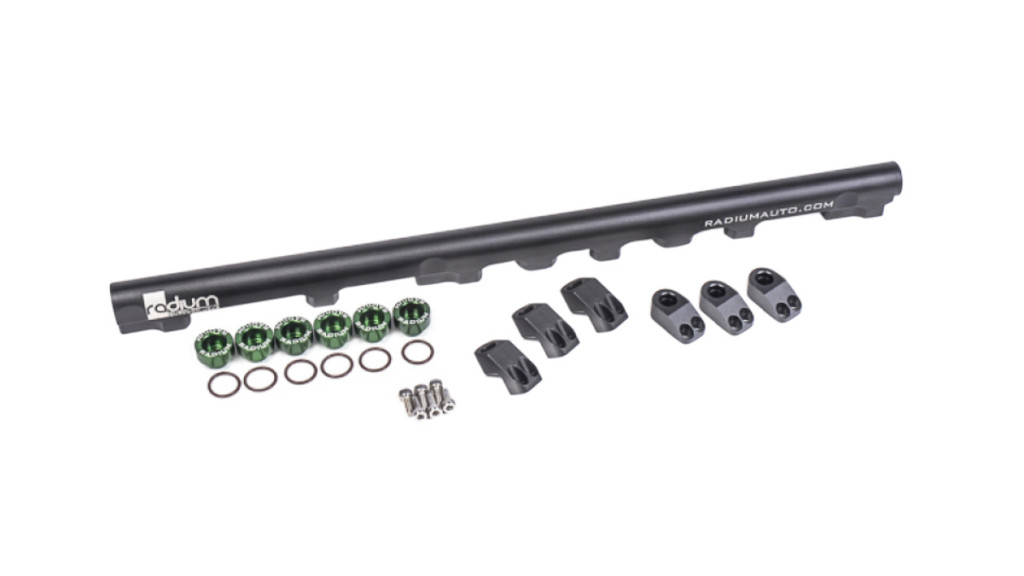

Kit Contents

• Fuel rail 20-0235 with ‑8 AN ORB ports

• 3 × ‑8 AN ORB plugs, stainless mounting bolts

• 6 × 14 mm injector seat adapters with O-rings

• 2 × bracket sets (low & high) with washers

• Installation manual with torque specs
