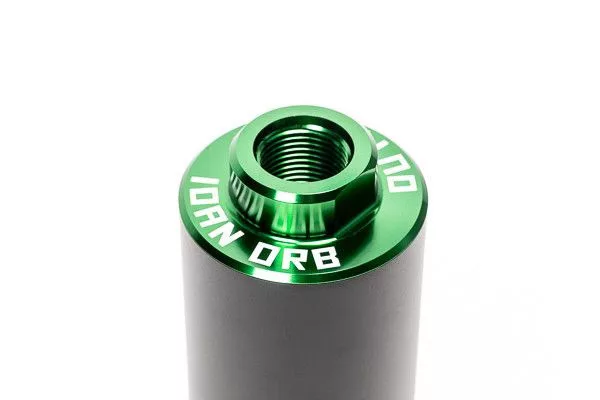

Radium Engineering High Flow Fuel Filter Kit w/ 10 Micron Stainless Filter

Radium Engineering fuel filter 20-0220-03 - High-Flow 10 µm (Stainless).

Key Features

• Three-piece 6061-T6 aluminum body, precision CNC-machined and Type II anodized - high corrosion and pressure resistance.
• 10 µm stainless steel filter element: reusable, suitable for ultrasonic cleaning; minimal pressure drop even at high flow rates.
• Large -10 AN ORB female ports in both caps allow installation upstream or downstream of the pump in high-performance systems.
• Viton® (FKM) seals provide full compatibility with gasoline, E85, methanol and diesel fuel.
• Operating pressure up to 150 psi with negligible pressure drop - ideal for pumps 450 l/h and larger.
• Lightweight design (body Ø 44 mm, length ≈ 125 mm) facilitates installation in tight spaces.
• Sold in a kit completely assembled: filter, Viton® gaskets and plugs -10 AN ORB - plug & play.
