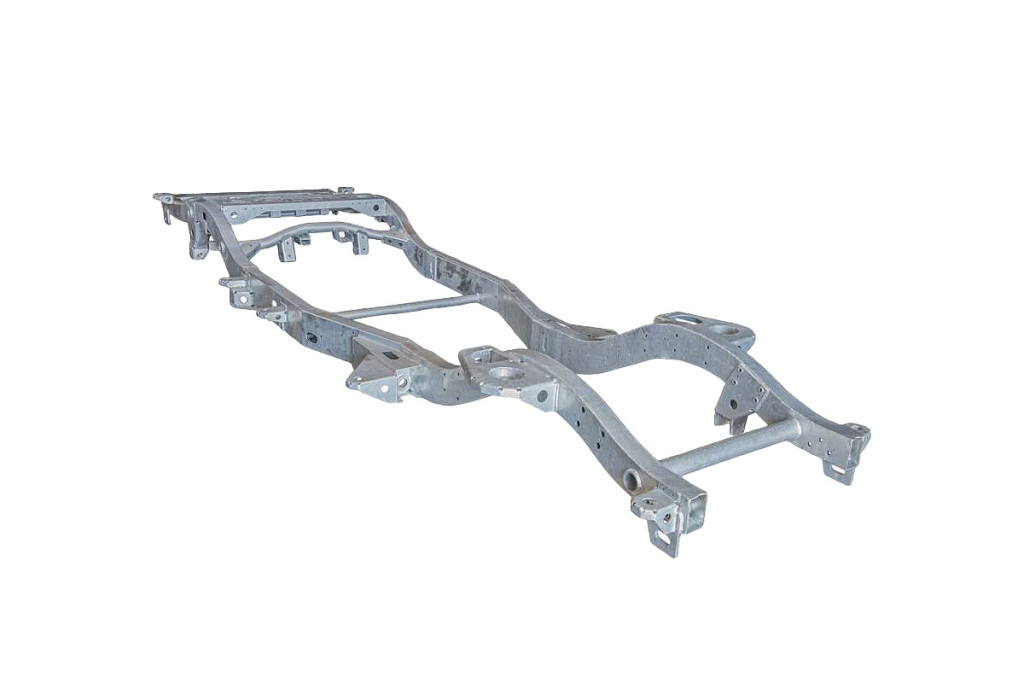

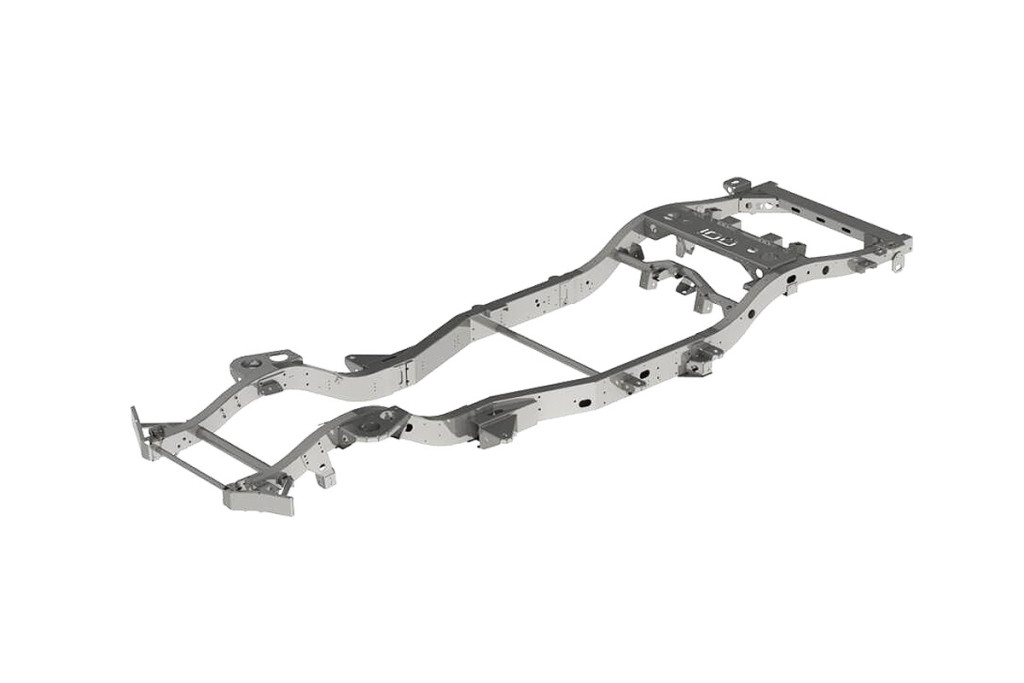

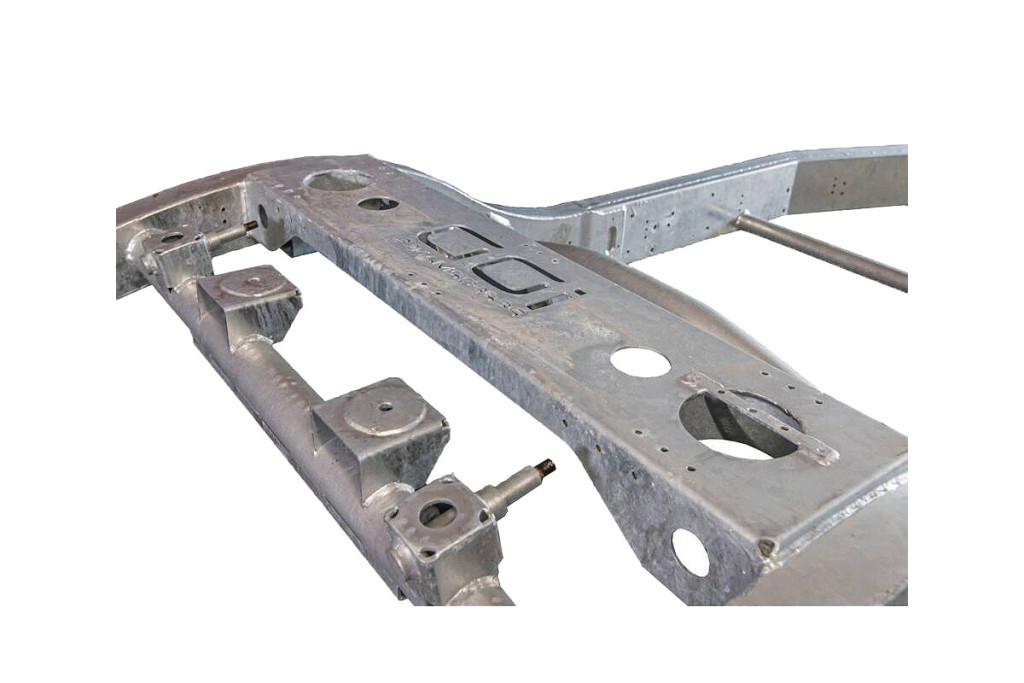

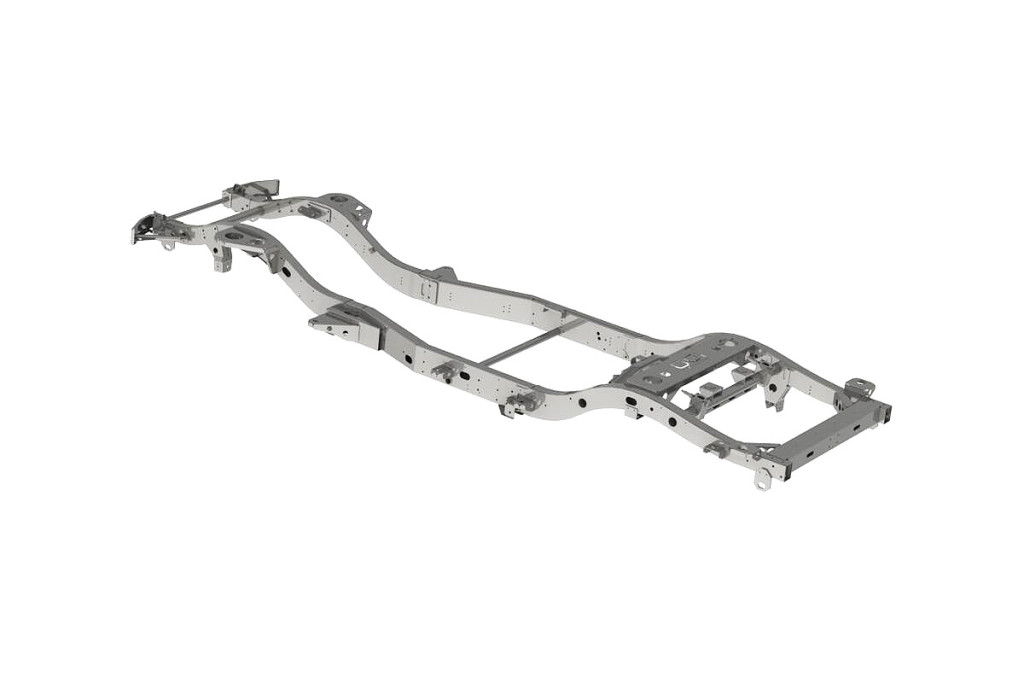

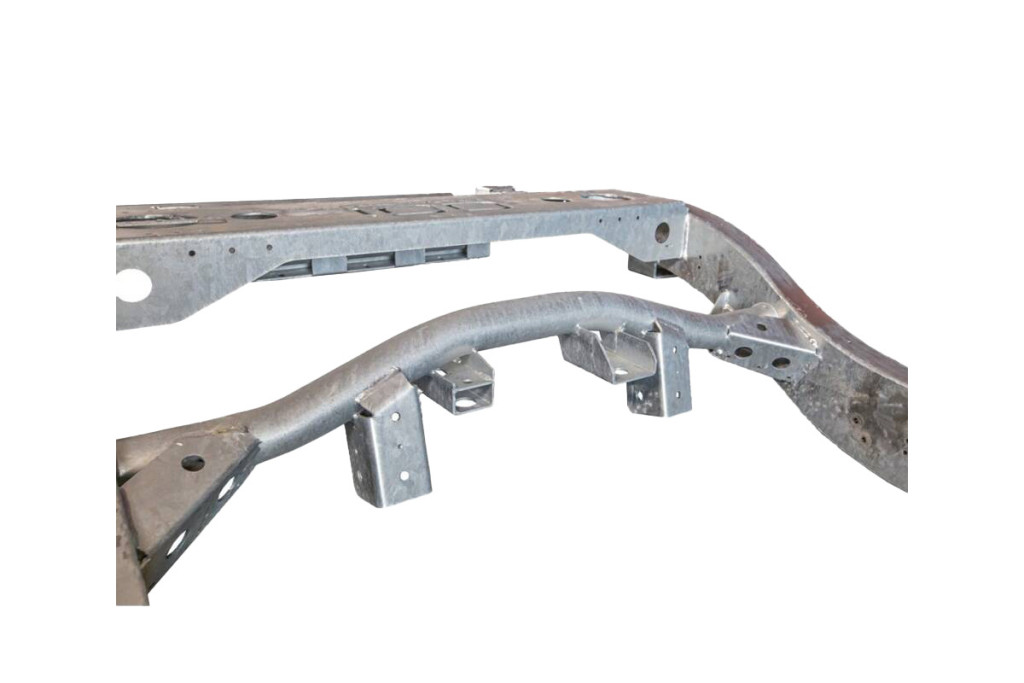

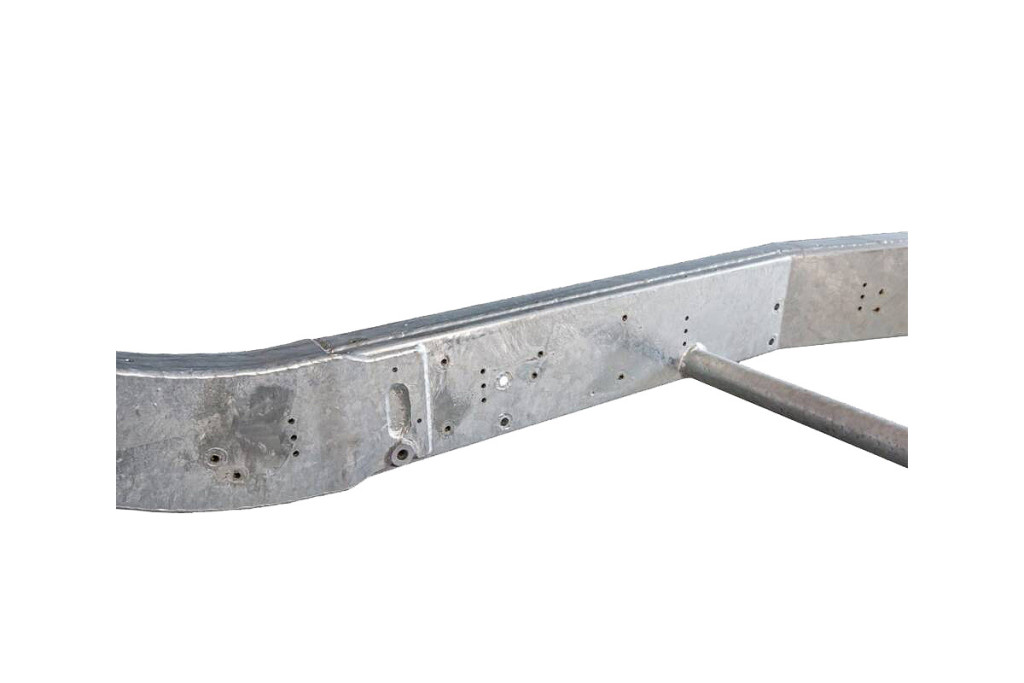

Frame Nissan Patrol Y60/Y61 LWB/SWB

New frame for the Nissan Patrol
Models Y60 / Y61 - SWB, LWB

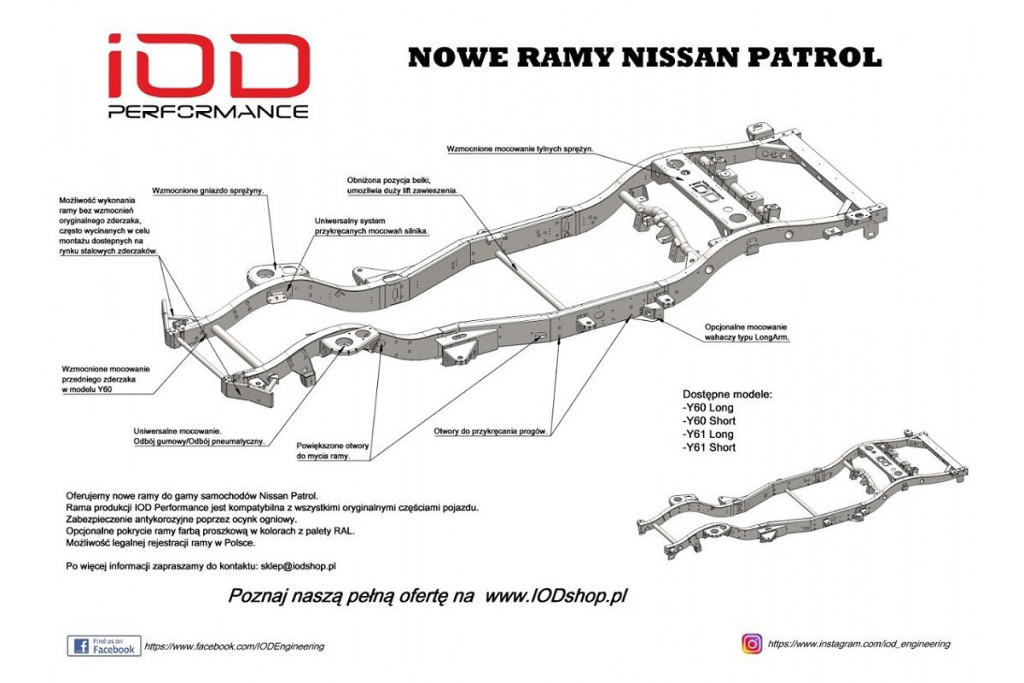

The price includes a ready-to-install product:

• Hot-dip galvanized
• Reinforced construction compared to series
• Reinforced construction at the rear and front of the frame
• Reinforced sockets of rear springs
• Reinforced Panhard mounts
• Mounting for additional fuel tanks
• Holes for cleaning frame interior
• Holes for screwing the sidesteps
• Screwed engine mounts allow easy engine replacement (SWAP) without damaging the anti-corrosion coating
• Lowered position of the beam allows a large suspension lift
• Optional Long Arm mounting
• Reinforced front bumper mount on Y60
• Threads made in thick-walled sleeves - the possibility of reaming and re-threading in the event of thread damage

Frame weight: 210-230 kg
The original parts fit without any modification.
