Angle kit Nissan S14/S15 17" ULTRA KIT 4×114,3 68 degrees

The kit is fully adjustable.

1- Adjustable Ackermann

2- Adjustable steering limiters (eccentric bushings)

3- Adjustable camber

4- Adjustable caster

The kit includes:

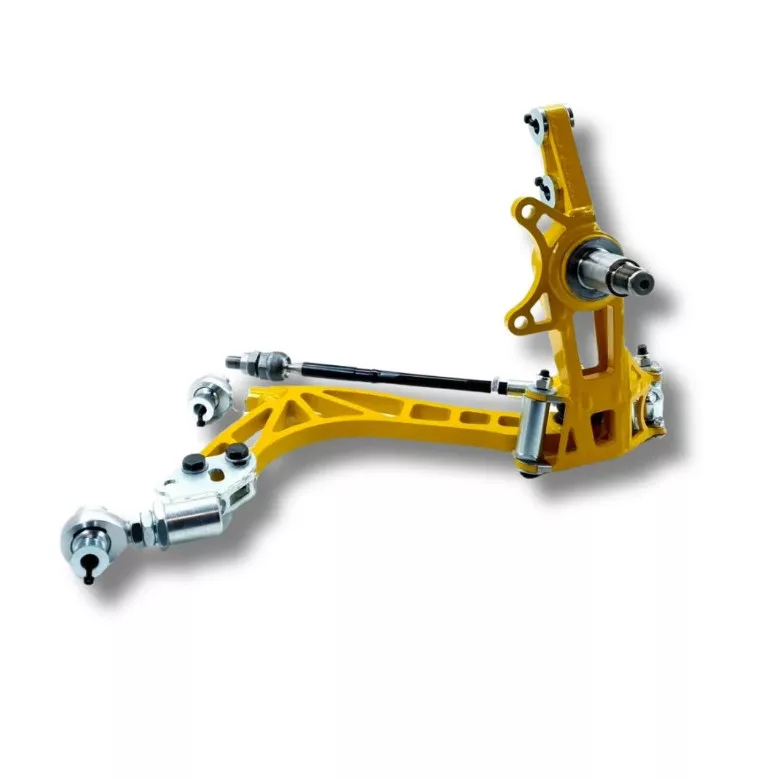

- 2 steering knuckles
- 2 adjustable arms
- 2 adjustable upper relocators
- 2 steering rods with rod ends
- 1 Ackermann kit (28 locking plates)

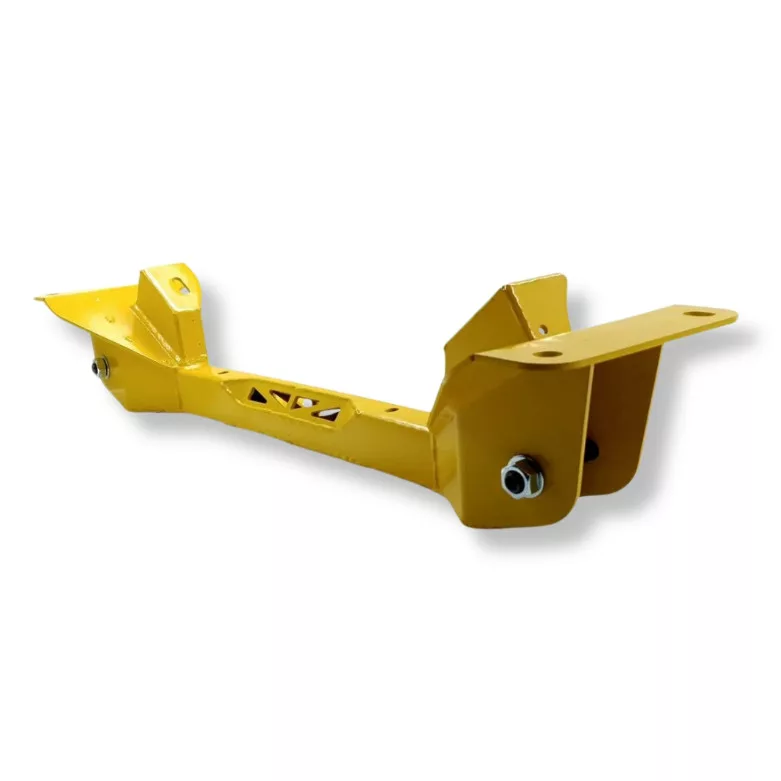

- 1 custom subframe
- 1 set of steering rack mounts: 3 diameters (45 mm, 48 mm, 50 mm)
- 1 set of bolts
- 8 mounting bushings for S13 and S14 coilovers

The kit is interchangeable between S13, S14, and S15 bodies, and the front arm mount has been redesigned and is adjustable.

The steering knuckles come with mounting sleeves for M12 and M14 bolts for coilovers. These components are easily interchangeable and do not require additional tools.

Rim diameter: 17″ or larger; steering knuckles designed for maximum roll center within 17″ rims.

The control arms of this Ultra Kit model are 15 mm shorter than the standard 18″ Ultra Kit with maximum roll center.

The geometry is slightly different due to these 15 mm.

For Nissan S-BODY subframe:

S14 (SR20DET)
