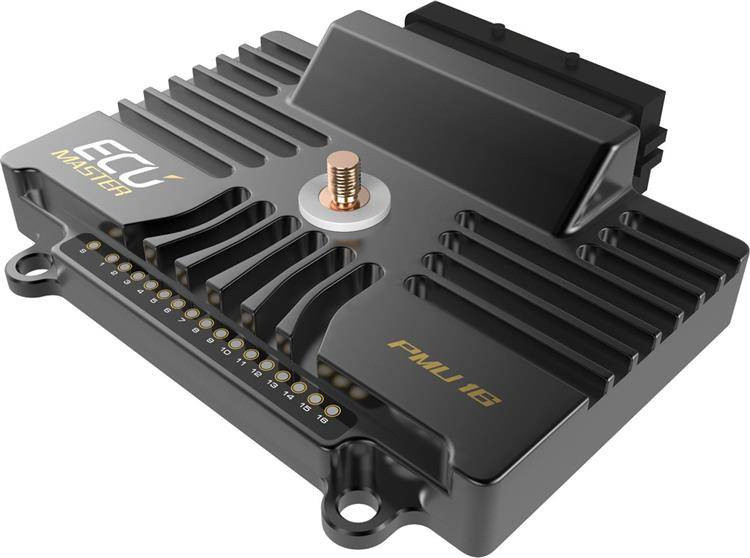

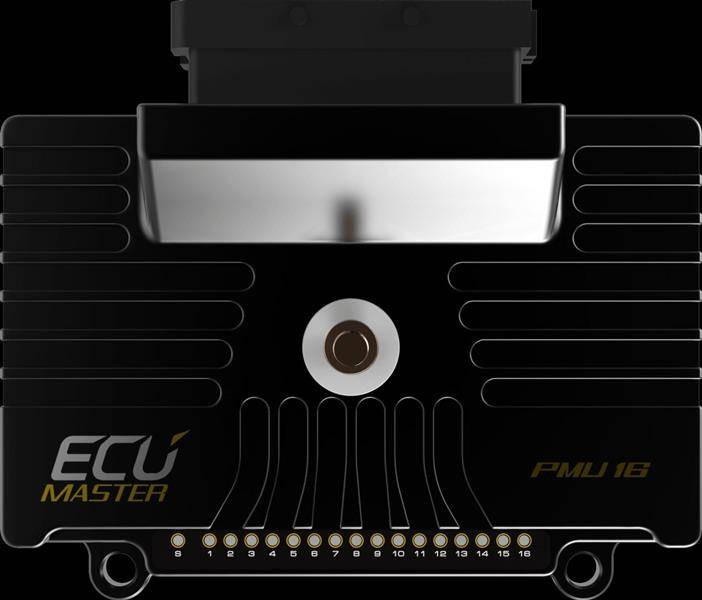

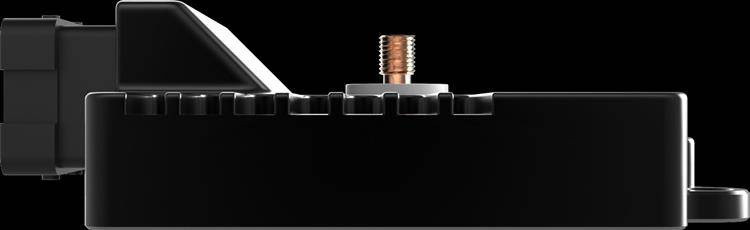

Ecumaster PMU16 Module + Data Logger

Application: Ecumaster EMU, EMU Black, Ecumaster Keypad, Motec, Pectel ect.Ecumaster PMU16-DL in comparison to Ecumaster PMU16 has a built-in highly efficient and also resistant temperature memory for logging data.The Power Management Unit Ecumaster PMU (Power Management Unit) is a device that completely eliminates the fuse box and relays in the car installation. The module is fully programmable and has a number of strategies such as sequential switching on and off of devices, device restart in case of failure or overvoltage, subsequent shutting down in case of voltage drop in a specific order and LEDs indicating the status of individual outputs. PMU significantly simplifies the car's beam, lowers the weight of the entire installation and protects the car against expensive failures.OUTPUT:

• 10 x 25A
• 6 x 15A
• Dedicated exit for wipers with parking function

INPUT:

• 16 x switched

COMMUNICATION:

• 2 x CAN - including diagnostics, power consumption, input voltage, errors.

OTHERS:

• Built-in accelerometers with power off function during an accident.
• LEDs indicating the status of outputs.
• 256MB of memory (login speed up to 500hz) (only version with built-in datalogger)

PLUG:

• 1 x 39 pin
• 1 x M6 stud

DIMENSIONS:

• 131 x 112 x 32 mm

WEIGHT 345g
