Aeromotive's all-new returnless Carbureted Phantom is a cost-effective way to install a fuel system for any carbureted system, in virtually any fuel tank. For those customers who want the ease of a returnless carbureted system in their car and are tired of loud, noisy T-style pumps, Aeromotive's new Carbureted Phantom is the way to go. Line pressure is pre-set to 15 psi.
Equipped with the Aeromotive Stealth 325 pump, the Phantom Carbureted System is capable of supporting up to 900 horsepower naturally aspirated, 750 horsepower forced induction, on gasoline.
A static or dead-head style fuel pressure regulator is required for use with this Phantom Carbureted kit. Recommended Aeromotive regulators include:
- AM-13222 For engines up to 750 FWHP with carburetors requiring low, 2-5 PSI, fuel pressure
- AM-13201 and AM-13205 for engines up to 750 FWHP Naturally Aspirated and 5-9 PSI fuel pressure.
- AM-13203 for engines up to 900 FWHP Naturally Aspirated, 750 HP Forced Induction.
The Phantom Carbureted System is compatible with gasoline only, not recommended for use with Ethanol, E85 or Methanol Fuels.

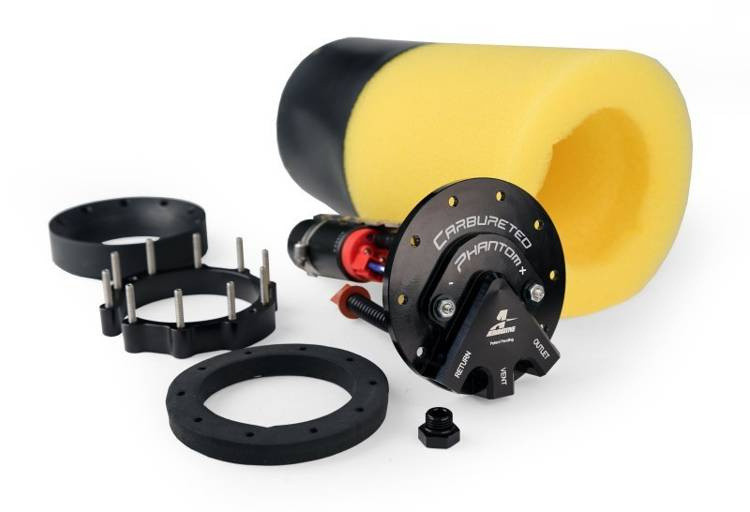

The Kit Includes:
- Billet Top Hat with ORB-06 ports
- Compatible with AN-06 line using fitting AM-15606
- Compatible with AN-08 line using fitting AM-15649
- Foam Baffle & Bladder Sump
- Proprietary Sealing Gasket
- Installation Ring
- High-Flow Pre-Pump Filter
- Billet C-Ring Mount
- Height Adjustable 6-11"
This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.
