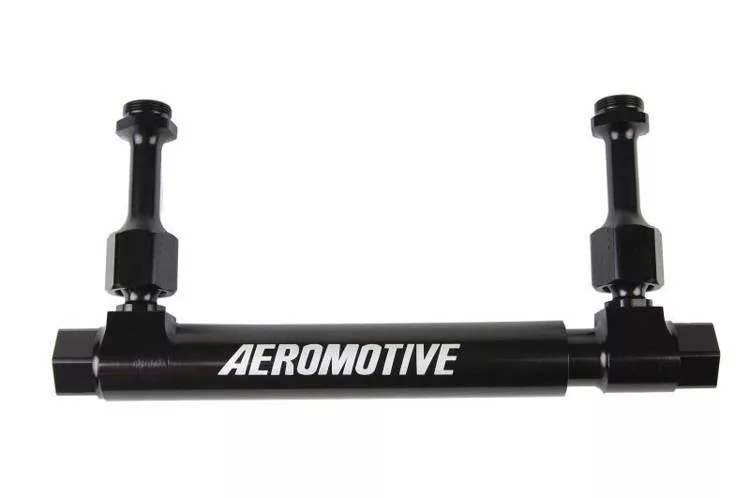

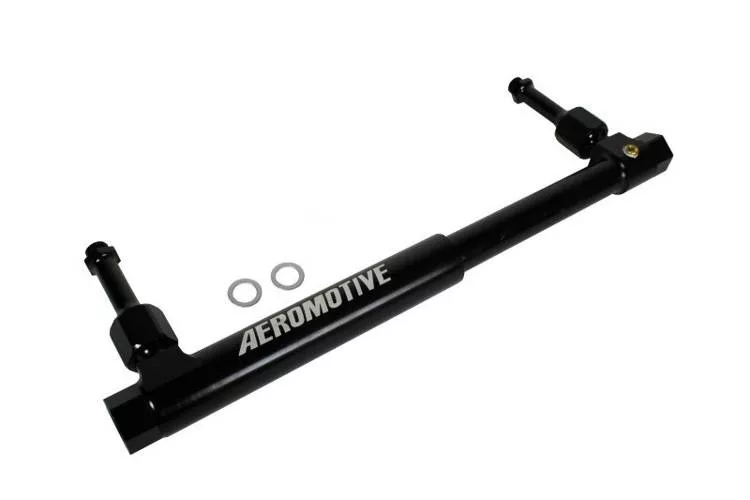

Aeromotive Fuel Log Demon 9/16-24 Thread

Billet, double adjustable, carburetor fuel logs for superior fitment. The advantage of a company that understands engineering, design, and manufacturing, is peace of mind. When you buy a fuel log from Aeromotive, you can be assured they will fit and deliver as promised.

• Threaded with 9/16″ - 24 ORB (o-ring boss) for proper sealing on carburetors like the Holley Ultra-HP and those with similar float bowls.
• Carburetor inlets swivel + or - 20 degrees in all directions for optimum clearance from valve cover and intake runners.
• Telescoping center line is 7.700″ to 13.450″ adapts to standard and high capacity float bowls.
• ORB-10 inlet and outlet ports can be adapted from AN-12 to AN-06 with available Aeromotive ORB port fittings.
• Two 1/8″ NPT ports for gauges and/or pressure transducers.
• 1.056/.806″ ID bore for high flow capacity.
• Type II bright-dip black anodized finish for durability and great looks.

For stand-off conversion to other carburetor applications:

• AM-14001 Standard Holley Style 7/8″ - 20 bowls.
• AM-14003 Ultra HP Style 3/4″ - 16 bowls.

For rebuild/reseal kit see:

• AM-14001

This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.
