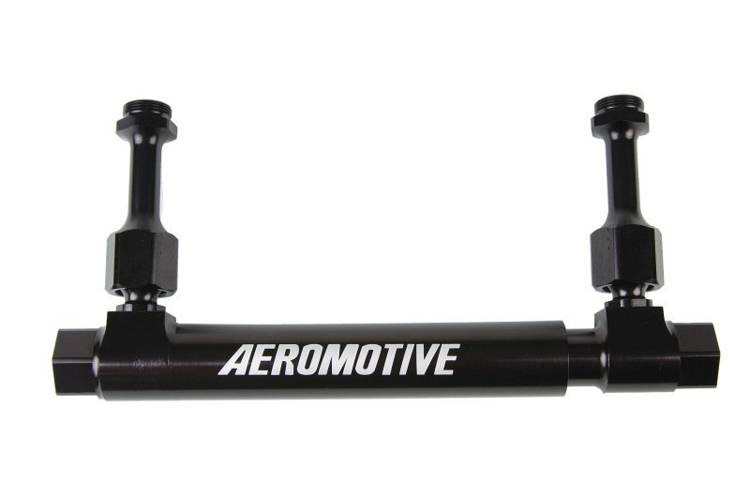

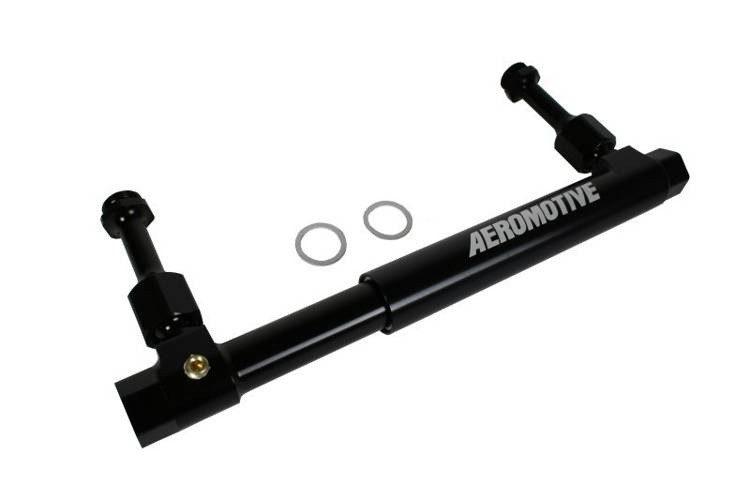

Billet, double adjustable, carburetor fuel logs for superior fitment. The advantage of a company that understands engineering, design, and manufacturing, is peace of mind. When you buy a fuel log from Aeromotive, you can be assured they will fit and deliver as promised.
- Threaded with 7/8″ - 20 with flat gasket for proper sealing on carburetors like the standard Holley and those with similar float bowls.
- Carburetor inlets swivel + or - 20 degrees in all directions for optimum clearance from valve cover and intake runners.
- Telescoping center line is 7.700″ to 13.450″ adapts to standard and high capacity float bowls.
- ORB-10 inlet and outlet ports can be adapted from AN-12 to AN-06 with available Aeromotive ORB port fittings.
- Two 1/8″ NPT ports for gauges and/or pressure transducers.
- 1.056/.806″ ID bore for high flow capacity.
- Type II bright-dip black anodized finish for durability and great looks.
For stand-off conversion to other carburetor applications:
- AM-14002 Demon Style 9/16″ - 24 bowls.
- AM-14003 Ultra HP Style 3/4″ - 16 bowls.
For rebuild/reseal kit see:
This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.
