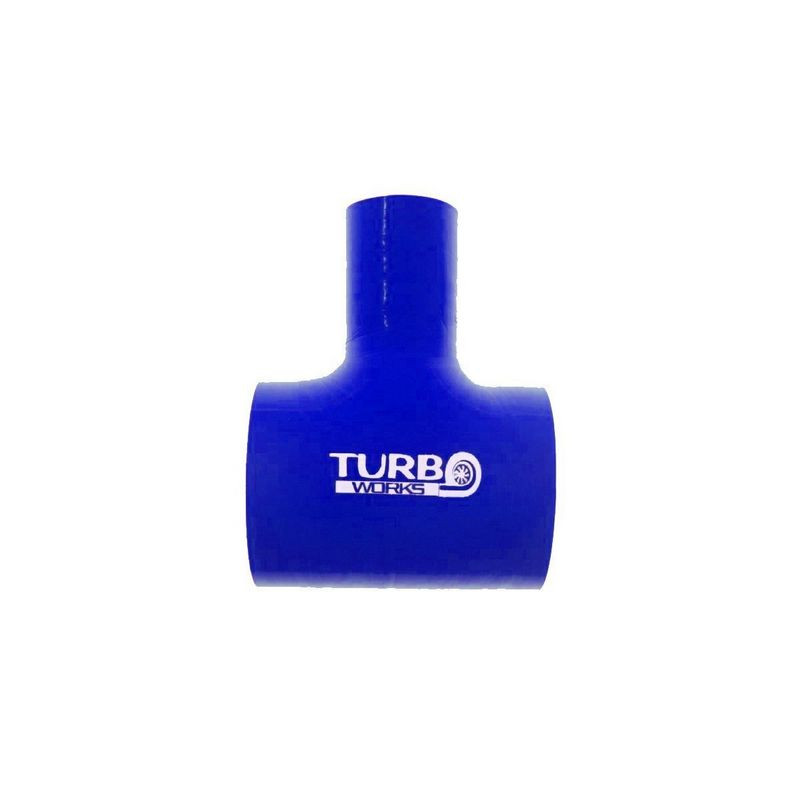

Silicone Hose T-Piece ID=25mm TurboWorks 70mm, Blue

Key Features & Benefits – TurboWorks silicone T-piece with top outlet 70/25 mm blue

TurboWorks silicone T-piece with top outlet 70/25 mm blue is a practical way to add a 25 mm branch into a 70 mm main hose run. It can be used in intake and cooling system routing where the top outlet helps keep the hose layout clean and direct.

This silicone fitting features a 4-ply construction, a -50 to +260°C temperature range, and is tested up to 7 bar. The silicone material is resistant to refrigerants, greases, and oil vapors, which suits mixed under-hood conditions.

When is this useful?

The silicone T-piece is useful when you need a smaller auxiliary line coming off a larger main hose without complex adapters. The top outlet is especially handy when the branch needs to route upward or toward the upper area of the engine bay.

Technical specs

• Type: Silicone T-piece, top outlet
• Brand: TurboWorks
• Color: Blue
• Application: Intake system, cooling system

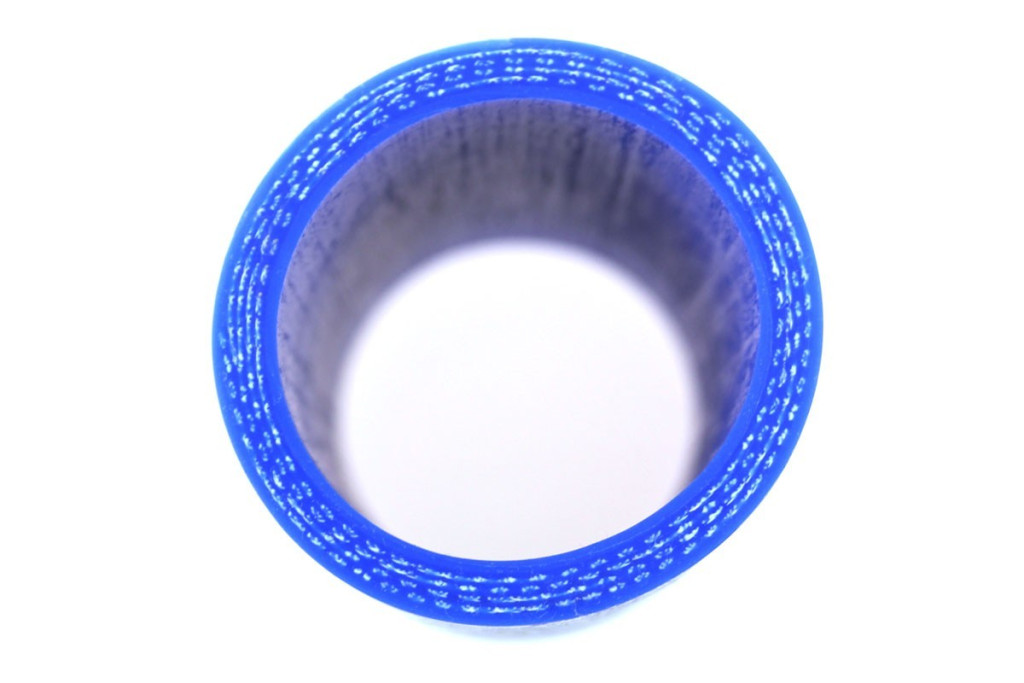

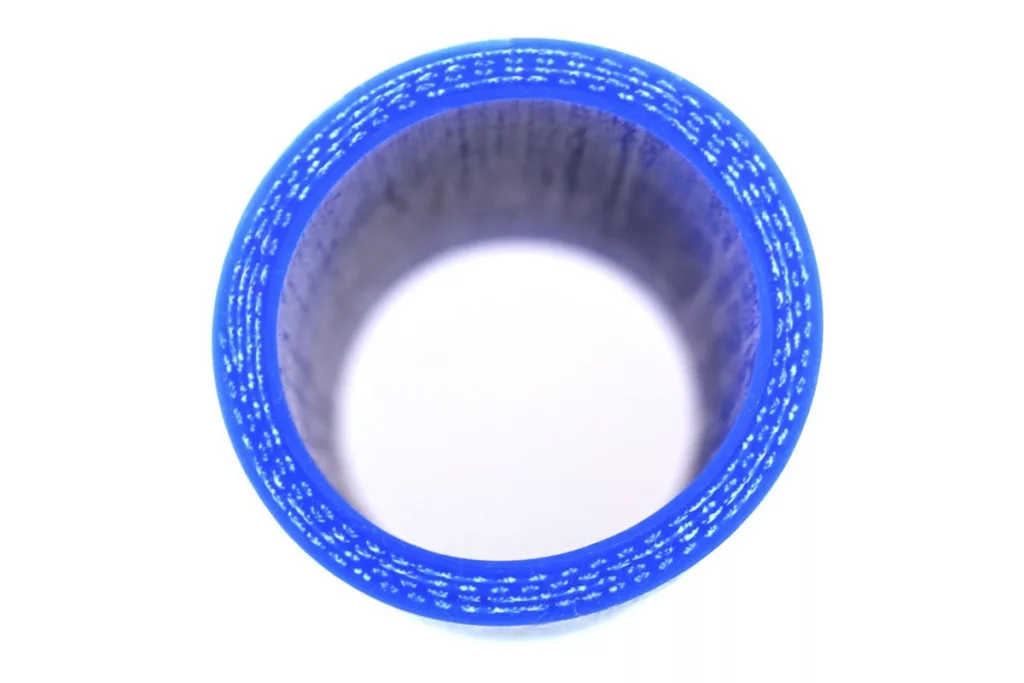

• Construction: 4-ply
• Test: Tested up to 7 bar
• Temperature range: -50 to +260°C

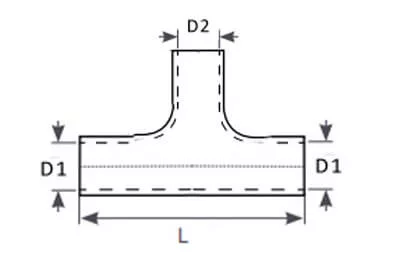

• Dimensions: D1 70 mm, D2 25 mm, L1 100 mm, L2 50 mm

Selection & installation tips

• Diameter check: match D1/D2 inner diameters to the outer diameters of your pipes or hose connections.
• Space check: confirm there is enough straight length for clamps with L1 100 mm and L2 50 mm in your layout.
• Clamping: clamp all three ends properly and tighten evenly to maintain a consistent seal.
• Outlet orientation: rotate the top outlet so the branch hose is not kinked or under tension.
• Edge condition: check pipe ends for burrs or sharp edges to avoid damaging the silicone during installation.

Before installation, verify your connection diameters (D1/D2) and available space (L1/L2) and compare them to the specs above so the fitting matches your exact hose routing.
