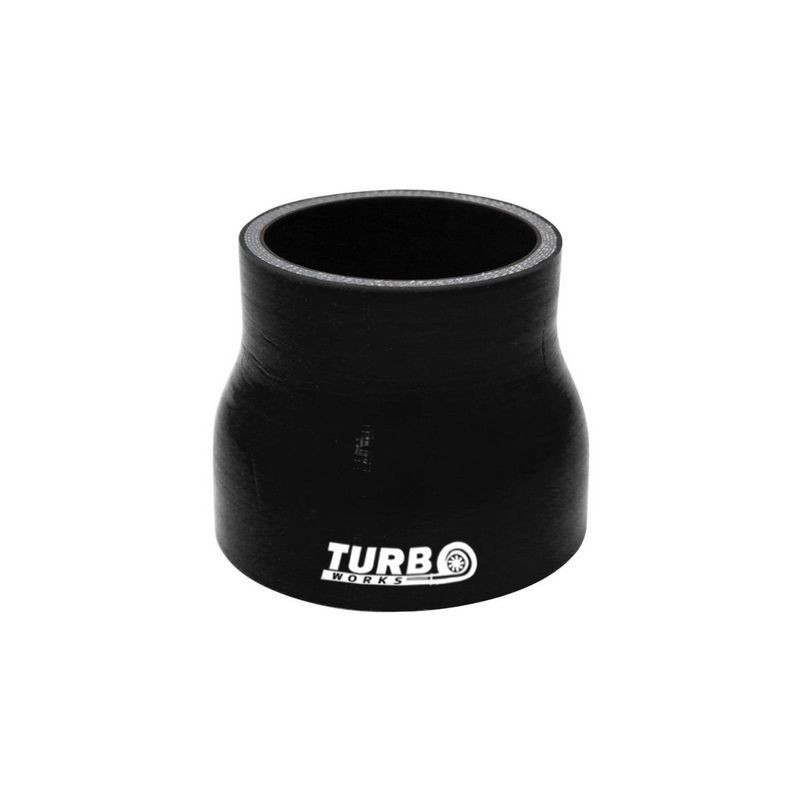

Key Features & Benefits – TurboWorks Silicone Hose Straight Reducer 25-35mm Black
The TurboWorks Silicone Hose Straight Reducer 25-35mm Black is a silicone straight reducer designed to join two different connection diameters on a straight run. It is suitable for intake, cooling and intercooler pipe routing where a 25 mm to 35 mm transition is required.
It features a 4-layer reinforced construction with a 6 mm wall thickness and is specified as tested up to 7 bar. The stated -50 to +260 °C temperature range helps when planning routing in changing operating conditions.
When is this useful?
Use it when one side of your setup is 25 mm and the other is 35 mm, and you want a clean straight transition that provides a consistent clamping surface for a sealed joint.
Technical specs
- Type: Straight reducer
- Connection diameter (D1): 25 mm
- Connection diameter (D2): 35 mm
- Length (L): 80 mm
- Wall thickness: 6 mm
- Construction: 4-layer
- Tested pressure: up to 7 bar
- Temperature range: -50 to +260 °C
- Color: Black
Selection & installation tips
- Diameter check: measure fitting outer diameters and match them to the 25 mm and 35 mm ends.
- Length & clearance: confirm the L=80 mm envelope fits your available space and routing.
- Clamp fit: choose clamp sizes that suit each diameter and seat evenly behind the bead.
- Sealing surfaces: keep fittings clean and burr-free, and ensure the hose ends are cut square for uniform sealing.
- Routing: after tightening, check the reducer is not twisted and the joint is not under tension.
Before installation, verify the 25 mm and 35 mm connection points, available clearance and clamp compatibility, then match your measurements to the D1/D2 and L values listed above.
