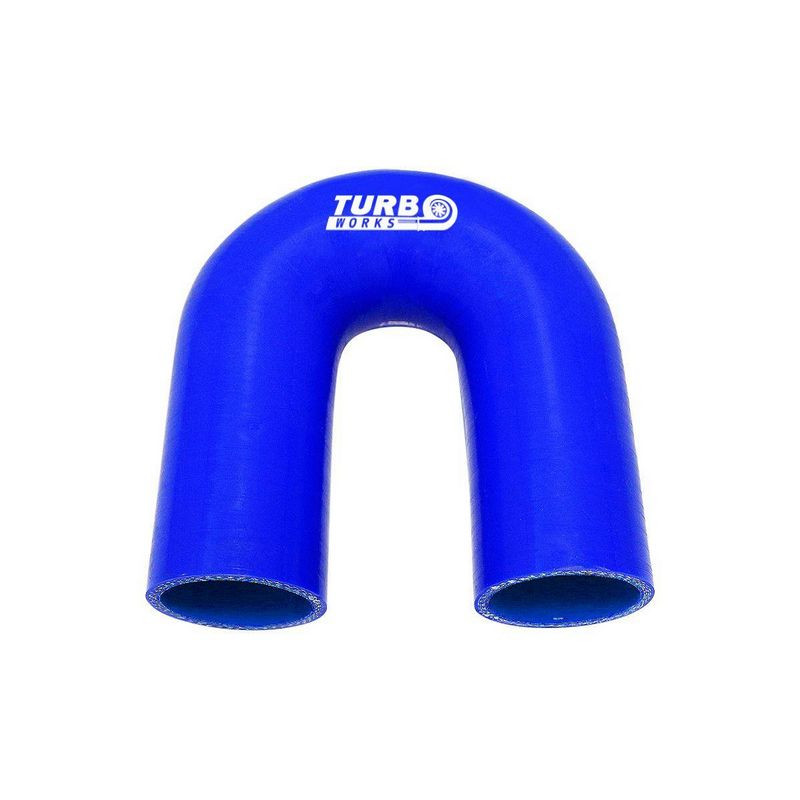

Key Features & Benefits – TurboWorks 60 mm silicone hose 180 degree elbow, blue
The TurboWorks 60 mm silicone hose 180 degree elbow, blue is a 180° silicone elbow designed to create a compact U-shaped return in a hose run. It can be used in intake piping, cooling circuits, and intercooler plumbing where sizing and packaging match.
It features a 4-ply reinforced build with a 5.5 mm wall and a stated -50 to +260 °C operating range. The silicone is described as resistant to coolant, grease, and oil vapour, and it is listed as tested up to 7 bar.
When is this useful?
It is useful when you need a tidy 180° return on a 60 mm line in limited space while keeping the joint stable under heat and pressure load.
Technical specs
- Brand: TurboWorks
- Type: 180 degree silicone elbow hose
- Colour: Blue
- D1: 60 mm
- D2: 60 mm
- Length (L): 100 mm
- Height (H): 50 mm
- Construction: 4-ply
- Wall thickness: 5.5 mm
- Tested pressure: Up to 7 bar
- Temperature range: -50 to +260 °C
- Applications: Intake; cooling; intercooler
- Part number: CN-SL-083
Selection & installation tips
- Diameter fit: Confirm your pipe/port OD matches a 60 mm coupler and clamp range works with the wall thickness.
- Packaging: Check the U-shape clears nearby parts and matches L=100 mm and H=50 mm space.
- Clamping: Use correctly sized clamps and tighten evenly to avoid cutting the silicone and to prevent leaks.
- Abrasion protection: Keep clearance from sharp edges and add protection where rubbing risk exists.
- System check: After installation, inspect joints under load, especially after heat cycles in boosted/coolant systems.
Before fitting, verify 60 mm connection size, available space, and clamp range, then match them to the dimensions and specs listed above.
