Key Features & Benefits – TurboWorks 180 Degree Silicone Elbow 25mm Black

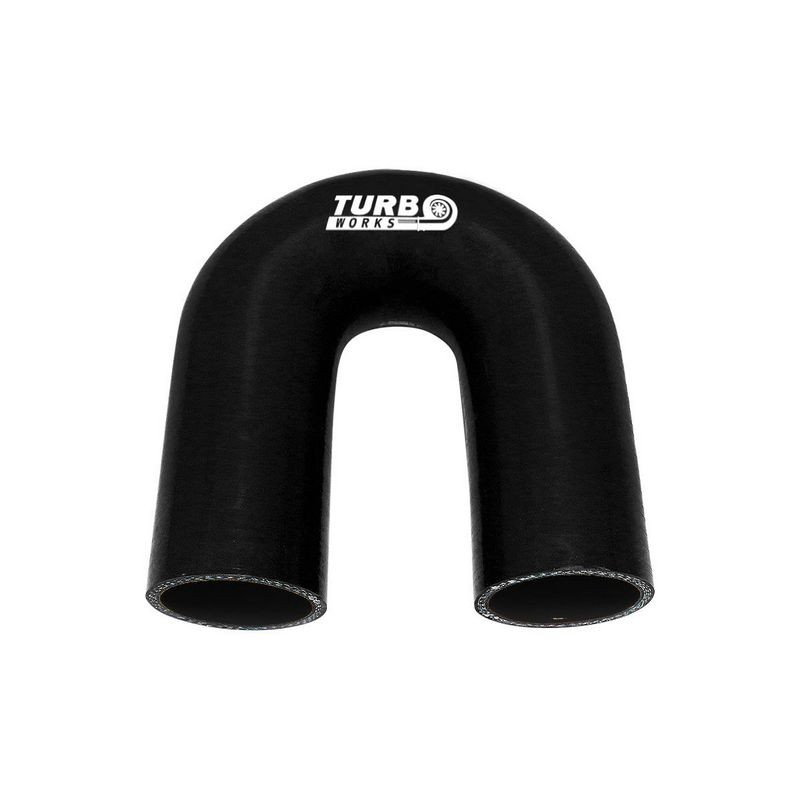

The TurboWorks 180 Degree Silicone Elbow 25mm Black is a compact silicone elbow designed to create a 180° turn in your pipe routing. It fits 25 mm connection diameter lines (D1/D2), making it useful where the pipe path needs a tight return in limited space.
It is intended for intake, cooling and intercooler use. The hose is specified as 4-layer reinforced, with a stated tested pressure of 7 bar and a -50 to +260 °C temperature range.
When is this useful?
When your setup needs a clean 180° direction change and both ends must match the same 25 mm connection diameter, this elbow helps keep the routing compact and consistent.
Technical specs
- Shape: 180° elbow

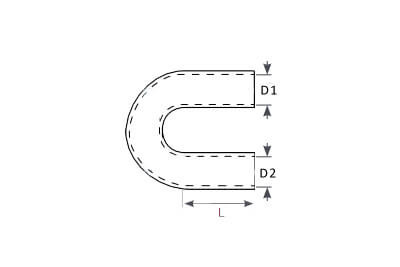

- Connection diameter (D1): 25 mm
- Connection diameter (D2): 25 mm
- Length (L): 100 mm
- Height (H): 50 mm
- Color: Black
- Construction: 4-layer
- Tested pressure: 7 bar
- Temperature range: -50 to +260 °C
Selection & installation tips
- Diameter check: measure the fitting outer diameter and match it to 25 mm D1/D2.
- Clearance: confirm the elbow’s L=100 mm and H=50 mm envelope fits your available space.
- Clamp choice: pick a clamp style and width that seats evenly behind the fitting bead with the access you have.
- Surface prep: keep the fitting and inner hose surface clean and free of burrs for consistent sealing.
- Orientation: test-fit the 180° turn to avoid pre-loading or twisting the hose once tightened.
Before installation, verify your connection diameters and packaging space, then match them to the D1/D2, L and H values listed above to confirm the elbow suits your routing.
