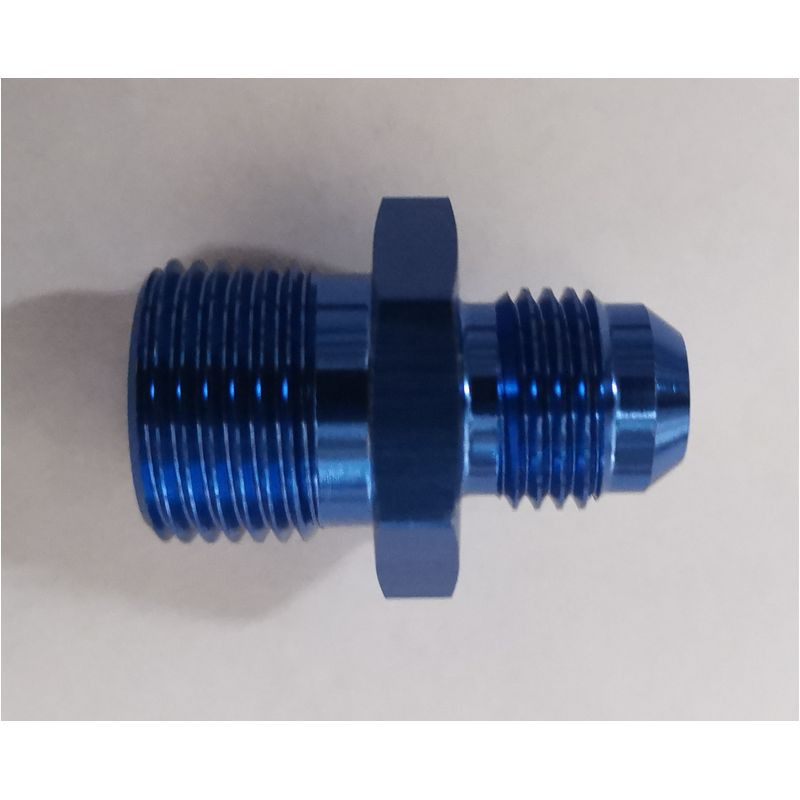

Key Features & Benefits – Goodridge AN6 to M18x1.5 adapter (Bosch 044)
The Goodridge AN6 to M18x1.5 adapter is a threaded connector that joins an AN6 side to an M18x1.5 side in fuel system plumbing. It is used in Bosch 044 builds where an M18x1.5 threaded connection point needs to interface with AN6 hose hardware.
A stable, leak-free joint depends on correct thread match and the proper sealing interface, plus routing the line so the fitting is not side-loaded.
When is this useful?
This is useful when you are building AN6 fuel lines around a Bosch 044 setup and want to connect an M18x1.5 threaded port to standard AN hardware while keeping the layout service-friendly.
Technical specs
- Brand: Goodridge
- Connection: AN6 – M18x1.5
- Application: for Bosch 044 connection
- Product code: 306-06-M18D
Selection & installation tips
- Thread verification: confirm the port is M18x1.5 and your hose side uses AN6 fittings.
- Sealing method: verify whether your M18x1.5 interface seals via a seat face or a dedicated sealing element in your setup.
- Seating surfaces: clean the flare/seat faces before assembly and avoid using damaged mating surfaces.
- Line routing: route the hose so the adapter is not pulled sideways and the joint is not installed under tension.
- Leak check: after assembly, check the joint under operating pressure and inspect for seepage.
Before final assembly, verify thread types, sealing interface, and packaging space, then compare those requirements to the AN6 and M18x1.5 connection specs above.
