Key Features & Benefits – EPMAN universal oil catch can with internal filter
The EPMAN universal oil catch can with internal filter is designed to separate oil mist from crankcase ventilation using an integrated oil separator and a cleanable, reusable stainless filter element. For functional compatibility, it uses AN10 ports for setups that run AN10 hose ends and matching line routing.

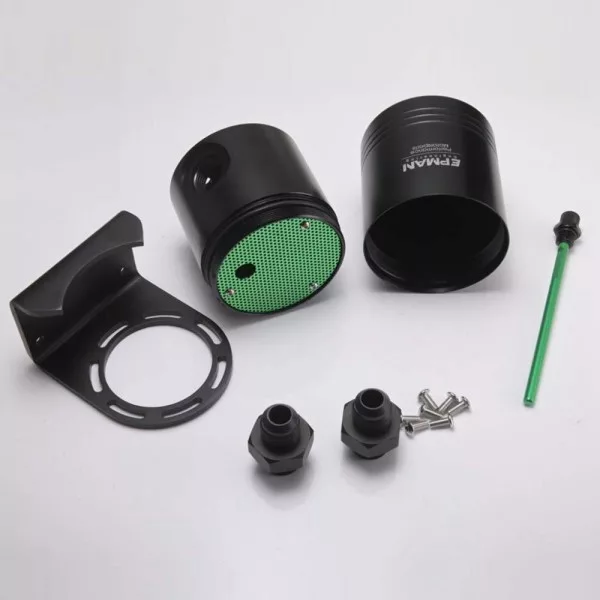

The body is 6061 aluminum in a black anodized finish, supplied with a laser-cut mounting bracket and stainless mounting hardware. Draining is handled by an O-ring sealed 10AN drain plug, oil level can be checked with an anodized 6061 billet aluminum dipstick, the reservoir holds 0.6 L (600 ml), and it is designed for pressurized applications.
When is this useful?
This is useful when you want crankcase oil mist collected in a separate can and you prefer a service-friendly design with a washable internal filter and quick oil level checks via a dipstick.
Technical specs
- Material: 6061 aluminum
- Integrated feature: oil separator
- Internal filter: stainless steel, cleanable and reusable
- Ports: AN10
- Drain: O-ring sealed 10AN drain plug
- Mounting: laser-cut bracket, stainless mounting hardware
- Level check: anodized 6061 billet aluminum dipstick
- Capacity: 0.6 L / 600 ml
- Color: black
- Brand: EPMAN
Selection & installation tips
- AN10 matching: confirm your setup truly uses AN10 ports and suitable hose ends, and that routing will not side-load the fittings.
- Mounting position: mount the can upright on a solid point and leave room to remove the dipstick for level checks.
- Service access: plan the bracket location so you can reach the drain plug and the lower section for cleaning/draining.
- Sealing surfaces: clean mating faces and check the O-ring condition to prevent seepage or leaks.
- Line routing: avoid kinks and heat sources, and secure the lines against vibration so the joints stay stable.
Before installation, verify AN10 connections, available space for a 0.6 L reservoir, and service access for draining and cleaning, then compare your plan to the technical specs listed above.
