EPMAN Universal Oil Catch Can Tank with Internal Baffle and Breather Filter – Multiple Colors
EPMAN universal oil catch can with 6061 aluminum body, internal baffled dual-chamber filter and a breather filter. ~420 ml capacity, supplied with 2x 10 mm + 2x 14 mm fittings and a 10 mm hose, available in multiple colors.
Net price: 39 €
Key Features & Benefits – EPMAN universal oil catch can

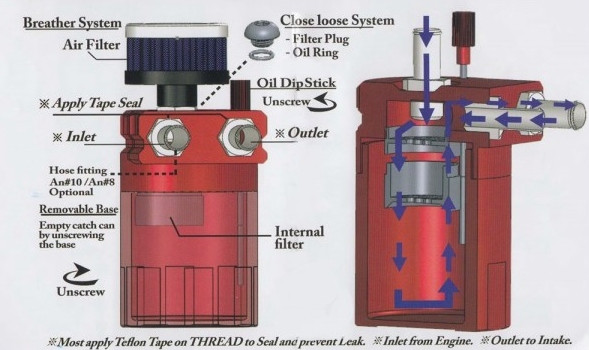

The EPMAN universal oil catch can is designed to separate oil mist and moisture from crankcase ventilation so less oil vapor returns to the intake system. For functional compatibility, it supports installations using 10 mm or 14 mm hose connections via the supplied fittings.
It is made from 6061 aluminum and uses an internal baffled dual-chamber filter layout. The can has a ~420 ml (0.42 L) capacity and comes with a breather filter, mounting bracket and hardware, so the key job is planning hose routing and mounting access on your build.
When is this useful?
This is useful on turbocharged and naturally aspirated engines when you want crankcase vapor collected in a separate can and you want to match the setup to 10 mm or 14 mm hose sizes.
Technical specs
- Brand: EPMAN
- Material: 6061 aluminum

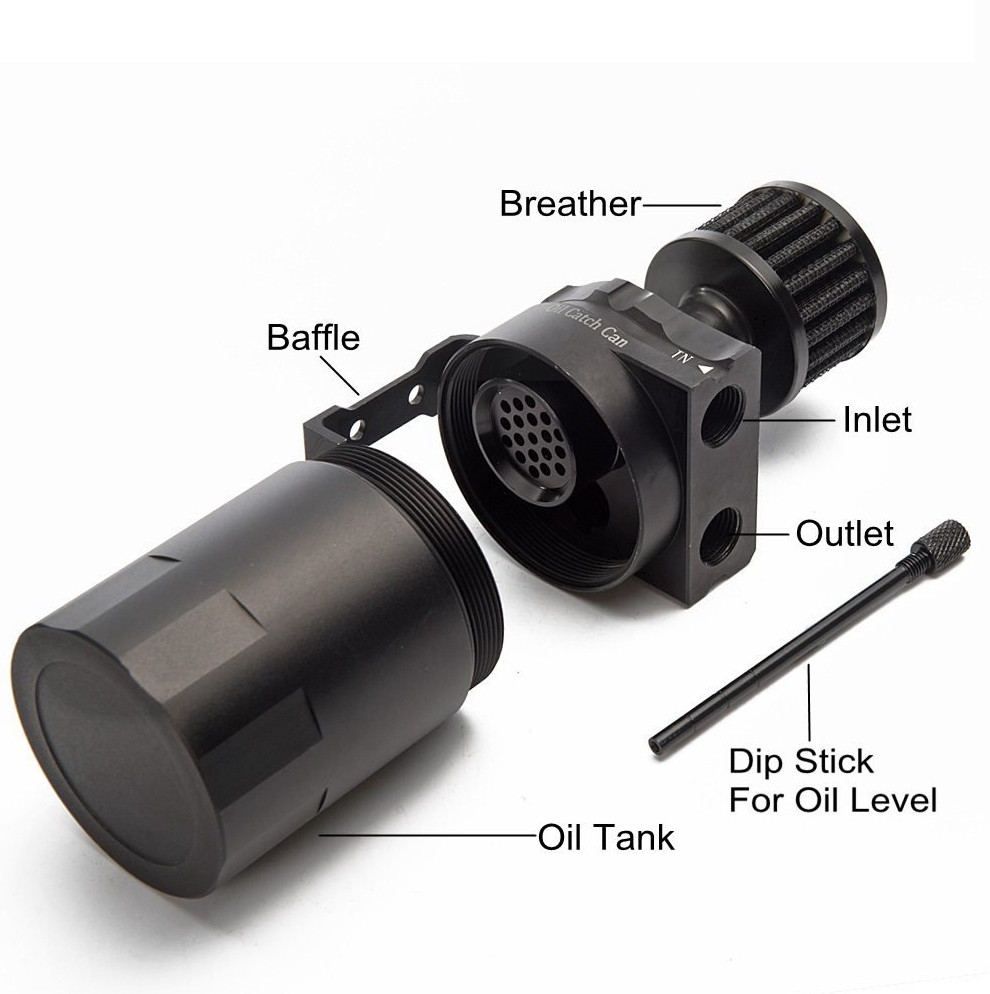

- Filtration: internal baffled, dual-chamber filter system
- Capacity: ~420 ml (0.42 L)

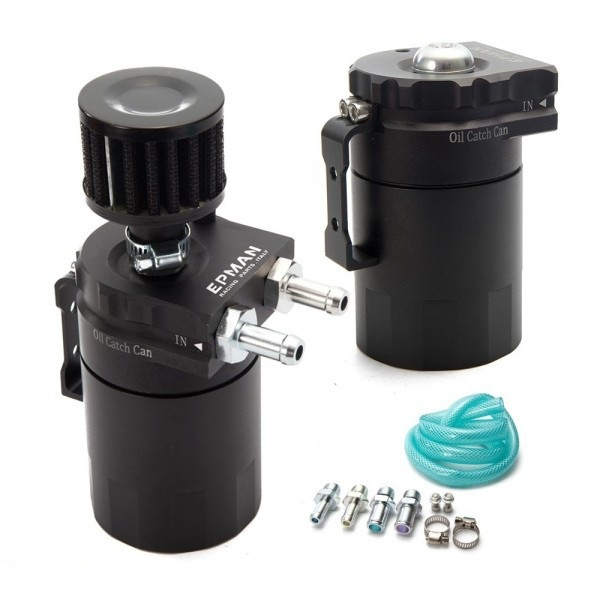

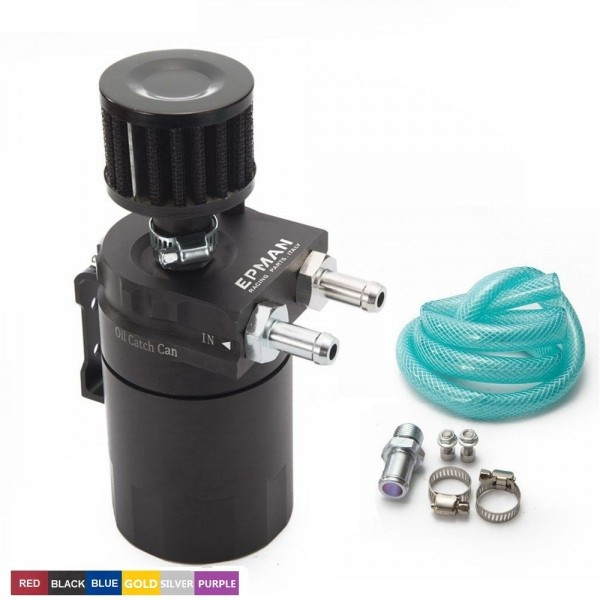

- In the box: oil catch can, breather filter, mounting bracket and screws, installation guide
- Fittings included: 2x 10 mm fittings, 2x 14 mm fittings
- Hose included: 1x 10 mm hose

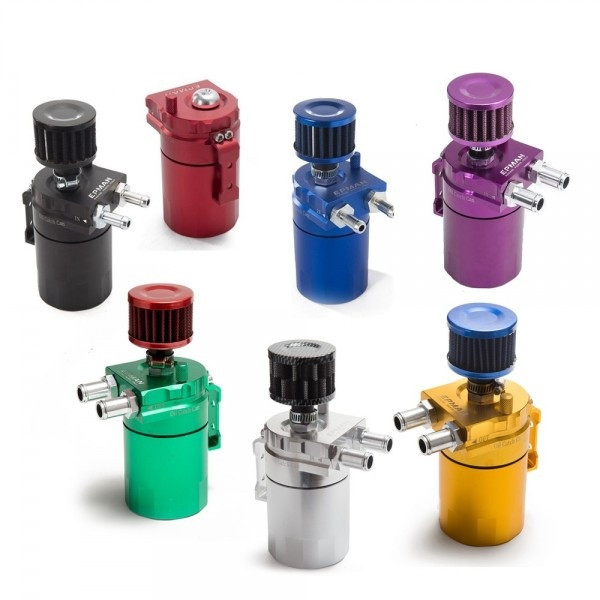

- Finish: available in multiple colors
Selection & installation tips
- Match hose size: measure your crankcase ventilation hose inner diameter and choose the 10 mm or 14 mm fittings to match the real size.
- Mounting access: pick a location where the bracket can be fixed securely and where inspection/draining access remains practical.
- Hose routing: route hoses without kinks or tension and keep them away from hot components where possible.
- Choose the setup mode: decide between a closed (recirculated to intake) layout or a vented (breather filter) layout, then plan connections accordingly.
- Clamping & sealing: verify clamp grip and fitting seating so you avoid air leaks and oil mist seepage at the joints.
Before installation, compare the 10/14 mm connection requirement, your available mounting space, and the ~420 ml can size to your routing plan, then configure fittings and mounting based on the technical specs listed above.
Net price: 39 €
