Key Features & Benefits – EPMAN universal aluminium in-line fuel filter with AN6 (-6 JIC) ends

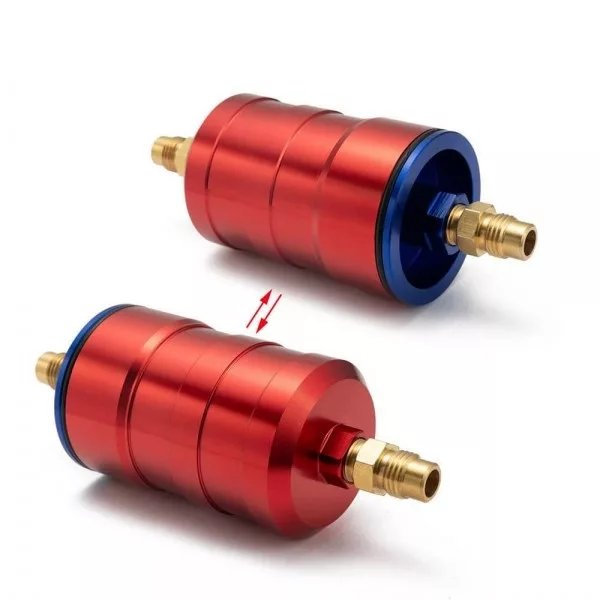

The EPMAN universal aluminium in-line fuel filter with AN6 (-6 JIC) ends is an in-line fuel filter built with AN6 (-6 JIC) / AN6 (-6 JIC) connections and a Stainless Steel (55 Micron) filter. It is suitable for universal fuel system use, including pre-pump or post-pump layouts and both carburettor and fuel injection systems.

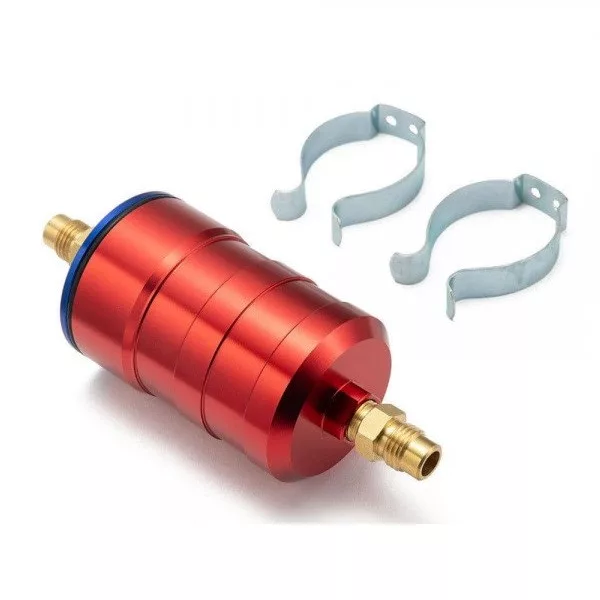

The housing is anodised aluminium, the seal material is Viton, and the listed flow rate is 500 L/hr. Mounting brackets are included, which supports a tidy installation with a serviceable metal housing design.
When is this useful?
This layout is useful when you need a compact, cleanable in-line fuel filter for AN-based plumbing and want a metal housing with a stainless steel filter element.
Technical specs
- Product type: in-line fuel filter
- Design: universal
- Connections: AN6 (-6 JIC) / AN6 (-6 JIC)
- Filter element: Stainless Steel (55 Micron) filter
- Housing material: anodised aluminium
- Seal material: Viton
- Listed flow rate: 500 L/hr
- Listed pressure capability: up to 10 bar

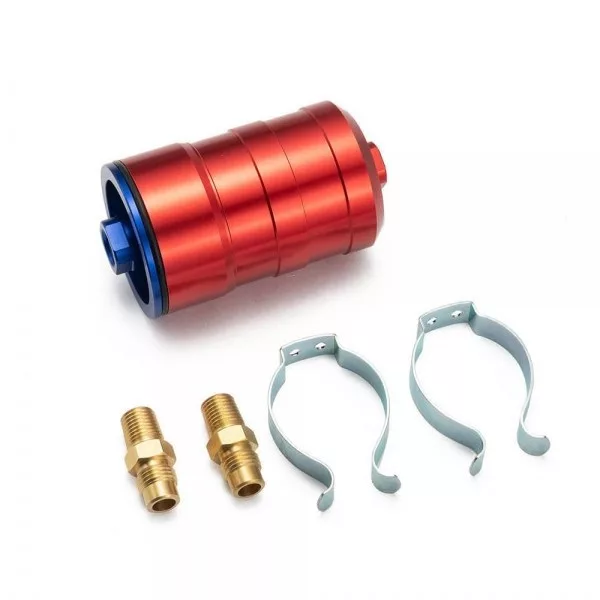

- Included: mounting brackets
Selection & installation tips
- Connection standard: confirm that both sides of the system require AN6 (-6 JIC) fittings.

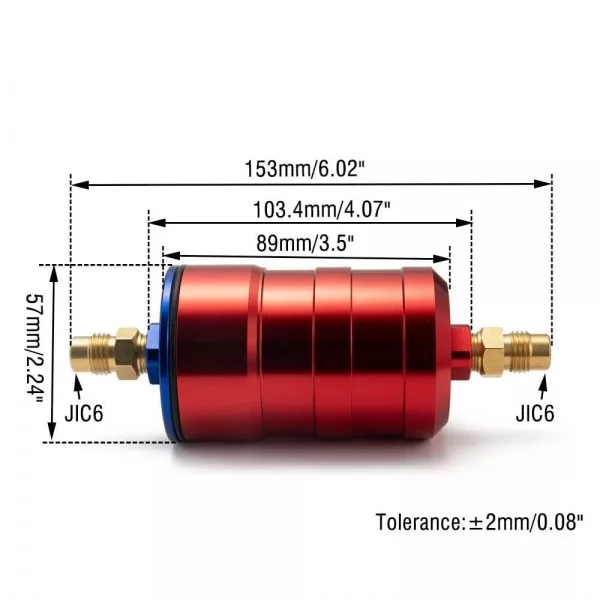

- Mounting space: compare the available installation space with the filter body and bracket layout.
- Filter spec: check that the Stainless Steel (55 Micron) filter suits the intended fuel system layout.
- System layout: decide in advance whether the filter will be installed before or after the pump and route the lines accordingly.
- Sealing check: inspect the joints and housing seal for leak-free assembly in the operating environment.
Before installation, verify the connection standard, available space, filter specification and system layout, then compare them with the listed technical details.
