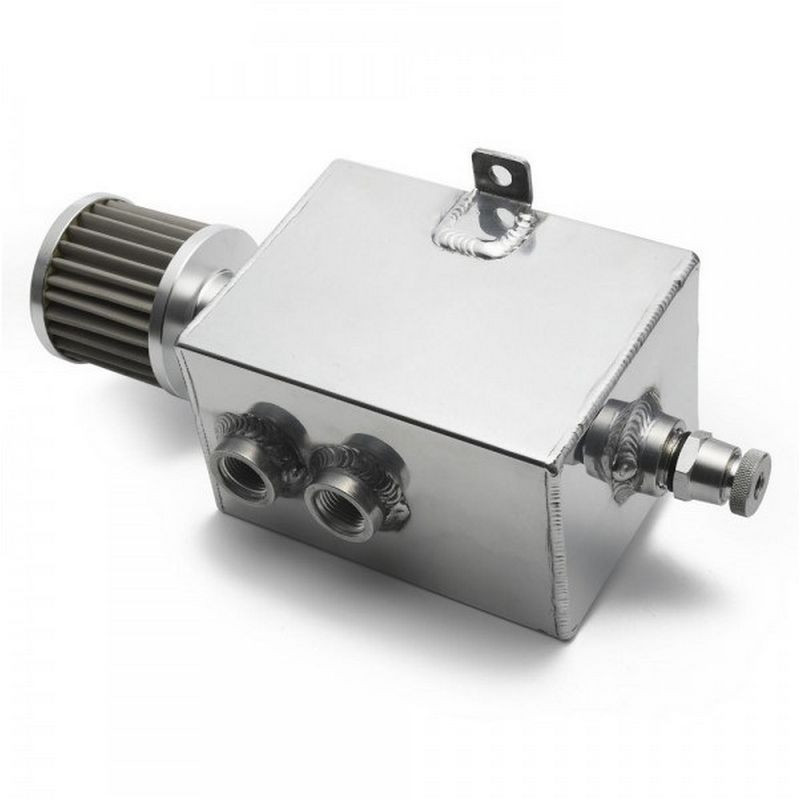

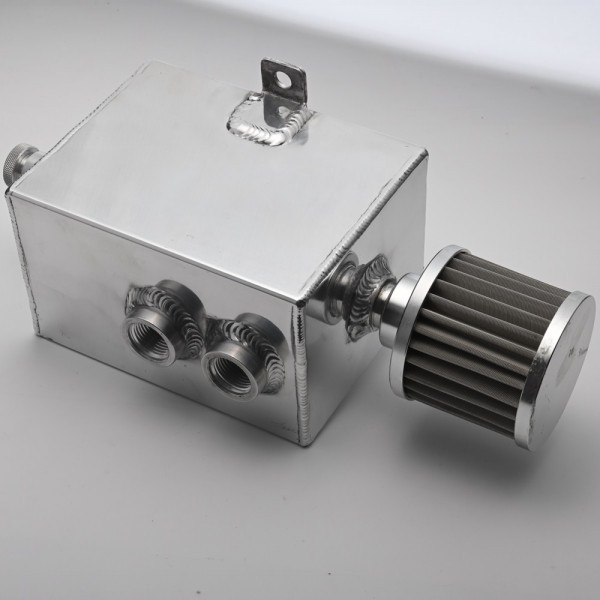

EPMAN Universal 2L Alloy Engine Oil Catch Tank with Filter and Drain Tap
EPMAN aluminum oil catch can with 2L capacity, supplied with a breather filter and drain tap. Features 3× female AN-10 ports and an AN-12 connection for the filter.
Net price: 41 €
Key Features & Benefits – EPMAN aluminum oil catch can 2L with filter and drain tap
EPMAN aluminum oil catch can 2L with filter and drain tap is an oil catch can designed to collect condensed residue from the crankcase ventilation flow. It is universal for crankcase ventilation setups on any engine.

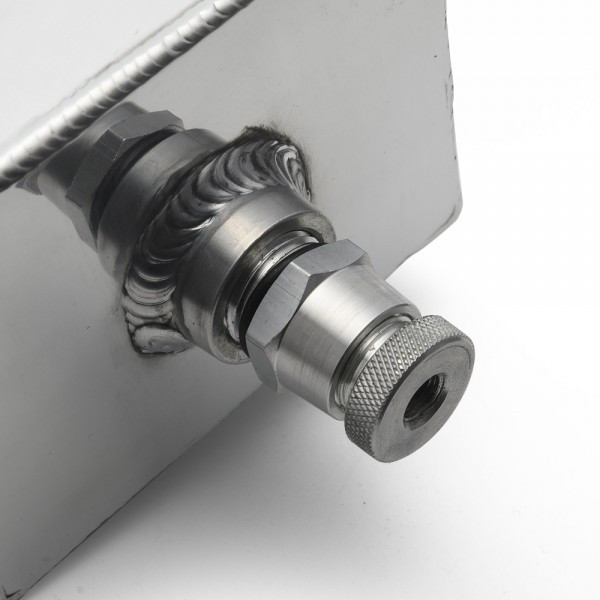

The setup includes a breather filter and a drain tap, and the port layout supports flexible plumbing choices. A mounting tab is integrated into the tank body for stable installation with good access to the drain.
When is this useful?
This is useful when you want to collect what condenses out of a crankcase vent line in a separate tank and empty it quickly via a drain tap. The top breather is a practical option when you want the system to vent through a dedicated filter.
Technical specs
- Brand: Epman
- Part number: EP-JYH092
- Material: aluminum
- Capacity: 2000ml (2L)

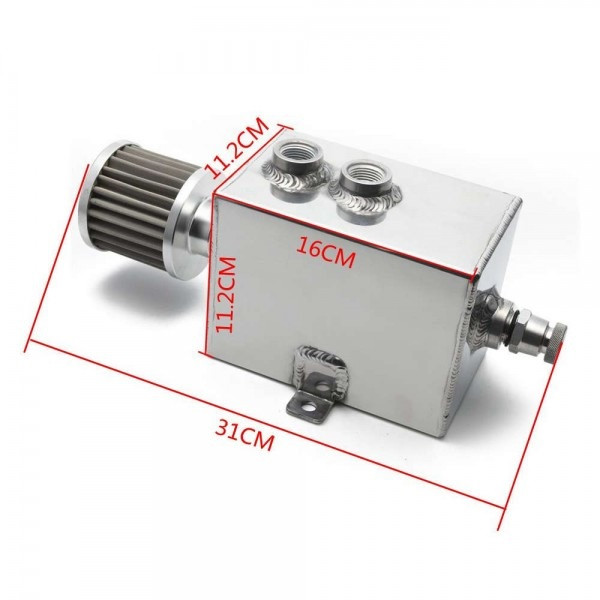

- Overall size (excluding filter): 160 × 112 × 112mm
- Overall length with filter: 310mm

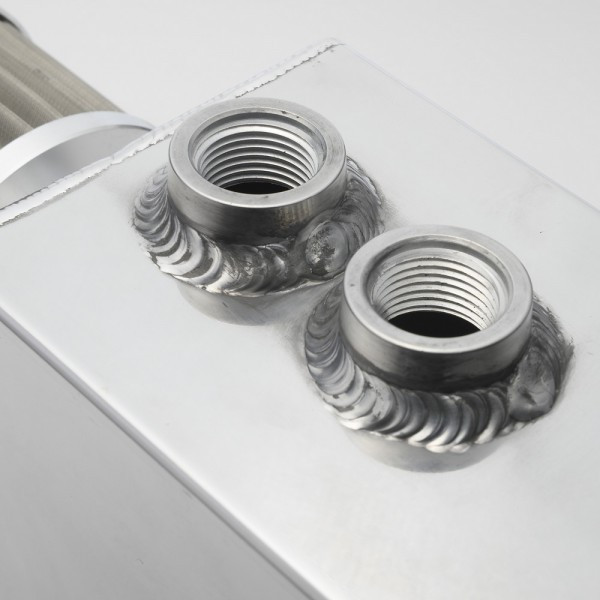

- Ports: 3× female AN-10 (one for the drain), 1× male AN-12 for the filter
Selection & installation tips
- Ports & fittings: confirm you have suitable fittings for the AN-10 ports and the AN-12 filter connection.
- Packaging: measure available space and account for the 160 × 112 × 112mm body plus the 310mm overall length.
- Hose routing: plan a kink-free route with sensible fall so condensate does not pool in the lines.
- Mounting: mount with vibration control and keep clearance from moving parts and high-heat areas.
- Service access: leave room to reach the drain tap and to remove/inspect the breather filter.
Before installation, match the port layout and overall dimensions to your plumbing plan, then re-check all joints and drain closure after fitting.
Net price: 41 €
