EPMAN Universal 1L Alloy Engine Oil Catch Tank with Filter and Drain Tap
EPMAN aluminum oil catch tank with 1L capacity, supplied with a breather filter and drain tap. Features AN-10 inlet/outlet ports and an AN-12 connection for the filter.
Net price: 33 €
Key Features & Benefits – EPMAN aluminum oil catch tank 1L with filter and drain tap

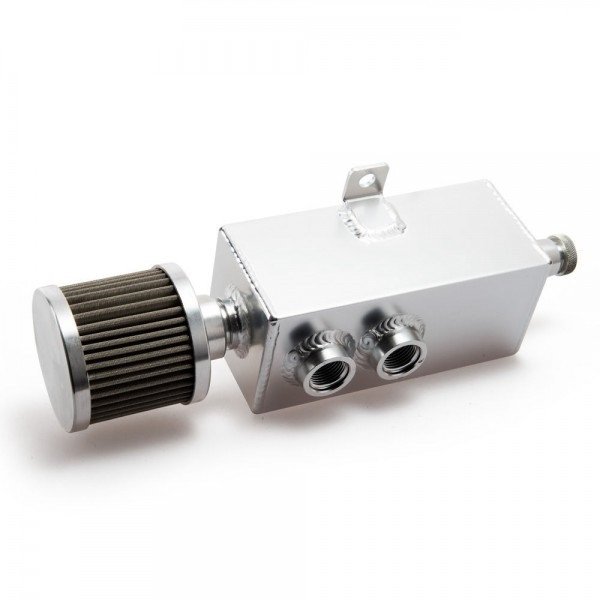

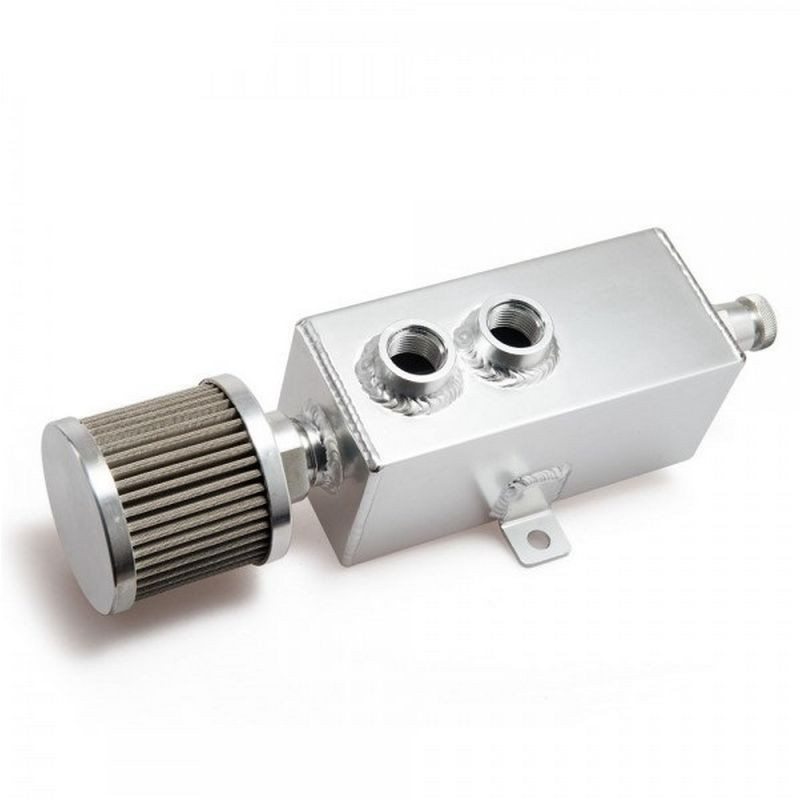

The EPMAN aluminum oil catch tank 1L with filter and drain tap is a compact oil catch tank designed to collect condensed residue from the crankcase ventilation flow. It is universal and can be used for any engine as a crankcase oil trap tank, and it can also be used as a coolant radiator overflow tank.

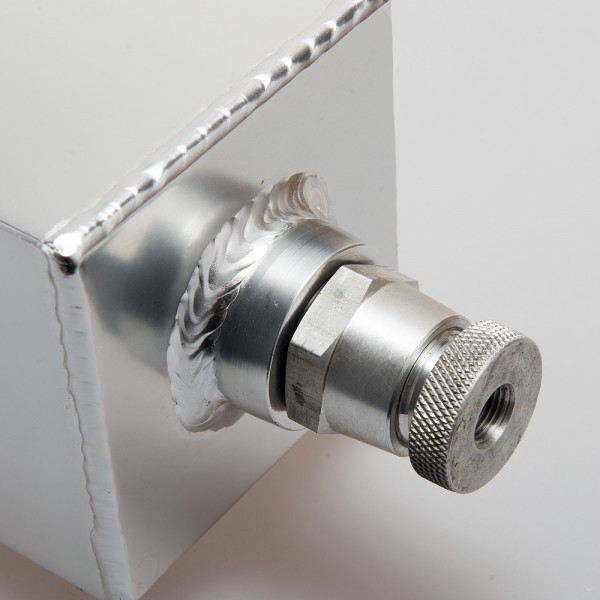

The design includes a drain tap and a top breather filter for straightforward servicing and placement. The package includes a 10mm pipe connector for rubber hose, and the port layout supports common plumbing setups.
When is this useful?
This is useful when you want to route a crankcase ventilation line into a separate tank and collect what condenses out of the vapor stream. With the breather filter and drain, routine emptying and visual checks are easier when the tank is mounted with good access.
Technical specs
- Brand: Epman
- Item number: EP-JYH09
- Material: aluminum
- Oil capacity: 1000ml (1L)

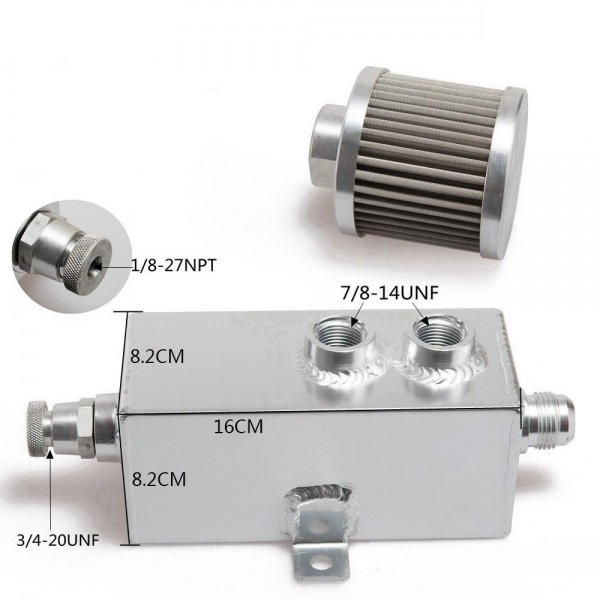

- Dimensions: height 160mm (excluding filter), width 82mm, depth 82mm
- Input / output ports: 3x female AN-10 (one is for the drain tap), 1x male AN-12 for the breather filter
- Included: 10mm rubber hose pipe connector
Selection & installation tips
- Ports & fittings: confirm your setup matches the AN-10 ports and the AN-12 filter connection.
- Hose size & connector: if you use rubber hose, plan around the included 10mm connector and verify clamp sizing.
- Placement: mount it so the tank and drain tap remain accessible, and avoid tight bends that could kink hoses.
- Mounting: use vibration-resistant fixing and ensure clearance from moving parts and high-heat areas.
- Maintenance access: choose a location where draining and checking the filter condition can be done routinely.
Before installation, compare the 160 × 82 × 82mm envelope, the port layout, and your hose/fitting requirements to your actual routing, then re-check all joints and the drain closure after fitting.
