Key Features & Benefits – EPMAN 3-port oil catch can with internal bronze filter, black

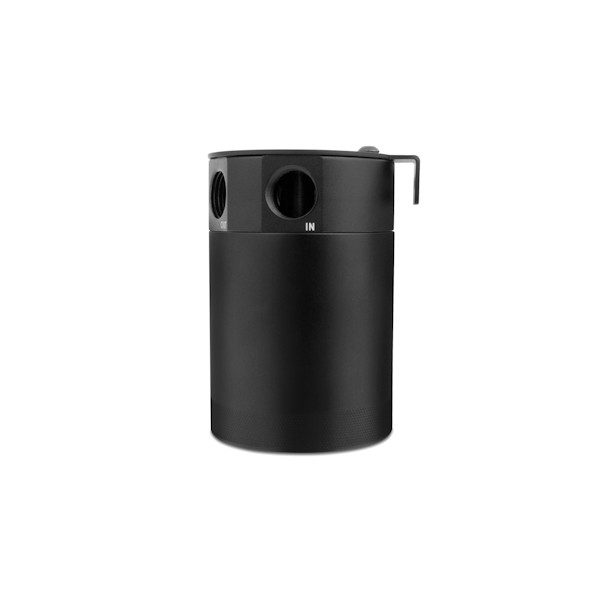

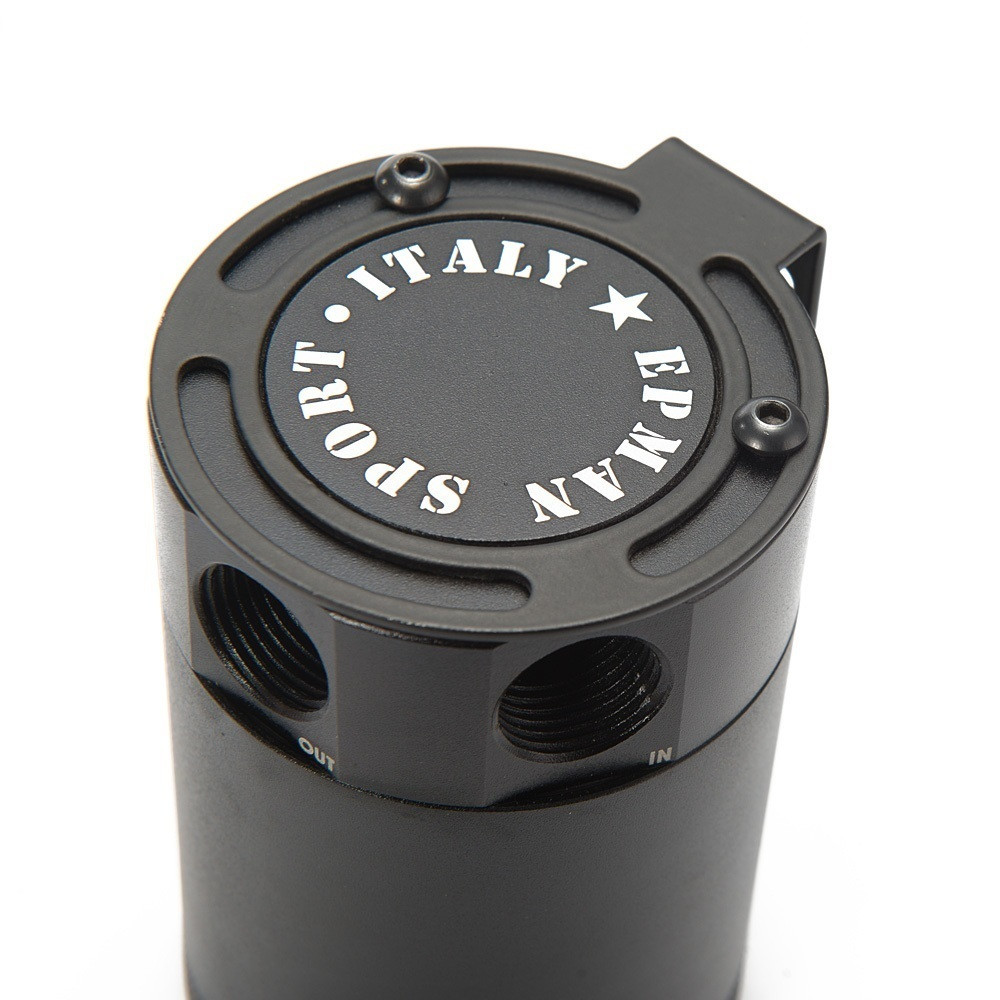

The EPMAN 3-port oil catch can with internal bronze filter, black is designed to be integrated into a crankcase/PCV hose setup, collecting separated oil vapour and condensate inside the can. The 3-port layout provides two inlets and one outlet to support common routing options.
It features a 6061 aluminium body and an internal bronze filter in a compact cylindrical form. Ports are 3/8" NPT, and oil capacity is 2 fl oz (0.59 dL / 59 mL).
When is this useful?
It’s useful when you want to reduce oil mist carry-over in intake-side plumbing and create a serviceable collection point for condensate from the crankcase ventilation system.
Technical specs
- Type: 3-port oil catch can
- Port layout: 2 inlets, 1 outlet
- Overall height: 3.8" (96.5 mm)
- Overall diameter: 2.5" (63.5 mm)
- Inlet/Outlet thread: 3/8" NPT
- Drain plug thread: 3/8" NPT
- Oil capacity: 2 fl oz (0.59 dL / 59 mL)
- Material: 6061 aluminium
- Filter: bronze filter

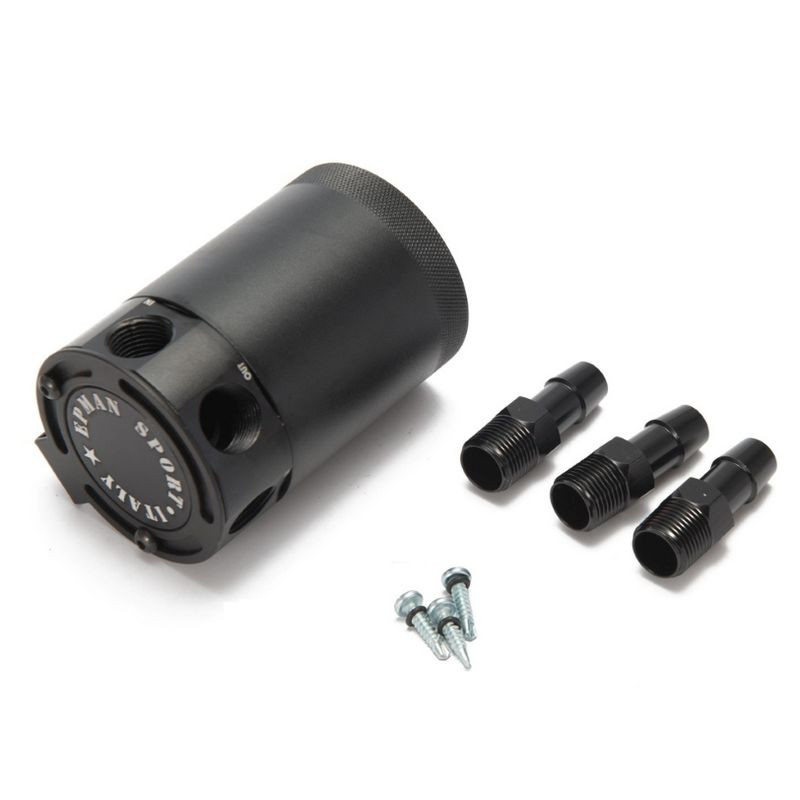

- Package includes: 1 pc aluminium oil catch can, necessary fittings as shown
Selection & installation tips
- Thread check: match the 3/8" NPT threads with the fittings and routing used in your setup.
- Port layout: plan the hose routing around the 2 inlets + 1 outlet configuration before mounting.
- Hose size: measure hose inner diameter and choose fittings and clamps that seal correctly.
- Mounting space: keep access for opening/draining and mount it securely to reduce vibration.
- Sealing check: after installation, check for leaks and clean the internal filter if deposits build up.
Before installation, verify clearance, port orientation, threads and hose size, then compare those requirements with the specs listed above and your own crankcase/PCV layout.
